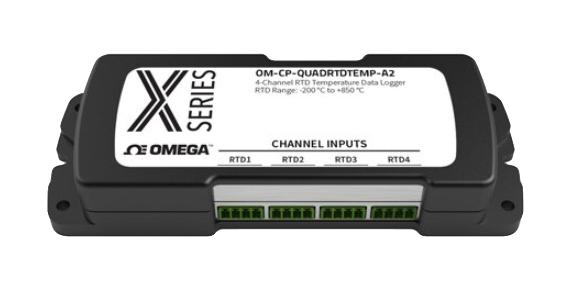

OMEGA OMCPQUADRTDTEMPA2 RTD Temperature Data Logger
The OM-CP-RTDTempX series is a four-channel RTD temperature data logger capable of recording data at rates up to 4Hz. It features high memory capacity and fast download speeds, with channels that can be enabled or disabled to optimize storage. Each channel can be named up to ten characters for easy identification. The device includes a USB-A to Micro USB cable for data transfer and ships with free OM-CP PC software for easy operation, including starting, stopping, and downloading data. It provides graphical, tabular, and statistical analyses in multiple units, with automatic export options to Excel. The temperature range varies from -200°C to +850°C (probe dependent), with a resolution of 0.001°C. The device offers an accuracy of ±0.04°C, real-time operation, and includes a NIST-traceable calibration certificate. Power options include external power or a user-replaceable 9V lithium battery, with an average battery life of 18 months. Its compact size is 2.70 x 7.25 x 1.22 inches, weighing 368g, and it is compatible with Windows XP SP3, 7, 8, and 10. Additional features include a pushbutton or programmable start, a temperature coefficient of 2ppm/°C, and a robust black anodized aluminum enclosure.
OMEGA OMCPQUADRTDTEMPA2 RTD Temperature Data Logger Specifications:
- Temperature Range: -200°C to +850°C (probe dependent)
- Resolution: 0.001°C
- Calibrated Accuracy: ±0.04°C
- Channels: 4, 8, 12, or 16 (adjustable enabled channels)
- Memory Capacity: 698,709 readings per channel (4-channel), scaled for higher channels
- Data Transfer: USB-A to Micro USB cable included
- Software: Omega OM-CP software version 4.2.19.0 or later
- Start Modes: Immediate or delay start, programmable up to 6 months
- Operating Temperature: -20°C to +60°C
- Size: 2.70 x 7.25 x 1.22 inches for 4-channel models
- Weight: 13 oz (368 g)
- Battery: 9 V lithium, 18 months typical life
- Certification: CE, RoHS
- Construction: Black anodized aluminum enclosure
Buy the Buy Omega RTD Temperature Data Logger Part Number OM-CP-X12RTDTEMP-A2 Online
Purchase the Omega RTD Temperature Data Logger OM-CP-X12RTDTEMP-A2 online to ensure accurate temperature tracking with up to 4Hz recording rate, high memory capacity, and robust metal enclosure. Designed for industrial and scientific environments, this device provides precise measurements from -200°C to +850°C, with NIST traceable calibration for reliability. It features customizable channel naming for easy identification, automatic data export, and compatibility with Windows systems. Order today for dependable temperature data logging in demanding conditions.
Get Omega OM-CP-X12RTDTEMP-A2 today—built for precision and long-lasting durability in temperature monitoring applications.
Frequently Asked Questions
Where can I buy OMEGA OMCPQUADRTDTEMPA2?
You can click on the BUY or RFQ button to purchase OMCPQUADRTDTEMPA2 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMCPQUADRTDTEMPA2?
You can download the OMCPQUADRTDTEMPA2 datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMCPQUADRTDTEMPA2?
OMEGA
