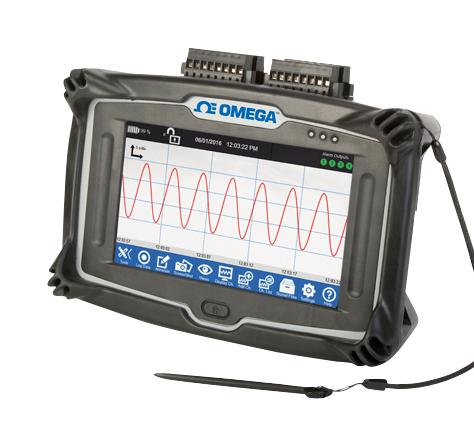

OMEGA OMDAQXL1NA Industrial Data Logger
This 8-channel touch screen data logger features a 7-inch TFT display, supporting USB host and device interfaces for PC communication and peripheral connectivity. It measures voltage, current, thermocouples, RTDs, thermistors, strain gauges, frequency, and pulse. Equipped with four alarm outputs and large data storage options—1GB internal memory, 32GB SD card, and 32GB USB drive—it can run on a rechargeable Lithium-ion battery or AC power. Housed in benchtop or wall mount enclosures with a protective rubber boot, it includes a comprehensive package of cables, thermocouples, and accessories for industrial data acquisition and remote monitoring.
OMEGA OMDAQXL1NA Industrial Data Logger Specifications:
- Screen: 7 inch, TFT, resistive touch with plastic stylus
- Analog Inputs: Thermocouple, thermistor, RTD, strain gauge, DC voltage, DC current
- Digital Inputs: 4 Schmitt trigger, 0-24 Vdc, logic thresholds at 1.5V & 2.5V
- Digital Outputs: 4 open collector, 5V @ 50 mA
- Alarm Outputs: 4 open collector, 30V @ 500 mA
- Input Range: Thermocouples from -200°C to 1760°C depending on type, RTDs up to 1760°C, voltage from -50V to 50V, current ±20mA
- Sampling Rate: Max 125 samples/sec per channel, depending on number of channels
- Memory: 1 GB internal, 32 GB SD card, 32 GB USB
- Power: Rechargeable 7.2V lithium-ion battery and 12VDC AC adapter
- Dimensions: 28.6 x 15.24 x 6.35 cm (11.25 x 6 x 2.5 inches)
- Weight: 1.13 kg (2.5 lbs)
- Protection: Rubber boot, wall mount keyhole
- Connectivity: USB host/device ports, compatible protocols OPC UA/DA, MQTT
- Temperature Range: 0°C to 50°C, 0-95% RH
Buy the Omega OM-DAQXL – Reliable Industrial Data Logger for Test and Measurement
Enhance your measurement capabilities with the Omega OM-DAQXL 8-channel touch screen data logger, featuring a 7-inch display, multi-sensor inputs, alarm outputs, and large memory options. Ideal for industrial, laboratory, and remote monitoring, it offers seamless connectivity with USB interfaces, supports protocols like OPC UA and MQTT, and operates on rechargeable battery or AC power. Its rugged enclosure, comprehensive accessory set, and easy-to-use touch interface make it perfect for reliable data collection and analysis in demanding environments. Purchase online today for efficient, high-precision monitoring.
Order your Omega OM-DAQXL series 8-channel touch screen data logger today and enhance your industrial data acquisition with reliable, versatile performance.
