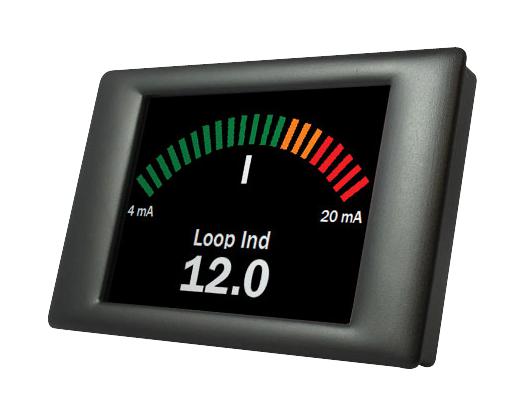

OMEGA OMSGD28M Industrial Graphics Display
The 2.8-inch smart graphics display offers high-resolution color TFT visuals, customizable configurations, and waterproof options for industrial monitoring. It supports voltage and current inputs, with simple USB-based software setup. Designed for reliable performance, it features alarm outputs, NEMA 6 IP67 waterproof casing, and flexible power supply from 4 to 30 Vdc. Ideal for temperature, voltage, and process monitoring applications, it provides quick, user-friendly configuration with over 40 display options, making it a versatile solution in industrial automation settings.
OMEGA OMSGD28M Industrial Graphics Display Specifications:
- Display: 2.8-inch color TFT, 320 x 240 pixels
- Input Types: Voltage (2 channels, adjustable ranges), 4-20 mA (single channel)
- Power Supply: 4 to 30 Vdc
- Input Voltage Ranges: 0 to 1.25 V, 0 to 2.5 V, 0 to 4 V, 0 to 5 V, 0 to 8 V, 0 to 10 V, 0 to 20 V, 0 to 40 V
- Current Input: 4 to 20 mA, 0 mA min, 50 mA max, Loop Voltage Drop: 0.4 to 2.0V
- Alarm Outputs: 2 open-collector, sink up to 10 mA
- Accuracy: 0.05% typical, 0.1% max
- Linearity: +1 count max
- Sample Rate: Up to 3 samples/sec
- Operating Temperature: 0 to 40°C
- Dimensions: Panel cut-out 87 x 54.5 mm, overall size approximately 92 x 62 mm
- Protection: Waterproof NEMA 6 (IP67)
- Connectivity: Screw terminal or NEMA 6 IP67 connector for waterproof models
Buy the Brand PartNumber – Reliable Graphics Display for Industrial Applications
Order the Omega OM-SGD-28-M industrial graphics display online today to benefit from its high-resolution color TFT screen, easy USB configuration, and waterproof design. This versatile device supports voltage and current inputs, offers multiple display configurations, and features alarm outputs, making it ideal for process monitoring and industrial automation. With quick setup and flexible mounting options, it ensures reliable and precise operation in diverse industrial environments. Purchase now for efficient, user-friendly control solutions.
Buy Omega OM-SGD-28-M now and enhance your industrial monitoring with high-performance, customizable, waterproof graphics display.
