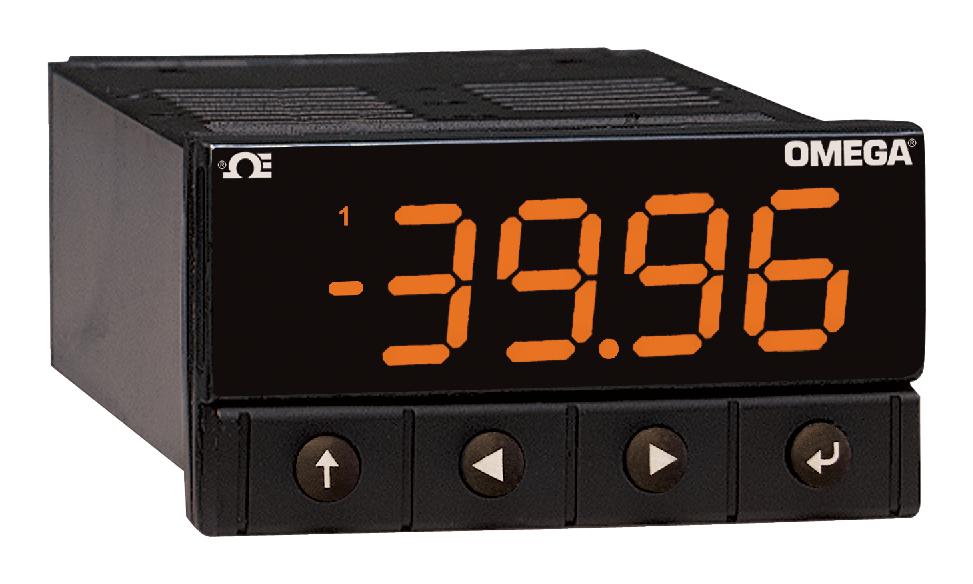

OMEGA CN16PT145 Process Controller
The CN16PT145 is a versatile process temperature controller featuring a bright, 3-color LED display with wide viewing angles, fully firmware configurable inputs including thermocouples, RTDs, thermistors, and analog signals. It supports up to 99 ramp/soak programs, auto-tune PID with fuzzy logic, multiple outputs such as relays, SSRs, and analog signals for precise process control. Designed for easy setup with smart menus, it offers remote setpoint, alarms, Ethernet, and serial communications, making it ideal for industrial, scientific, and laboratory applications with demanding accuracy and flexibility.
OMEGA CN16PT145 Process Controller Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Input Ranges: Thermocouple K, J, T, E, R, S, B, C, N; RTD 100/500/1000 Pt; Thermistor 2252 Q, 5K Q, 10K Q; Voltage -100 to 100 mV; Current 0-24 mA; Strain +50 mV, +100 mV
- Accuracy: 0.03% FS for voltage/current, 0.4°C for thermocouples, 0.2°C for thermistors, 1°C for RTDs, 0.4°C for others
- Display: 4-digit, 9-segment LED, 21 mm (0.83") front bezel
- Outputs: 2-6 programmable control/alarm/retransmission outputs including relay, SSR, DC pulse, analog voltage/current, isolated outputs
- Control: Auto-tune PID with fuzzy logic, ON/OFF, heat/cool, 16 ramp/soak segments, up to 99 programs
- Serial/Ethernet: USB, optional Ethernet (RJ45), RS232/RS485 with MODBUS®, TCP/IP, web server capability
- Power Supply: 90-240 Vac, optional 12-36 Vdc, CE, UL, cUL certified
- Dimensions: CN16PT145 48 H x 48 W x 127 mm D; Panel cutout 45 mm square; environmental conditions 0-50°C, 90% RH non-condensing
Buy the Buy Omega Process Controller Part Number CN16PT145 Online
Purchase your Omega Series CN16PT145 process controller online today to benefit from its advanced features, including versatile inputs, programmable ramp/soak programs, auto-tune PID, and multiple outputs. Its bright, wide-view LED display ensures clear visibility in industrial settings. The controller offers Ethernet and serial communication options for seamless integration into automation systems. Designed for quick setup with firmware recognition and smart menus, it is perfect for demanding laboratory, manufacturing, and process control applications. Experience dependable, precise temperature management with this cutting-edge device.
Order your Omega Series CN16PT145 process controller today and enhance your process management with reliable accuracy and versatile control features.
Frequently Asked Questions
Where can I buy OMEGA CN16PT145?
You can click on the BUY or RFQ button to purchase CN16PT145 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN16PT145?
You can download the CN16PT145 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN16PT145?
OMEGA
