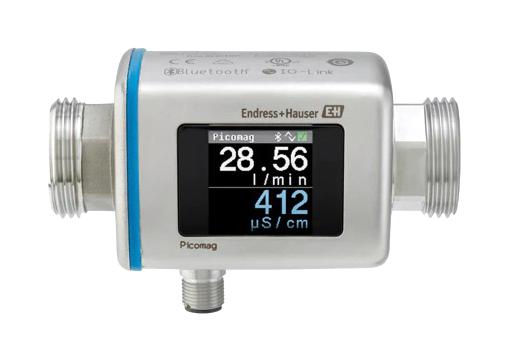

OMEGA DMA20AAAAA1 Electromagnetic Flowmeter
The Picomag is a compact, wireless electromagnetic flowmeter designed for measuring conductive liquids such as industrial water, cooling water, warm water, and rinsing water. Featuring Bluetooth connectivity and SmartBlue App operation on Android and iOS devices, it offers easy, intuitive commissioning, diagnostics, and data access. With seamless integration into fieldbus systems via IO-Link, high shock and vibration resistance, and IP65/67 protection, it ensures reliable, precise flow, temperature, and conductivity measurements even in difficult-to-access locations, optimizing industrial process control and monitoring.
OMEGA DMA20AAAAA1 Electromagnetic Flowmeter Specifications:
- Measuring principle: Electromagnetic flow measurement
- Fluid conductivity range: ≥ 210 pS/cm
- Display: 1.4" TFT color, auto-rotatable
- Operation: Bluetooth via SmartBlue App, IO-Link
- Housing material: 1.4404/316L, 1.4409/CF3M
- Process connection: G'/2", G34", G1", G2" (standard), optional adapters for NPT, Tri-clamp, Victaulic
- Electrodes: 1.4435/316L
- Seals: FKM
- Power supply: DC 18 to 30 V
- Process temperature: -10°C to +70°C, temporarily up to +85°C
- Degree of protection: IP65/67
- In-/outputs: 2 freely configurable (4-20 mA, pulse, voltage, IO-Link, inputs)
- Communication: Bluetooth, IO-Link
- Nominal diameter: DN 15 (%"), DN 20 ("), DN 25 ('), DN 50 (")
- Measuring range: 0.05 to 25 I/min (DN 15), 0.1 to 50 I/min (DN 20), 0.2 to 100 I/min (DN 25), 1.5 to 750 I/min (DN 50)
- Process pressure: 16 bar (232 psi)
- Max. error: ±0.8% o.r. + 0.2% o.f.s. for flow
- Repeatability: ±0.2% o.f.s.
- Approvals: UL listed, EU and IEC EMC compliant
Buy the Endress+Hauser DMA20AAAAA1 – Reliable Electromagnetic Flowmeter for Industrial Applications
Purchase the Endress+Hauser DMA20AAAAA1 electromagnetic flowmeter online today to streamline your process monitoring. Its compact design, Bluetooth connectivity, easy installation, and high accuracy make it ideal for industrial water, cooling, and rinsing applications. Ensure reliable, precise flow, temperature, and conductivity measurements even in challenging environments. With seamless integration into your control system via IO-Link and fieldbus protocols, this robust device improves process efficiency and compliance. Get your flowmeter now for dependable industrial liquid measurement and process optimization.
Order your Endress+Hauser DMA20AAAAA1 today and enhance your industrial water monitoring with this reliable, wireless flow measurement device.
