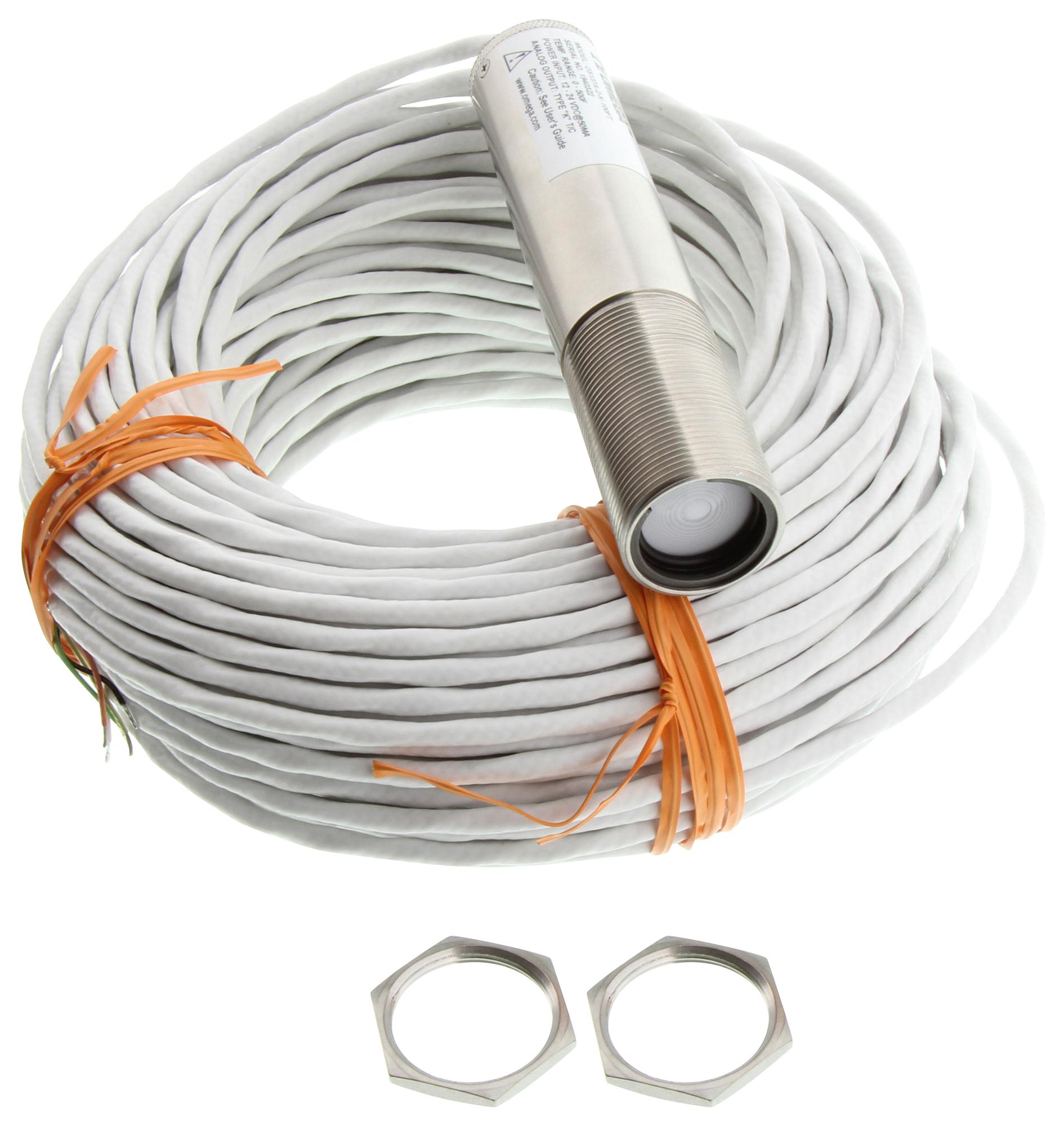

OMEGA OS137A2K100FT Infrared Temperature Sensor
The Omega infrared temperature sensor and transmitter model OS137A-2 offers a compact stainless steel housing with a 10:1 optical field of view, adjustable emissivity, and multiple output options including 4-20 mA, 0-5 Vdc, and 0-10 Vdc. Designed for precise non-contact temperature measurement, it covers a range from -18°C to 260°C (0 to 500°F). Features include adjustable alarm setpoints, rugged NEMA 4 (IP65) enclosure, and a spectral response of 5.5 to 14 microns. Suitable for industrial applications requiring accurate thermal readings in challenging environments.
OMEGA OS137A2K100FT Infrared Temperature Sensor Specifications:
- Temperature Range: -18 to 260°C (0 to 500°F)
- Accuracy: 3% of Rdg or 4.4°C (8°F)
- Repeatability: 1% rdg or 2°F (1°C)
- Field of View: 10 to 1
- Spectral Response: 5.5 to 14 microns
- Emissivity: 0.5 to 1.0, adjustable via a single turn pot
- Response Time: 150 ms
- Outputs: 4-20 mA, 0-5 Vdc, 0-10 Vdc, and K thermocouple options
- Power Supply: 12 to 24 Vdc @ 50 mA
- Housing: Stainless steel, NEMA 4 (IP65) rated
- Dimensions: 25.4 mm OD x 127 mm L
- Operating Temperature: 0 to 70°C without cooling, up to 110°C with air cooling
- Weight: 226 g
- Laser Sighting: Red laser, wavelength 630-670 nm, operating distance up to 9.1 m
Buy the Omega Series Infrared Temperature Sensor: OS137A2K100FT
Order the Omega infrared temperature sensor OS137A2K100FT online today for reliable non-contact temperature monitoring. With adjustable emissivity, multiple output options, and a robust stainless steel housing, this compact device is ideal for industrial applications. It measures temperatures from -18°C to 260°C with an accuracy of 3% or 4.4°C and features a 10:1 optical field of view. Easy to install and integrate with controllers or data loggers, making your temperature measurement tasks efficient and precise.
Get Omega OS137A2K100FT infrared temperature sensor today—built for precision and long-lasting durability in industrial environments.
