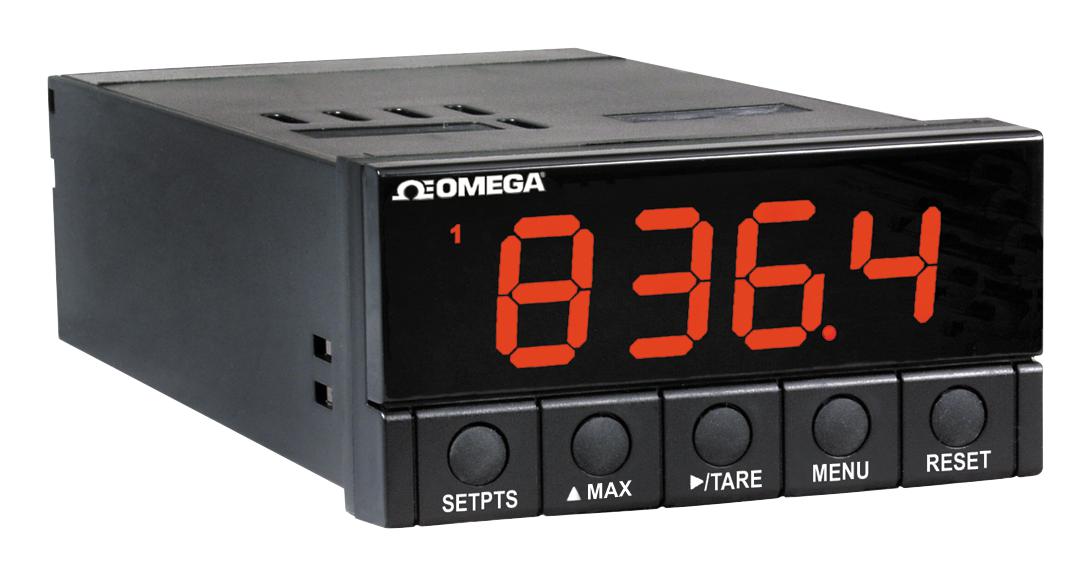

OMEGA DP25BE Process Meter
The DP25B Series is a versatile digital process meter and controller with a bright 4-digit display, supporting thermocouple, RTD, process voltage, and current inputs. It features programmable display colors—red, amber, or green—and offers dual analog outputs for retransmission or proportional control. Optional relays provide active alarms, with adjustable hysteresis and high switching capacity. Its scalable inputs and outputs, coupled with front-panel scaling, tare functions, and lockout options, make it ideal for precise industrial measurement and control applications. Compact design with IP65/IP66 front bezel ensures durability in harsh environments.
OMEGA DP25BE Process Meter Specifications:
- Display: 4-digit, 21 mm (0.83") LED in red, amber, or green, programmable
- Analog-to-Digital Technique: Dual slope
- Internal Resolution: 15 bit
- Polarity: Automatic
- Read Rate: 3/second
- Step Response: 2 seconds
- Relay Outputs: 2 Form "C" relays, rated 5 A 250 Vac, programmable for alarms
- Analog Output: 0 to 10 V, 4 to 20 mA, or 0 to 20 mA, scalable or control output
- Power Options: 115 Vac or 230 Vac +10%, 10–32 Vdc, 26–56 Vdc, max 8 W
- Thermocouple Models: J, K, T, J DIN, with temperature ranges up to 1372°C for K thermocouples
- RTD Model: 100 Ω Pt, -200 to 850°C, accuracy ±0.50°C
- Inputs: Thermocouple, RTD, process voltage/current, strain gage
- Dimensions: 48 mm H x 96 mm W x 152 mm D
- Panel Cutout: 45 mm H x 92 mm W
- Operating Temp: 0 to 50°C, Storage: -40 to 85°C
- Humidity: 90% non-condensing at 40°C
Buy the Omega DP25B – Reliable Process Meter for Industrial Applications
Order the Omega DP25B process meters online today and enhance your industrial measurement and control systems. Featuring a bright 4-digit display, multiple input types including thermocouple, RTD, voltage, and current, as well as optional relays and analog outputs, these meters are ideal for demanding environments. Their programmable display, secure lockout, peak detection, and remote tare functions ensure precise, reliable operation. Easy to install and operate, the DP25B series provides scalable inputs and outputs suitable for various industrial applications, improving efficiency and process accuracy.
Buy Omega DP25B process meters now and experience unmatched reliability, precise measurement, and versatile control for industrial environments.
Frequently Asked Questions
Where can I buy OMEGA DP25BE?
You can click on the BUY or RFQ button to purchase DP25BE from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP25BE?
You can download the DP25BE datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP25BE?
OMEGA
