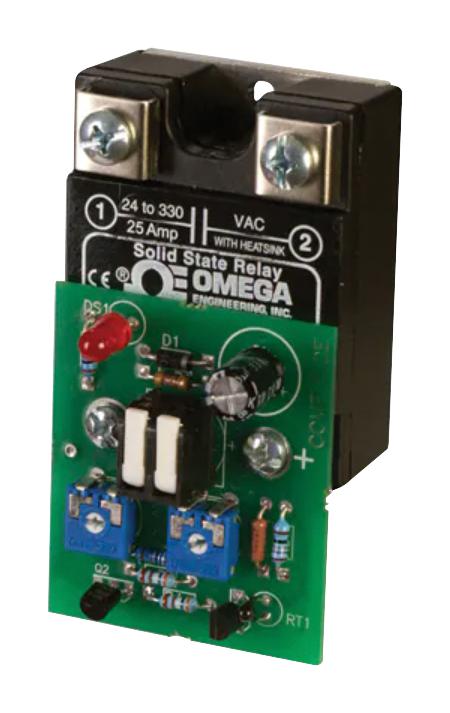

OMEGA PCM5 Pulse Control Module
The PCM5 Pulse Control Module converts 4 to 20 mA signals from process controllers or thermometers into time-proportional outputs for solid-state relays, supporting single-phase power with 50 or 60 Hz operation. It mounts directly on a 3 to 32 Vdc input SSR, tolerates inputs below 4 mA, and includes lever clamps for secure connection. Its power section facilitates easy line and load connections, making it ideal for controlling heating or cooling systems in industrial applications. Compact and robust, the module operates within 0 to 40°C ambient temperature, ensuring reliable performance.
OMEGA PCM5 Pulse Control Module Specifications:
- Analog Input Signal: 4 to 20 mA, minimal; 0 to 30 mA permissible; reverse polarity protected; no abnormal operation below 4 mA
- Compliance Voltage Requirement: 6.4V
- Time Base: ~200 mS at 50%, ~500 mS towards 0 and 100%
- Ambient Temperature: 0 to 40°C (32 to 104°F)
- Dimensions: 45 mm length x 51 mm width x 20 mm depth (1.75 x 2.0 x 0.80 inches)
- Supports Single Phase 50 or 60 Hz Operation
- Mounts directly on SSR input terminals with lever clamps
- Supports inputs less than 4 mA without malfunction
- Power Section supports line and load connection
- Compatible with single phase control systems in industrial automation
Buy the Buy Omega Pulse Control Module Part Number PCM5 Online
Order the Omega PCM5 Pulse Control Module online to efficiently convert 4 to 20 mA signals into time-proportional outputs for industrial process control. The module supports single-phase operation at 50 or 60 Hz, mounts directly on SSRs, and tolerates inputs below 4 mA, ensuring robust performance in temperature and process automation. Compact and easy to install, it features a clear manual for proper setup, enabling seamless integration into existing systems for precise control of heating or cooling applications.
Get Omega PCM5 today—built for precise and reliable power signal conversion in industrial automation.
Frequently Asked Questions
Where can I buy OMEGA PCM5?
You can click on the BUY or RFQ button to purchase PCM5 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PCM5?
You can download the PCM5 datasheet or visit the OMEGA website for support.
Who is the manufacturer of PCM5?
OMEGA
