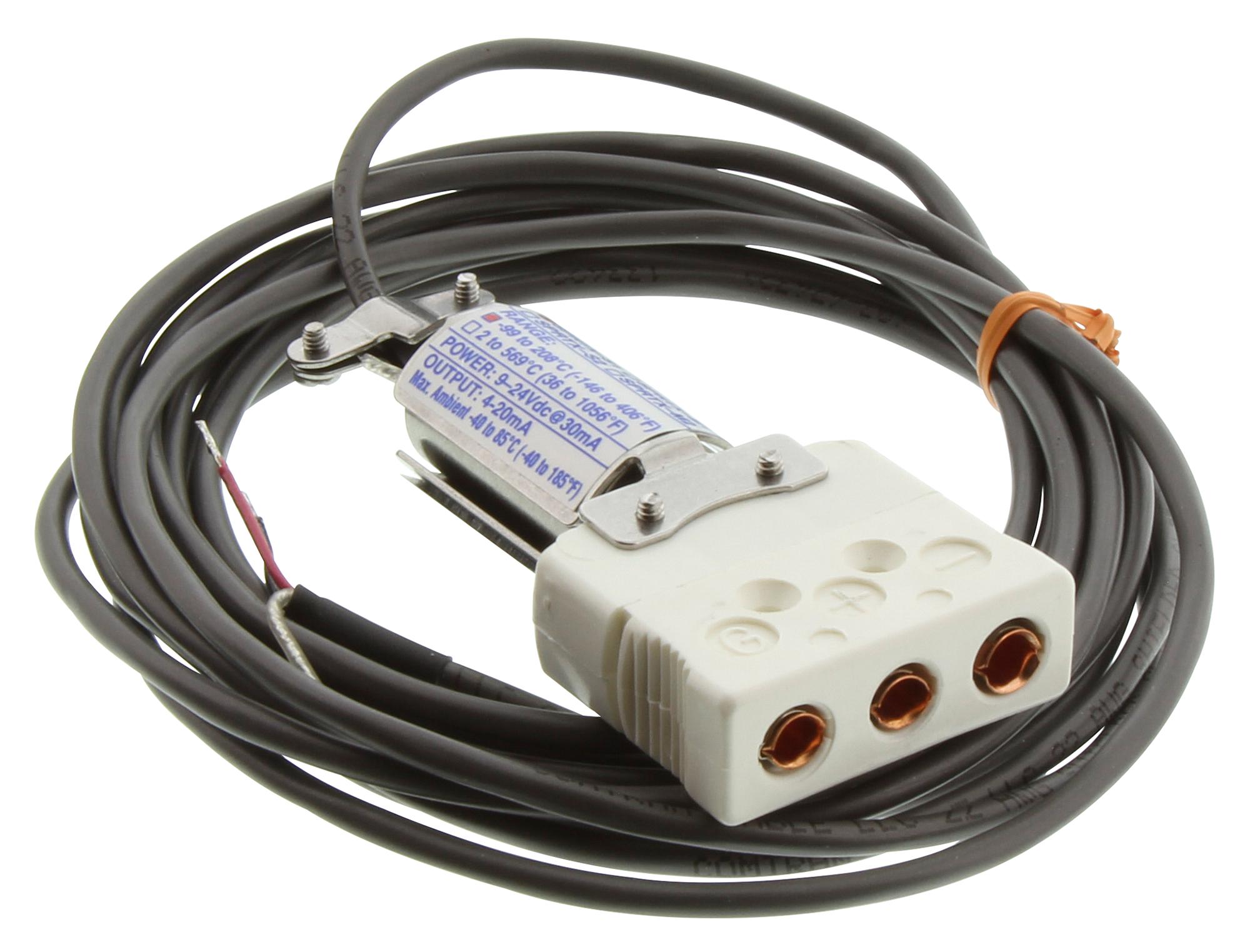

OMEGA SPRTXS1 RTD and Thermocouple Connector-Transmitter
The RTD connector-transmitter provides an accurate, factory-calibrated signal conversion for 100 Q, 0.00385 RTDs or J, K, or T thermocouples, featuring encapsulated electronics, dual locking clips, and a 2-wire, 4-20 mA output. Suitable for industrial environments, it compensates for long lead wires, offers open sensor wire indication, and operates from 9 to 24 Vdc. Complete with a connector, built-in transmitter, and 3 meters of shielded cable, it's ideal for precise temperature measurement and monitoring in automation systems.
OMEGA SPRTXS1 RTD and Thermocouple Connector-Transmitter Specifications:
- Supply Voltage: 9 to 24 Vdc @ 30 mA
- Output: Linearized 4 to 20 mA
- Accuracy: +0.5% of full scale @ 23°C
- Repeatability: +0.25°C
- Temperature Effect: +0.0022 mA/°C
- Max Load Resistance: (Vsupply — 9V)/0.02 A
- Operating Temperature: -40 to 85°C
- Input Lead Resistance: Max 50 V
- Dimensions: 24H x 18W x 79 mm (M Series); 36H x 18W x 83 mm (S Series)
- Connector: 3-prong miniature or standard size
- Protection: Encapsulated electronics, durable housing
- Approval: CE marked
- Includes: Fully assembled with connector, built-in transmitter, and 3 meters shielded cable
Buy the Omega Series SPRTX RTD Connector Transmitter: SPRTXS1
Order the Omega RTD and thermocouple connector-transmitter online today to ensure accurate temperature monitoring in industrial applications. Featuring factory calibration, encapsulated electronics, dual locking clips, and a robust design, this device offers reliable 4-20 mA output for precise signal transmission. It supports various temperature ranges and sensor types, providing long-term stability and easy integration into automation systems. Complete with cable and connector, it’s designed for demanding environments requiring dependable performance and easy installation. Don’t miss the opportunity to enhance your temperature measurement setup now.
Get Omega SPRTXS1 today—built for precision temperature measurement and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA SPRTXS1?
You can click on the BUY or RFQ button to purchase SPRTXS1 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SPRTXS1?
You can download the SPRTXS1 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SPRTXS1?
OMEGA
