OMEGA PLMLV050210 Polyimide Flexible Heater

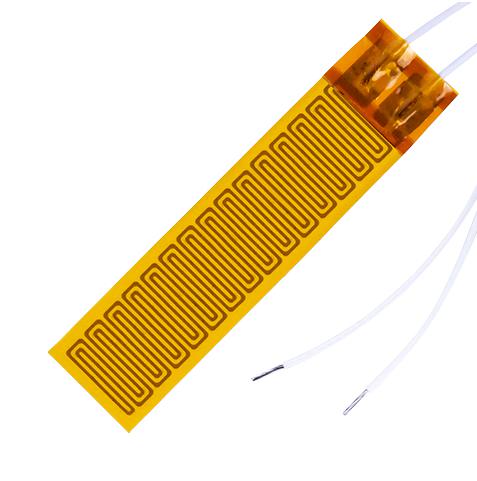

The PLMLV050210 is a low-voltage polyimide flexible heater designed for reliable heating in various industrial and scientific applications. Capable of operating at 28 V and offering a power density of 5 W/in², it features a flexible, chemically resistant polyimide insulation that conforms to curved surfaces. The heater includes PTFE-insulated leads and optional pressure-sensitive adhesive for secure attachment. Its compact size and high dielectric strength make it suitable for precise temperature control in demanding environments.
OMEGA PLMLV050210 Polyimide Flexible Heater Specifications:
- Operating Temperature: -57 to 232°C (-71 to 450°F) without adhesive, -40 to 149°C (-40 to 300°F) with adhesive
- Maximum Thickness: .01 inches
- Watt Density: 5 W/in²
- Leads: 22 AWG, PTFE Insulated, 12 inches +0.4 inch length
- Dielectric Strength: 1250 VAC
- Minimum Bending Radius: 0.032 inches
- Maximum Operating Voltage: 28 V
- Model Width: 2 inches
- Model Length: 4 inches
- Power: 5 W/in²
- Adhesive Option: Optional pressure-sensitive adhesive
- Certifications: UL compliant
- Application: Suitable for localized heating, surface heating, and industrial processes
Buy the Cz OMEGA PLM – Reliable Polyimide Flexible Heaters for Industrial Applications
Purchase the Cz OMEGA PLMLV050210 low-voltage polyimide flexible heater online today to ensure precise temperature control and reliable heating performance in your industrial applications. Its flexible design, optional adhesive, and high dielectric strength make installation easy and efficient. Perfect for localized heating on curved surfaces, this heater offers durability and chemical resistance, fitting a variety of demanding environments. Order now and benefit from fast delivery and expert support for your heating needs.
Buy Cz OMEGA PLMLV050210 now and experience unmatched reliability and performance with flexible, high-temperature heating solutions.
Frequently Asked Questions
Where can I buy OMEGA PLMLV050210?
You can click on the BUY or RFQ button to purchase PLMLV050210 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PLMLV050210?
You can download the PLMLV050210 datasheet or visit the OMEGA website for support.
Who is the manufacturer of PLMLV050210?
OMEGA
