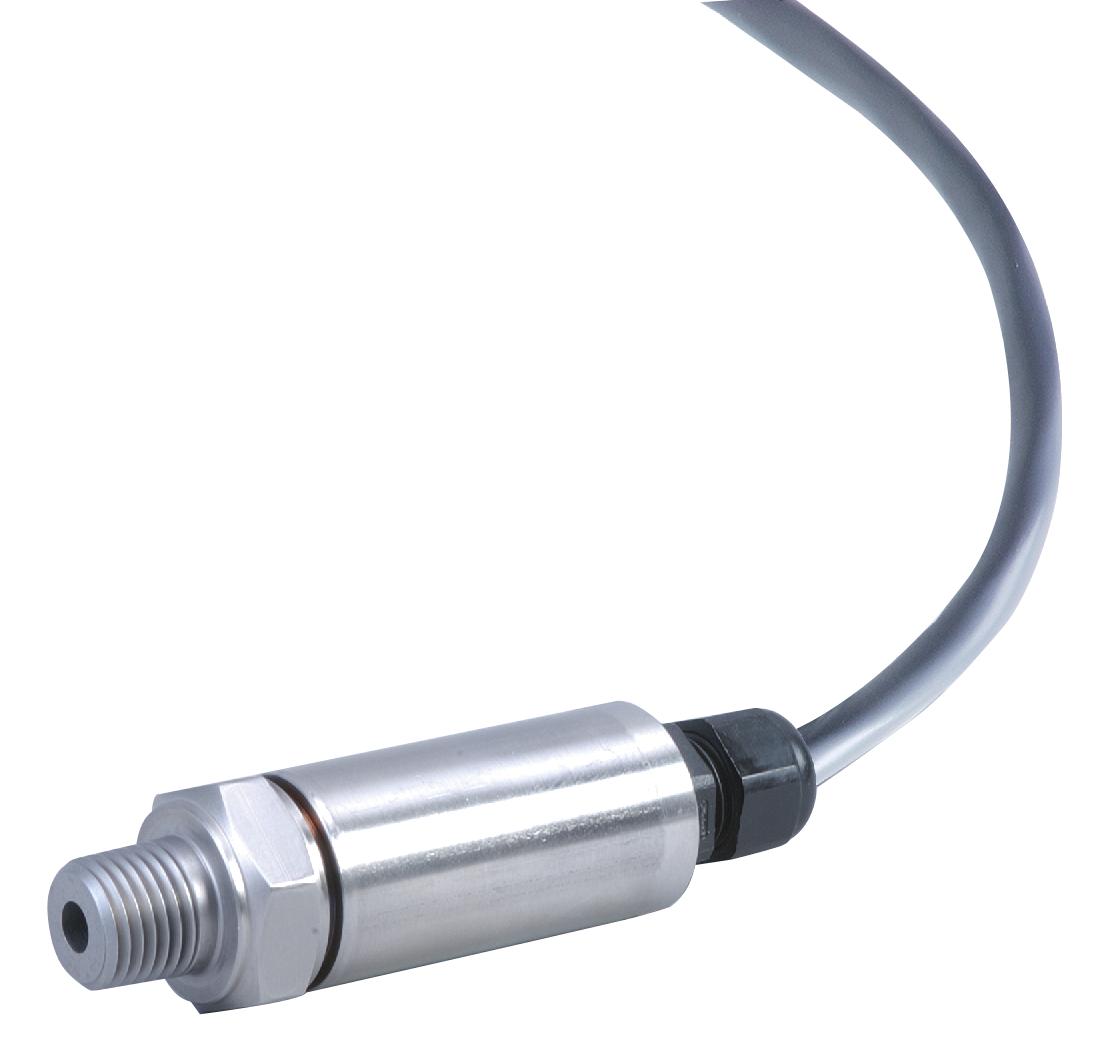

OMEGA PX309200GI Pressure Transducer
The PX309-200GI from Omega is a high-precision gauge pressure transducer designed for accurate pressure measurement in industrial applications. Constructed entirely from stainless steel, it features advanced silicon technology, offering ±0.25% full-scale span accuracy at 25°C and excellent stability with low drift. The device operates with an excitation voltage of 9 to 30VDC, with reverse polarity and overvoltage protection, and provides a 4 to 20mA output signal. It has a pressure range from 0 to 200 psi, withstands shocks up to 50g, and vibrations of ±20g. With a long cycle life of 10 million cycles and a temperature range from -40°C to 85°C, it is ideal for demanding sensing and instrumentation tasks. The waterproof IP65 enclosure ensures protection from harsh environments, and the device includes a 1.5-meter cable and NIST calibration certificate for accuracy verification. Its rugged stainless steel design assures durability and reliability in industrial environments.
OMEGA PX309200GI Pressure Transducer Specifications:
- Construction: All stainless steel
- Pressure Range: 0 to 200 psi
- Accuracy: ±0.25% full-scale span at 25°C
- Output: 4 to 20mA
- Excitation Voltage: 9-30 VDC, reverse polarity and overvoltage protected
- Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Shock Resistance: Up to 50g at 11ms
- Vibration Resistance: ±20g
- Cycle Life: Approximately 10 million cycles
- Enclosure: IP65 protective stainless steel
- Weight: Approximately 155 g (5.4 oz)
- Cable: 1.5-meter twin-conductor cable
- Calibration: Comes with 5-point NIST-traceable calibration
Buy the Buy Omega Pressure Transducer Part Number PX309200GI Online
Experience precision and durability with Omega’s PX309-200GI stainless steel pressure transducer. Featuring advanced silicon technology, it provides ±0.25% accuracy over a range of 0 to 200 psi, suitable for demanding industrial environments. Its IP65 enclosure protects against dust and water ingress, ensuring long-term reliability. The device offers a 4 to 20mA output with a 9 to 30V DC power supply, and includes a 5-point NIST calibration certificate. An ideal choice for sensing, instrumentation, and process control applications requiring robustness and accuracy.
Buy Omega PX309200GI now and ensure reliable, high-precision pressure measurement with durable stainless steel construction and long-term stability.
