OMEGA KHLVA2022P Polyimide Heater
Polyimide film insulated heaters offer high flexibility and chemical resistance, designed for precise temperature control up to 150°C. These heaters feature etched foil design, maximum thickness of 0.010 inches, and operate at 2.5, 5, or 10 W/in? watt densities. Suitable for circular, rectangular, or custom shapes, they are available with optional pressure-sensitive adhesive (PSA) for easy application. Ideal for industrial heating processes, they include UL 180 PTFE insulated wires, a dielectric strength of 1250 Vac, and custom options for size and wattage. They are durable, easy to install, and suitable for a broad range of manufacturing and laboratory applications.
OMEGA KHLVA2022P Polyimide Heater Specifications:
- Material: Polyimide film with etched foil resistive element, Inconel 600 foil
- Maximum Thickness: 0.010 inches
- Operating Temperature: -57°C to 150°C without PSA, -40°C to 149°C with PSA
- Dielectric Strength: 1250 Vac for 1 sec
- Watt Density: 2.5, 5, or 10 W/in?
- Wire: UL 1180 stranded, PTFE insulated, AWG 22
- Minimum Bending Radius: 0.032 inches
- Wattage options available for different sizes, e.g., 5, 10, 20, 40 W in?, depending on model
- Dimensions vary from 0.5 inches (1.27 cm) to over 12 inches (30.48 cm), customizable length and width
- Application: Industrial, laboratory, or custom heating requirements with high chemical resistance

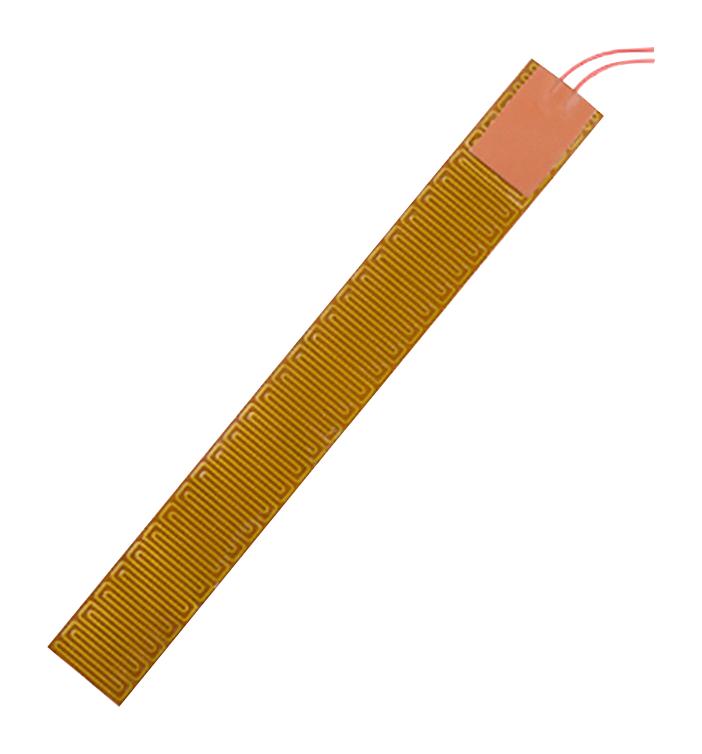

Buy the Omega Series KHLVA Polyimide Film Heater: KHLVA2022P
Experience the high flexibility and chemical resistance of the Omega Polyimide Heater, engineered for precise temperature control up to 150°C. Available in multiple sizes and watt densities, these heaters feature etched foil design and optional pressure-sensitive adhesive for easy installation. Compatible with industrial and laboratory environments, they include UL 180 PTFE-insulated wires and a dielectric strength of 1250 Vac for durability and safety. Order online today to enhance your process with reliable, customizable heating solutions that ensure consistent performance and longevity.
Get Omega KHLVA2022P today—built for precision and long-lasting durability in industrial heating applications.
