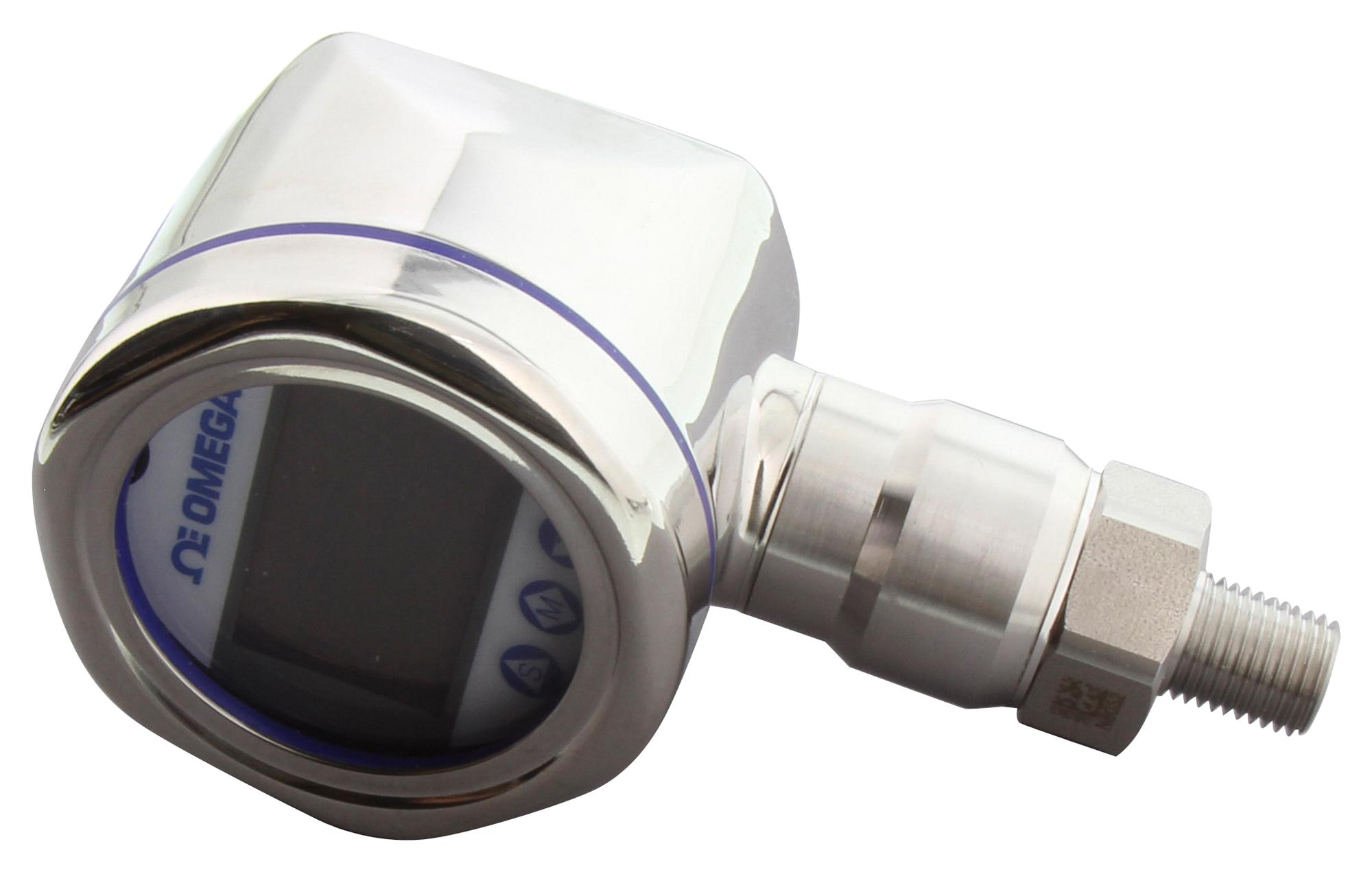

OMEGA PX3005005GI Pressure Transmitter
The OMEGA PX3005 series pressure transmitters are compact, reliable industrial sensors designed for precise pressure measurement across various applications. Utilizing MEMs piezoresistive sensors, these transmitters provide high accuracy within ±0.2% of URL, and feature IP67 stainless steel enclosures suitable for washdown environments. With adjustable zero and span from -100% to 100% FS, they support ranges from 1 psi to 15,000 psi and display in 19 units. Ideal for process automation, hydraulic systems, and tank monitoring, their robust design ensures dependable performance in challenging conditions.
OMEGA PX3005005GI Pressure Transmitter Specifications:
- Accuracy: ±0.2% URL
- Environmental Rating: IP67
- Wetted Material: 316 stainless steel
- Display: 5-digit backlit LCD
- Power Supply: 10.5 to 55VDC
- Output Signal: 4-20mA two-wire
- Temperature Range: -20°C to 70°C operating, -40°C to 85°C storage
- Media Compatibility: Fluids and gases compatible with 316 SS and FKM
- Process Connection: 1/4"-18NPT (M)/316 SS
- Power Consumption: Approximately 500mW
- Vibration Resistance: 20g (5-2000Hz), IEC standard
- Dimensions & Mounting: Compact size, suitable for industrial panels
Buy the Buy OMEGA Pressure Transmitter Part Number PX3005-005GI Online
Secure your industrial pressure measurement solution by ordering the OMEGA PX3005 series pressure transmitter online today. Designed for high accuracy, durability, and versatile range options, this device features a rugged stainless steel enclosure rated IP67 for washdown environments. With a crisp backlit LCD, multi-unit display, and adjustable zero/span, it provides precise pressure readings from 1 to 15,000 psi. Upgrade your process automation, hydraulic systems, or tank monitoring with this reliable, compact, and easy-to-configure sensor, available now for quick online purchase.
Order your OMEGA PX3005-005GI pressure transmitter today and ensure precise, reliable pressure monitoring in your hydraulic or process systems.
Frequently Asked Questions
Where can I buy OMEGA PX3005005GI?
You can click on the BUY or RFQ button to purchase PX3005005GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX3005005GI?
You can download the PX3005005GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX3005005GI?
OMEGA
