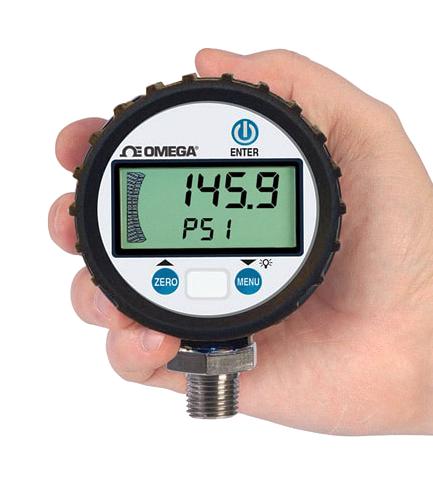

OMEGA DPG80015K digital pressure gauge
The DPG8001 Series digital pressure gauges provide 0.25% full scale accuracy, featuring robust stainless steel wetted parts suitable for industrial liquids and gases. They offer versatile measurement ranges from vacuum to 25,000 psi (30 inHg to 1724 bar) with user-selectable engineering units, a large 12.2 mm LCD display, MIN/MAX memory, tare function, and backlighting. Certified for NEMA 4X (IP65) environments, these gauges combine durability with advanced features like a 20-segment bar graph and low battery indicators, making them ideal for precise pressure monitoring in demanding industrial applications.
OMEGA DPG80015K digital pressure gauge Specifications:
- Accuracy: 0.25% FS terminal point, 0.5% for ranges 15 psi, 30 Vac, 30V15 and 30V30
- Ranges: Vacuum to 25,000 psi; vacuum and compound measurement options available
- Display: 12.2 mm LCD with 4 or 5 digits, backlit with blue illumination
- Bar Graph: 20 segment vertical display with MIN/MAX readings and tare
- Battery Life: Minimum 2000 hours, two AA alkaline batteries included
- Operating Temp: -20 to 60°C (-4 to 140°F), Media Temp: -20 to 80°C (-4 to 176°F)
- Materials: All stainless steel wetted parts, polycarbonate/ABS enclosure
- Connection: ¼ NPT male, lower position up to 10,000 psi, laser-welded 17-4 SS & 316L SS
- Proof Pressure: Up to 200% of full scale for ranges below 300 psi
- Burst Pressure: 800% of full scale for vac to <300 psi, 300% for higher ranges
- Vibration and Shock: MIL-STD-202G compliant, cycle life 10 million cycles
- Environmental Rating: NEMA 4X, IP67, suitable for harsh industrial environments
- Features: Backlight, MIN/MAX memory, tare function, programmable auto-off from 1-20 minutes
Buy the General Electric DPG8001 – Reliable Digital Pressure Gauge for Industrial Applications
Get your GE Series DPG8001 digital pressure gauge now for precise pressure readings in demanding environments. Featuring 0.25% accuracy, stainless steel wetted parts, multi-unit display, and a large LCD with backlighting, it ensures reliable performance. Ideal for measuring vacuum, gauge, and compound pressure up to 25,000 psi, this rugged device includes tare, MIN/MAX memory, and a weather-resistant NEMA 4X enclosure. Purchase online today for fast delivery and dependable pressure monitoring in industrial settings.
Order your GE Series DPG8001 digital pressure gauge today and equip your operations with accurate, durable pressure measurement tools.
Frequently Asked Questions
Where can I buy OMEGA DPG80015K?
You can click on the BUY or RFQ button to purchase DPG80015K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG80015K?
You can download the DPG80015K datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG80015K?
OMEGA
