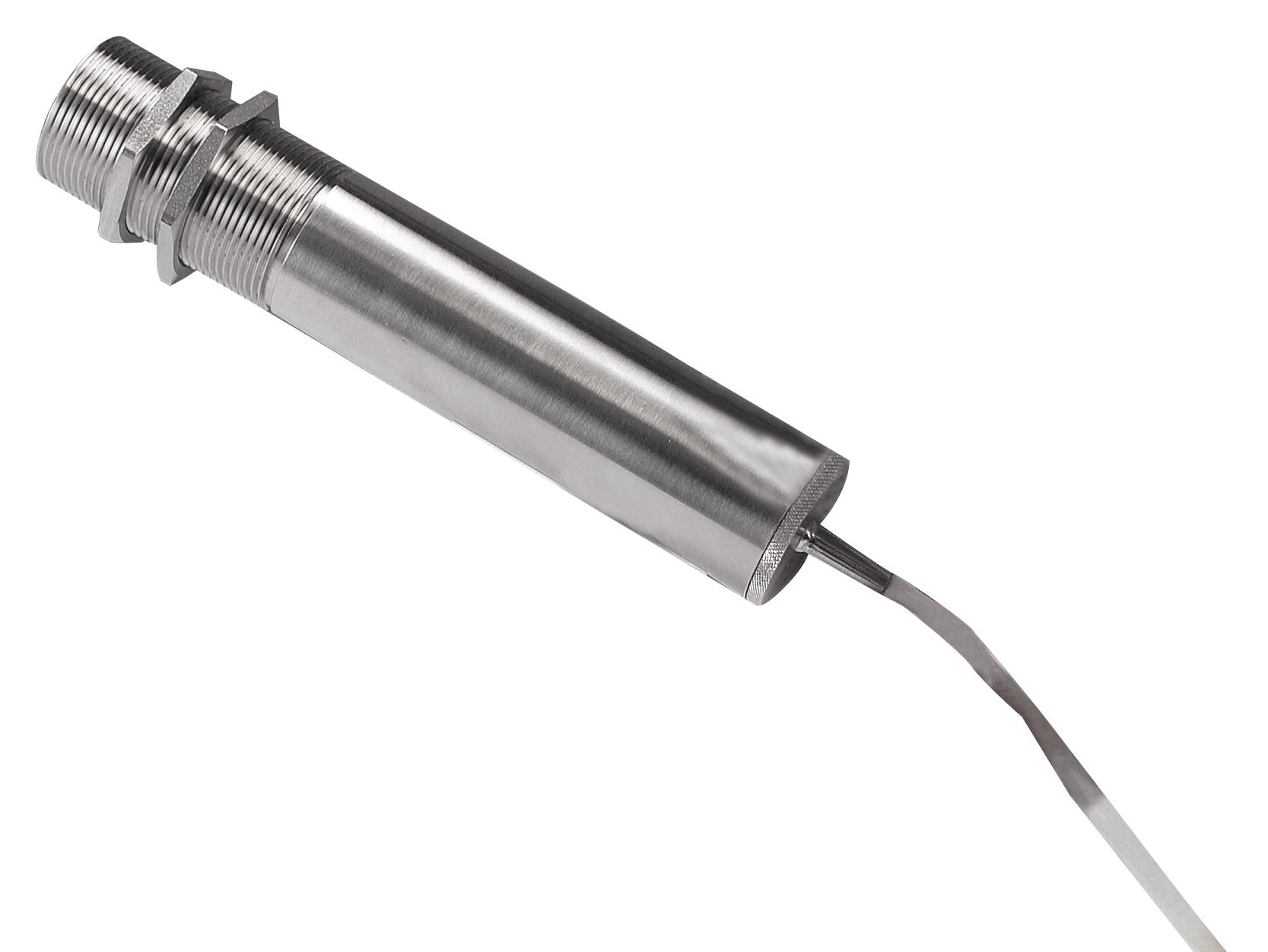

OMEGA OS137MB Infrared Temperature Sensor
The OS137 Series infrared temperature sensors and transmitters provide precise, non-contact temperature measurement with adjustable emissivity and multiple output options. Packaged in a robust stainless steel housing with NEMA 4 (IP65) rating, these compact devices feature a 10:1 optical field of view, response time of 150 milliseconds, and selectable temperature ranges up to 538°C (1000°F). Suitable for industrial environments, they include adjustable alarm setpoints, various analog and thermocouple outputs, and a laser sighting option for accurate targeting. Ideal for continuous temperature monitoring in manufacturing and process control settings.
OMEGA OS137MB Infrared Temperature Sensor Specifications:
- Temperature Range: 0 to 100°C, -18 to 260°C, -18 to 538°C
- Response Time: 150 msec
- Optical Field of View: 10 to 1
- Spectral Response: 5 to 14 microns
- Emissivity: 0.4 to 1.0, adjustable
- Accuracy: 5% rdg or 3.5°F (2°C), whichever is greater
- Repeatability: 1% rdg or 2°F (1°C)
- Outputs: 4-20 mA, 0-5 Vdc, 0-10 Vdc, K thermocouple, 10 mV/°F, 10 mV/°C
- Alarm Output: 100 mA drive voltage
- Power Supply: 12-24 Vdc, 50 mA
- Housing Material: Stainless steel
- Housing Rating: NEMA 4 (IP65)
- Operating Temperature: 0 to 70°C without cooling, up to 200°C with water cooling
- Operating Humidity: Less than 95% RH, non-condensing
Buy the OMEGA Series OS137 Infrared Temperature Sensor: OS137MB
Purchase the OMEGA OS137 infrared temperature sensor online now to ensure reliable, accurate non-contact temperature monitoring for your industrial applications. Designed with adjustable emissivity, multiple output options, and a durable stainless steel NEMA 4 housing, this sensor provides precise readings across a wide temperature range up to 538°C. Its compact design makes installation easy, and with various outputs like 4-20 mA, Vdc, and thermocouples, integration with data loggers, controllers, or PLCs is seamless. Trust OMEGA’s quality for long-lasting performance in demanding environments.
Get OMEGA OS137MB today—built for precise industrial temperature measurement with adjustable emissivity and robust stainless steel housing.
Frequently Asked Questions
Where can I buy OMEGA OS137MB?
You can click on the BUY or RFQ button to purchase OS137MB from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OS137MB?
You can download the OS137MB datasheet or visit the OMEGA website for support.
Who is the manufacturer of OS137MB?
OMEGA
