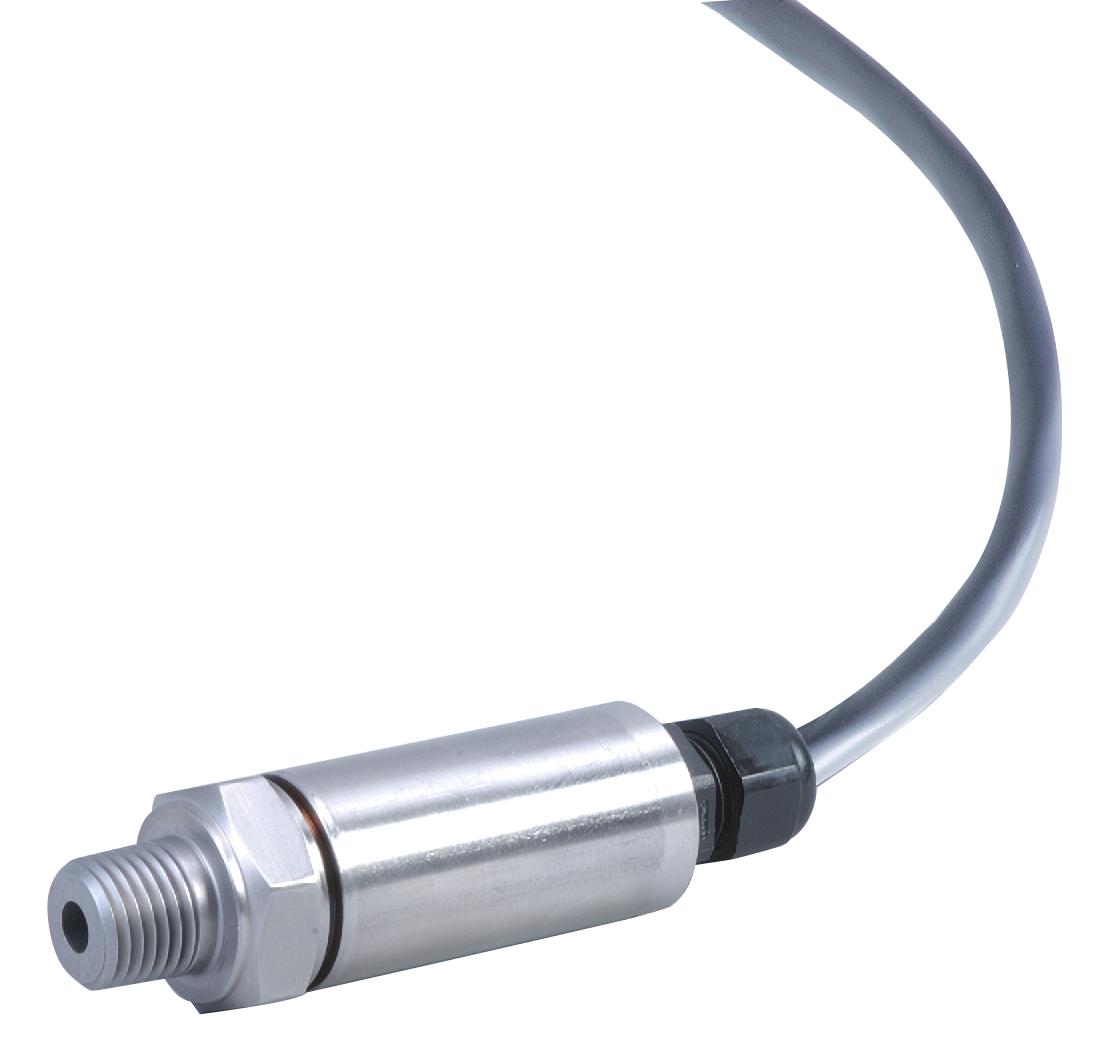

OMEGA PX309100GV Pressure Transducer
The PX309 series high-performance pressure transducer uses advanced silicon technology to deliver accurate, stable measurements for industrial applications. With all stainless steel construction, it withstands harsh environments and provides a gauge pressure range from 0 to 6.9 bar (0 to 100 psi). The device outputs signals in millivolts per volt (mV/V), 0 to 5 V, or 4 to 20 mA, ensuring high accuracy and low drift. Rated IP65 for dust and water resistance, it features a rugged, solid-state design, operating from -40°C to 85°C. It includes a ¼-18 MNPT port, a 1.5-meter cable, and a 5-point NIST calibration, suitable for demanding industrial and OEM applications.
OMEGA PX309100GV Pressure Transducer Specifications:
- Pressure Range: 0 to 6.9 bar (0 to 100 psi)
- Construction: All stainless steel
- Output Options: mV/V, 0-5 V, 4-20 mA
- Accuracy: ±0.25% of FS over one year
- Protection Class: IP65
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Port Size: ¼-18 MNPT
- Cable Length: 1.5 meters (5 feet)
- Durability: Rugged solid-state design
- Calibration: Includes 5-point NIST-traceable calibration
- Long-Term Stability: Approximately ±0.25%
- Voltage Supply: 5 Vdc, 10 Vdc, or 4-20 mA outputs compatible
- Vacuum Tolerance: Up to 100 psig units withstand vacuum conditions on the pressure port
Buy the Buy OMEGA Pressure Transducer Part Number PX309100GV Online
Order the OMEGA PX309 pressure transducer online today for accurate, stable readings in industrial settings. Its all stainless steel construction ensures durability under harsh conditions, with high accuracy of ±0.25%. Rated IP65, it resists dust and water ingress, providing reliable long-term performance. The device features multiple output options including mV/V, 0-5 V, and 4-20 mA, and comes with a 5-point NIST calibration. Perfect for OEM and industrial applications needing precise pressure monitoring and robust protection.
Buy OMEGA PX309100GV now and experience unmatched reliability and precision in industrial pressure measurement.
Frequently Asked Questions
Where can I buy OMEGA PX309100GV?
You can click on the BUY or RFQ button to purchase PX309100GV from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX309100GV?
You can download the PX309100GV datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX309100GV?
OMEGA
