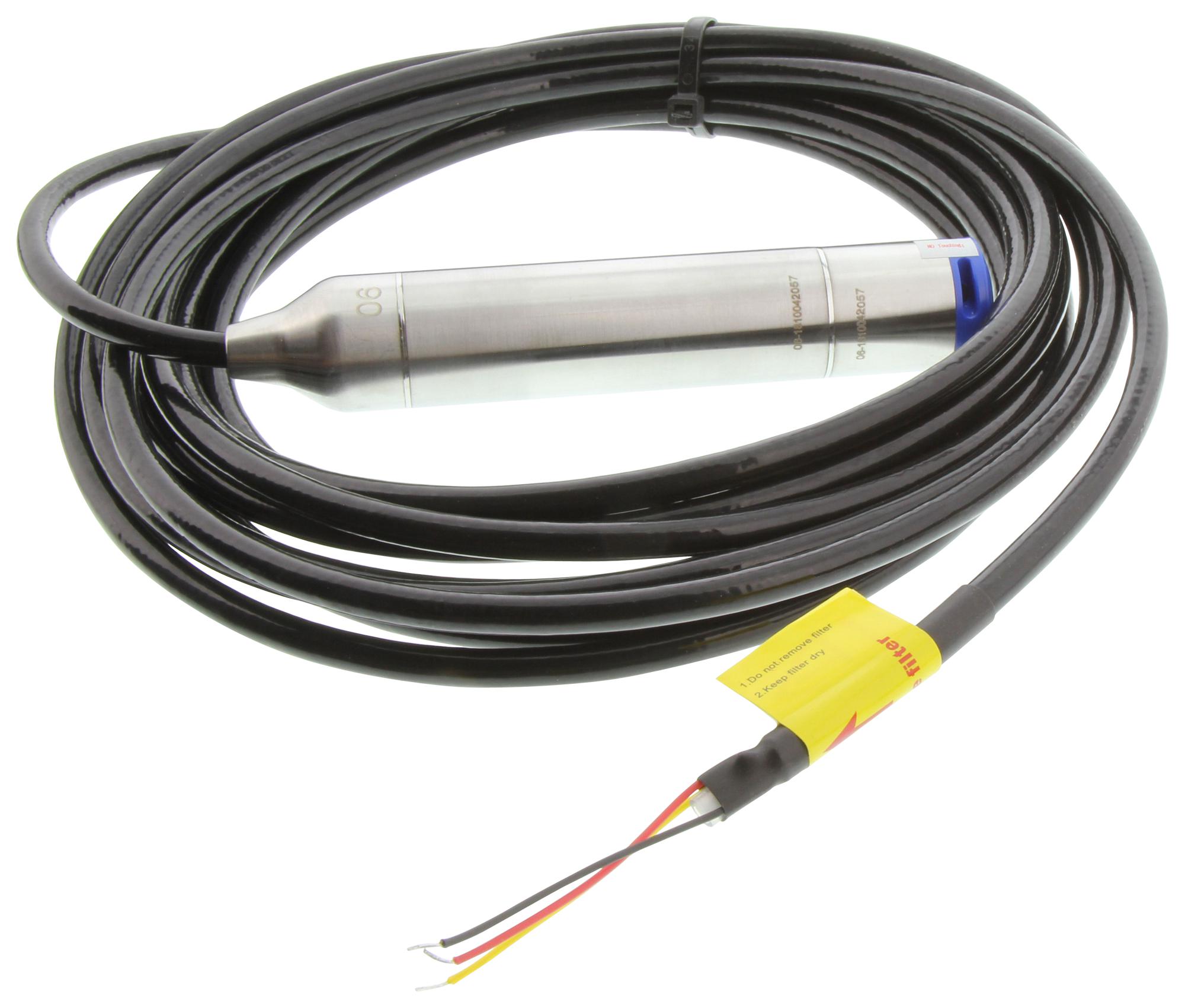

OMEGA PX633A2300GI Submersible Level Transmitter
The PX633 Submersible Level Transmitter from Omega is a high-accuracy device designed for demanding level measurement in harsh environments. Featuring advanced microprocessor technology, temperature compensation, and robust stainless steel construction, it offers reliable long-term performance. The transducer is fully submersible with water-tight seals, transient voltage protection, and an extended life cable with cone seals to withstand turbulent media. Suitable for industrial applications requiring precise, stable readings across various pressure ranges from 3 to 300 psi, it includes CE certification, calibration sheets, and comprehensive protection features.
OMEGA PX633A2300GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS NLHR (PX633A1), 0.25% FS NLHR (PX633A2), 0.50% FS NLHR (PX633A5)
- Long Term Stability: +0.2% FS per year
- Ambient Temperature Effect: 0.4% FS/10K from 20°C to 80°C
- Power Supply: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Transmission Distance: less than 1000 meters
- Protection Class: IP68
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Electrical Connector: PUR cable, outer diameter 7.5±0.2mm
- Diaphragm Material: 316 stainless steel
- Fill Fluid: Silicon oil
- Sensor Seal: O-ring, FMK
- Side Cover Material: 316 stainless steel, Diameter 28mm
- Vibration Resistance: 20g, 5-2000Hz
- Sealing: Dual seal design, cone seal for durability
- Surge Protection: Transient voltage protection included
Buy the Omega PX633 – Reliable Submersible Level Transmitter for Industrial Applications
Purchase the Omega PX633 Submersible Level Transmitter online today and ensure precise, reliable level measurement in challenging environments. Designed with advanced technology, it offers robust construction, full submersion capability, and excellent long-term stability. Perfect for industrial applications, it features a water-tight seal, transient voltage protection, and a wide pressure range from 3 to 300 psi. With CE certification and calibration support, this device guarantees optimal performance and durability. Order now to upgrade your level measurement systems effortlessly.
Buy Omega PX633 now and experience unmatched reliability and performance in harsh industrial environments with high-accuracy level measurement.
