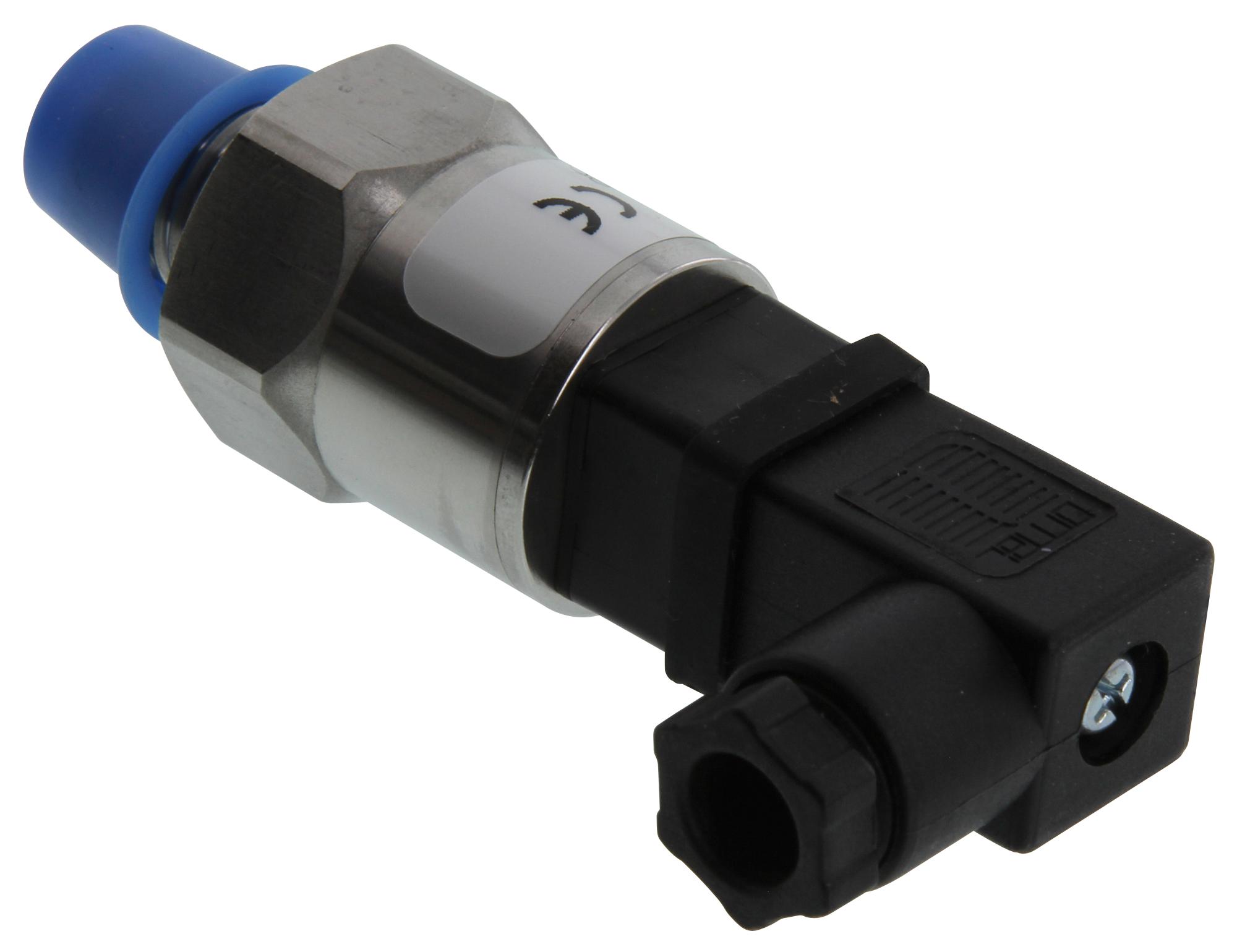

OMEGA PX119100GI Pressure Transmitter
The PX119 pressure transmitter series offers a compact, all-stainless-steel body designed for space-constrained industrial and mobile applications. It features a piezoresistive ceramic sensor with ASIC signal conditioning, providing precise measurement from 15 to 5000 psi (345 bar) and excellent thermal compensation. Suitable for various environments, it has a high accuracy of 0.50% BFSL, a response time of 1 ms, and an ingress protection rating of IP65. The transmitter operates within -40 to 135°C (-40 to 257°F) and includes DIN and NPT connections, making it ideal for reliable, rugged pressure monitoring.
OMEGA PX119100GI Pressure Transmitter Specifications:
- Pressure Range: 15 to 5000 psi (345 bar)
- Output: 4 to 20 mA
- Accuracy: 0.50% BFSL
- Body Material: All stainless steel
- Response Time: 1 ms
- Ingress Protection: IP65
- Operating Temperature: -40 to 135°C (-40 to 257°F)
- Vibration: Designed to withstand harsh environments
- Electrical Connection: Mini DIN
- Process Connection: NPT male
- Wetted Materials: 304 stainless steel and CA-319-4PC24-XXX-WP cable options
- Temperature Error: Varies by model, e.g., 0 to 15 psi: 0.01% FS/°F
- Overvoltage and reverse polarity protection
- Construction: Single-piece stainless steel body
- Weight: 70 g (0.15 lb)
Buy the Omega Series PX119 Pressure Transmitter Compact Stainless Steel: PX119100GI
Get the reliable Omega PX119 pressure transmitter online today. Designed for space-constrained environments, it offers precise measurement from 15 to 5000 psi. Its stainless steel body ensures durability and resistance to harsh conditions, making it suitable for industrial and mobile applications. With a fast response time of 1 ms and an ingress protection rating of IP65, this versatile transmitter is ideal for demanding monitoring needs. Purchase now and enhance your project’s performance with quality, precision, and durability.
Order your Omega PX119 series pressure transmitter today and ensure accurate, rugged pressure monitoring for your industrial or mobile projects.
