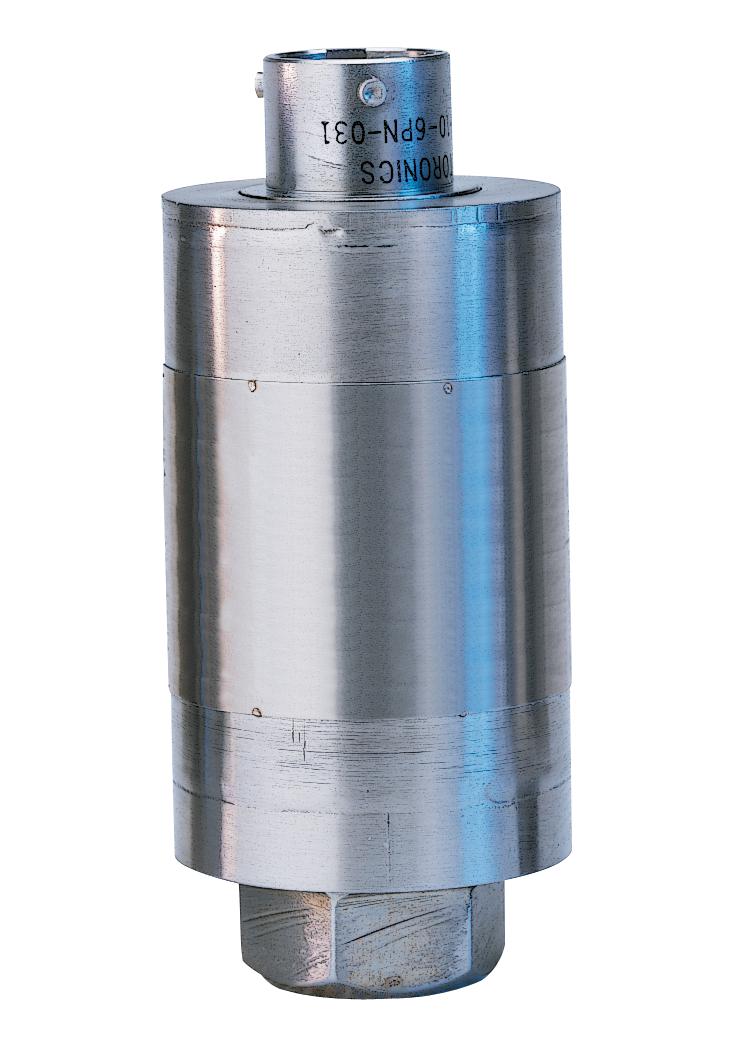

OMEGA PX32B1100AV pressure transducer
This high-temperature compensated absolute pressure transducer features stainless steel construction and is designed for demanding industrial and off-road applications. It operates within a temperature range of -40°C to 168°C (-40°F to 335°F) and is ideal for measuring hydraulic pressure in environments with high temperatures. The device measures absolute pressure from 0 to 100 psi (0 to 6.9 bar) and includes a 5-point NIST-traceable calibration for accuracy and reliability.
OMEGA PX32B1100AV pressure transducer Specifications:
- Temperature Range: -40°C to 168°C (-40°F to 335°F)
- Construction: All stainless steel (17-4 PH)
- Measurement Range: 0 to 100 psi (0 to 6.9 bar)
- Accuracy: 0.25% linearity, hysteresis, and repeatability
- Output: 3 mV/V +2%
- Input Resistance: 360Ω minimum
- Output Resistance: 350Ω ±5Ω
- Zero Balance: +2% FSO
- Proof Pressure: 200% of rated pressure
- Burst Pressure: 300% of rated pressure
- Electrical Excitation: 10V AC/DC (15V max)
- Dimensions: 73.1 mm length x 32 mm diameter
- Wetted Parts: 17-4 PH stainless steel
- Pressure Port: 4-27 NPT internal
- Connector: PTIH-10-6P, mating connector PTO6F10-6S
- Thermal Effects: Span 0.008% rdg/°F, Zero 0.008% FSO/°F
Buy the Buy Omega PX32B1-100AV Part Number PX32B1-100AV Online
Capable of functioning in extreme environments up to 168°C, this stainless steel high-temperature transducer provides precise hydraulic pressure measurement from 0 to 100 psi. Its all-metal construction ensures durability, while the 5-point NIST calibration guarantees accuracy for demanding industrial applications. Suitable for off-road and industrial hydraulic systems, it features a compact design, sealed electrical connections, and a robust pressure port. Purchase online today to enhance your hydraulic system performance with this reliable, high-temperature-compatible transducer.
Buy Omega PX32B1-100AV now and experience unmatched reliability and performance in high-temperature hydraulic pressure measurement.
