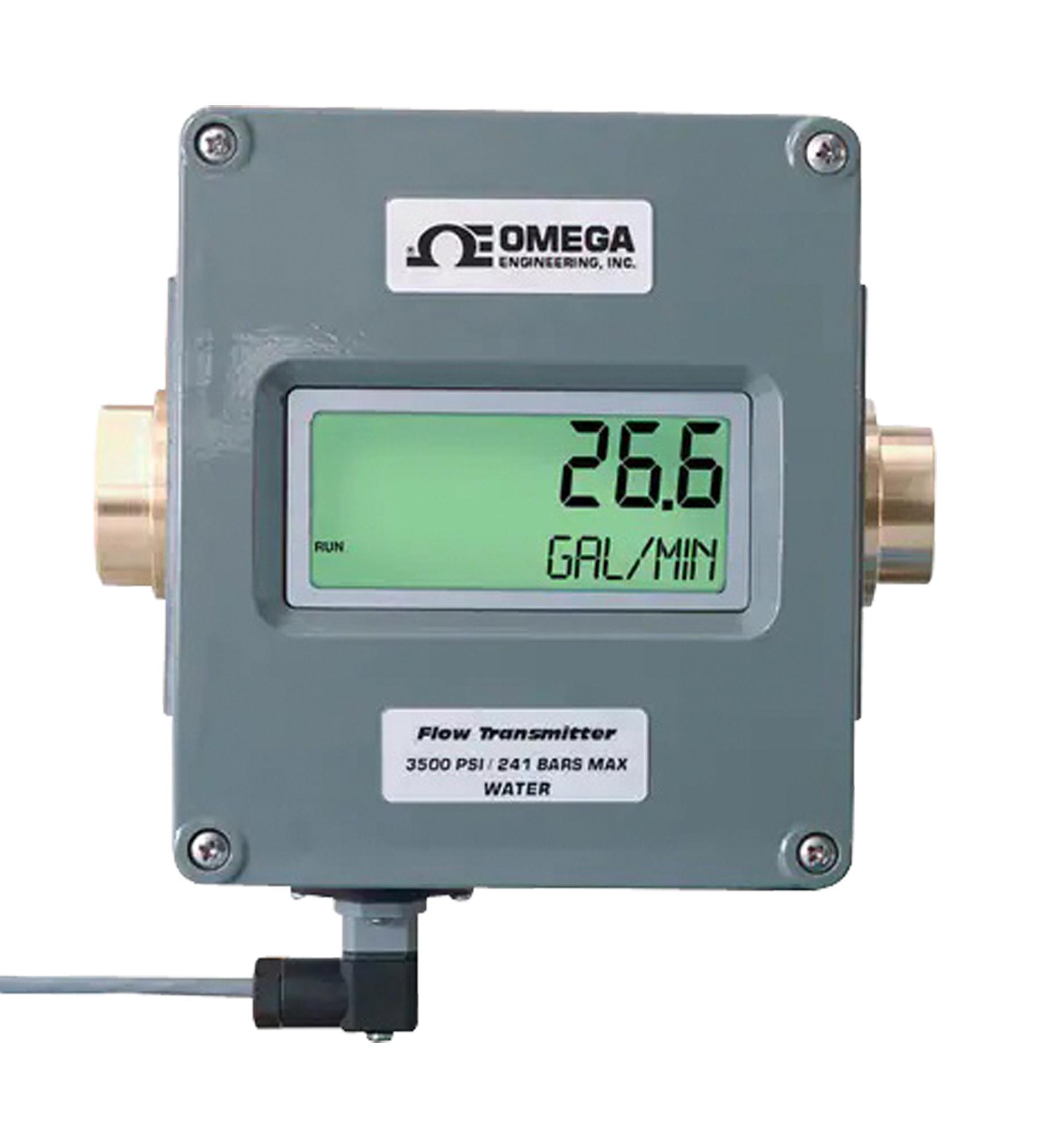

OMEGA FLR6302D Water Flow Meter
This flow meter is designed for process control and information systems, featuring a flow range of 0.2 to 2.0 GPM for water media. It has a brass body construction, offers a 2% full-scale accuracy, and can be mounted in any position. The device provides a digital display of flow rate and total flow measurement, with compatibility for remote output signals such as 4 to 20 mA, 0 to 5 Vdc, and 0 to 10 Vdc. It is suitable for applications involving water and oil, with maximum pressures up to 3500 psig, and operates reliably across a temperature range of -29°C to 116°C.
OMEGA FLR6302D Water Flow Meter Specifications:
- Flow Range: 0.2 to 2.0 GPM for water media
- Body Material: Brass
- Accuracy: 2% FS
- Maximum Pressure: 3500 psig (liquids), 1000 psig (gases)
- Temperature Range: -29 to 116°C (-20 to 240°F)
- Power Requirements: 0 to 5 Vdc or 0 to 10 Vdc @ 12-30 Vde, 4 to 20 mA loop-powered
- Power Consumption: 0.75 W maximum
- Enclosure Rating: NEMA 12 and 13 (IP52/54), anodized and epoxy-coated aluminum
- Display: 8-digit numeric rate and total, 0.70 inch high, toggle mode
- Response Time: 1 second
- Sensor Dimensions: 60.60 mm (2.39 inch) diameter for standard size
- Max Flow Capacity: 2 GPM
- Operational Conditions: Temperature: -29°C to 116°C, Pressure: up to 3500 psig
- Connection: 4-pin standard connector, suitable for panel mounting
Buy the Buy Omega Flow Meter Part Number FLR6302D Online
Order the Omega water flow meter FLR6302D online today to enhance your process control systems. This reliable device offers a 0.2 to 2.0 GPM flow range, 2% accuracy, and a durable brass body. Its digital display provides real-time flow rate and total measurement, suitable for water media in various industrial applications. With versatile mounting options and compatibility with analog output signals, it ensures precise readings and seamless integration into your system. Experience unmatched reliability and performance by purchasing Omega's trusted flow meters online now.
Buy Omega FLR6302D now and ensure accurate water flow monitoring for your process control needs with reliable brass construction and digital display.
Frequently Asked Questions
Where can I buy OMEGA FLR6302D?
You can click on the BUY or RFQ button to purchase FLR6302D from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FLR6302D?
You can download the FLR6302D datasheet or visit the OMEGA website for support.
Who is the manufacturer of FLR6302D?
OMEGA
