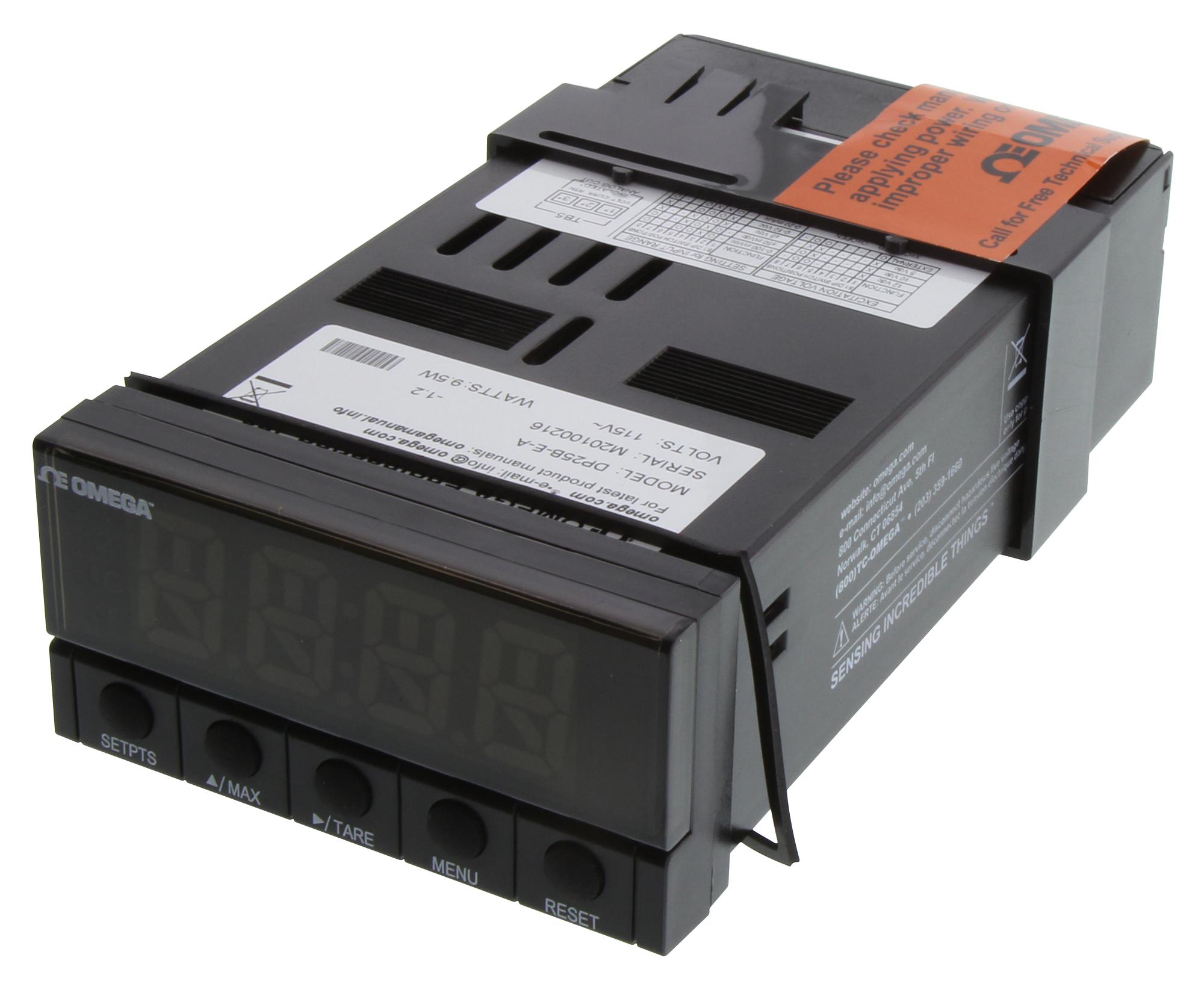

OMEGA DP25BEA Process Temperature Meter
The DP25B Series process, strain, and temperature meters offer a versatile, microprocessor-based design with bright LED displays in red, amber, or green. They feature 4-digit, 9-segment displays with high accuracy, dual slope ADC technique, and an automatic polarity display. Models accommodate thermocouples, RTDs, process signals, and strain gages, with optional relay outputs and isolated or non-isolated analog outputs in various voltage/current ranges. Designed for industrial environments, these meters include features like easy front-panel scaling, built-in excitation, remote tare, and customizable color bezels, making them ideal for precise signal conditioning and control applications.
OMEGA DP25BEA Process Temperature Meter Specifications:
- Display: 4-digit, 9-segment, 21 mm high in red, amber, or green LED
- Analog-to-Digital Technique: Dual slope
- Internal Resolution: 15-bit
- Relay Outputs: 2 form C relays, 5 A 250 Vac, programmable for alarms
- Analog Output: 0-10 V, 4-20 mA, or 0-20 mA, scalable and proportional control
- Power Options: 115 Vac or 230 Vac +10%, 10 to 32 Vdc, 26 to 56 Vdc, 8 W max
- Isolation: Up to 2500 V transient, EN61010 standards
- Operating Temp: 0 to 50°C, Storage: -40 to 85°C
- Dimensions: 48 H x 96 W x 152 mm D
- Panel Cutout: 45 H x 92 W mm
- Weight: 36 g
- Input Types: Thermocouples J, K, T, DIN; RTDs Pt 100; process signals DC voltage/current
- Accuracy: ±0.5°C for RTDs, ±0.03% rdg for strain/process
- Response Time: 2 seconds, Read Rate: 3/sec
- Compliance: EN 61010, EN 50081-1 for EMC emissions
- Additional features: Built-in excitation, remote tare, front scaling, customizable bezels
- Environmental Resistance: Pollution Degree 2, installation Category I
Buy the Omega DP25BEA – Reliable Process and Temperature Meters for Industrial Applications
Purchase the Omega DP25BEA process, strain, or temperature meter online today to ensure accurate signal conditioning in your industrial projects. Featuring bright LED displays with customizable colors, versatile input options including thermocouples, RTDs, and process signals, and optional relay and analog outputs, this microprocessor-based meter offers high accuracy, easy front-panel scaling, and built-in excitation for transducers. Its rugged design meets industrial standards, providing reliable performance for varied signal processing needs across manufacturing, automation, and control systems. Get yours now for dependable, precise measurement solutions.
Order your Omega DP25BEA process, strain, or temperature meter today and enhance your industrial monitoring with dependable precision and customizable options.
