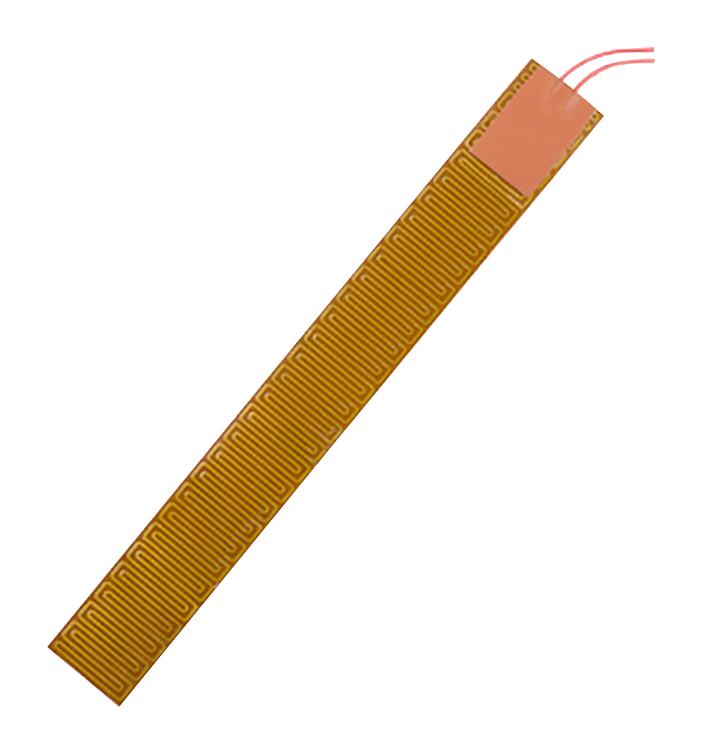

OMEGA KHLVA2035P Polyimide Heater
The KHLVA2035P is a flexible, high-performance polyimide film insulated heater designed for precise temperature control up to 150°C. It features etched foil design with a maximum thickness of 0.010 inches and is available in various sizes and wattages, including 2.5, 5, and 10 W/in. With optional pressure-sensitive adhesive, it ensures secure application on irregular surfaces. Suitable for industrial heating applications requiring chemical resistance and reliable, uniform heat distribution. The heater’s construction incorporates Inconel 600 resistive foil in a polyimide casing, making it ideal for demanding environments.
OMEGA KHLVA2035P Polyimide Heater Specifications:
- Maximum Temperature: 150°C (302°F)
- Thickness: Max 0.010 inches
- Material: Polyimide film with Inconel 600 resistive foil
- Operating Temp (With PSA): -40°C to 149°C (-40°F to 300°F)
- Operating Temp (Without PSA): -57°C to 150°C
- Dielectric Strength: 1250 Vac for 1 sec
- Watt Density: 2.5, 5, or 10 W/in
- Voltage: 115V, 230V, or 28V options
- Wire Insulation: PTFE, UL 1180, stranded, AWG 22
- Bending Radius: Minimum 0.032 inches
- Application: Industrial heating, chemical resistance, flexible fitting
Buy the Omega KHLVA2035P – Reliable Polyimide Film Heater for Industrial Applications
Order the Omega polyimide heater online today for reliable, uniform heat in industrial settings. Featuring etched foil design, optional adhesive, and various wattages, this flexible heater ensures efficiency and durability. Its high temperature resistance up to 150°C and compact construction make it suitable for demanding applications. Easy to install on irregular surfaces with optional PSA. Perfect for chemical resistance, precise temperature control, and demanding industrial environments. Purchase now for fast delivery and exceptional quality.
Get Omega KHLVA2035P today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA KHLVA2035P?
You can click on the BUY or RFQ button to purchase KHLVA2035P from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part KHLVA2035P?
You can download the KHLVA2035P datasheet or visit the OMEGA website for support.
Who is the manufacturer of KHLVA2035P?
OMEGA
