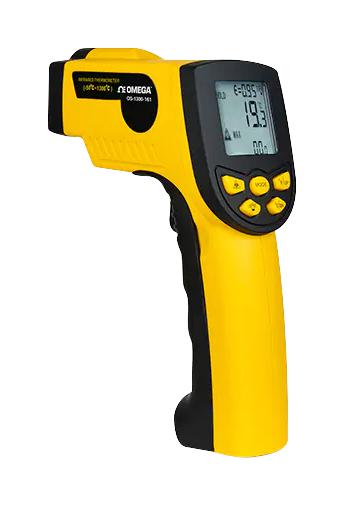

OMEGA OS1300161 Infrared Thermometer

The OS1300-series handheld infrared thermometer is a non-contact device designed for measuring surface temperatures across a wide range of -50°C to 1300°C (-58°F to 2372°F). It features a backlit display that automatically illuminates when the trigger is pulled, enabling use in low-light conditions. The device includes a single laser sight aligned above the IR sensor for precise targeting, with a field of view of 16:1. When the trigger is pressed, it continuously updates the temperature measurement; releasing the trigger holds the last reading. Adjustable emissivity from 0.10 to 1.00, along with functions for minimum, maximum, average, and difference readings, make it versatile for various applications. Additional features include high and low-temperature alarms, a response time of 500 milliseconds, an auto-power-off function to conserve battery life, and a 'hold' feature to retain the last measurement. This thermometer safely measures the temperature of hot, hazardous, or hard-to-reach surfaces without contact.

Authorized Distributors
Source:Newark
Part No:OS-1300-161
Stock:3
Inv Date:06-12-2026
Price: Unit price: $278.36
Buy/RFQ:
Source:DigiKey
Part No:OS-1300-161
Stock:1
Inv Date:06-12-2026
Price: Unit price: $278.36
Buy/RFQ:

OMEGA OS1300161 Infrared Thermometer Specifications:

  • Measurement Range: -50 to 1300°C (-58 to 2372°F)
  • Accuracy: 3% of rdg +3°C (−50 to 0°C), 2% of rdg +2°C (above 0°C)
  • Display Resolution: 0.1°C or 0.1°F
  • Response Time: 500 ms
  • Spectral Response: 8 to 14 microns
  • Emissivity: Adjustable from 0.10 to 1.00
  • Field of View: 16:1
  • Power: 9V alkaline battery
  • Battery Life: approximately 12 hours with laser use
  • Dimensions: 146 x 80 x 38 mm (5.74 x 3.14 x 1.49 in)
  • Weight: 130 g (4.5 oz) without battery

Buy the Omega Series OS1300 Infrared Thermometer: OS1300161

Purchase the Omega Series OS1300 Infrared Thermometer online today to benefit from precise, non-contact temperature measurement with adjustable emissivity, fast response time, and versatile features. Its compact design, backlit display, and laser targeting make it ideal for industrial, electrical, and maintenance applications, providing reliable readings from -50°C to 1300°C. With high and low alarms, hold function, and long battery life, this thermometer ensures safety and efficiency in challenging environments. Get yours now for dependable performance and easy operation.

Order your Omega Series OS1300 Infrared Thermometer today and ensure accurate, contactless temperature measurements for hot, hazardous, or hard-to-reach surfaces.
