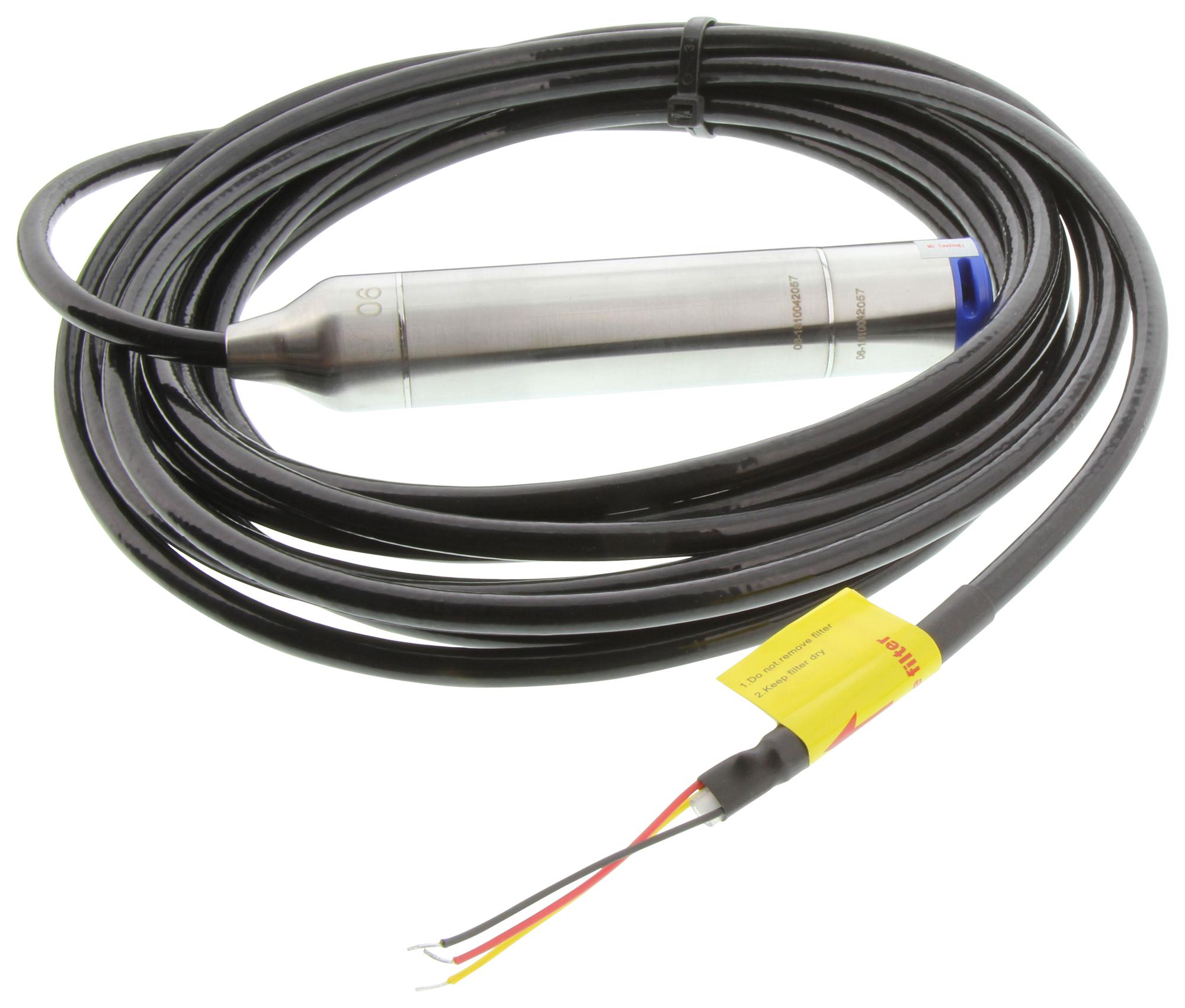

OMEGA PX633A1300GI Submersible Level Transmitter
The PX633 Submersible Level Transmitter from Omega is designed for high-accuracy, demanding level measurements in challenging environments. It features advanced microprocessor technology with comprehensive linear and temperature compensation, ensuring precise results. The rugged stainless steel body, dual seal design, and full potting provide long-term reliability and stability, even in turbulent or harsh media. Its transient voltage protection enhances operation in surge-prone environments. Ideal for demanding industrial applications requiring submersible, high-accuracy level measurement solutions with CE certification and calibration support.
OMEGA PX633A1300GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS NLHR for PX633A1, 0.25% FS NLHR for PX633A2, 0.50% FS NLHR for PX633A5
- Long Term Stability: +0.2% FS/year
- Ambient Temperature Effects: 40.2% FS/10K (20°C to 80°C)
- Power Supply: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Transmission Distance: <1000m
- Protection Class: IP68
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Sensor Material: 316 SS
- Fill Fluid: Silicon oil
- Protection features include transient voltage protection and reinforced seals
- Electrical Connection: PUR cable, diameter 7.5±0.2mm
- Diaphragm Material: 316 SS
- Additional accessories: tank cable clamp, transmitter cable, counter weight, and thread connection options
Buy the Omega PX633U2013 Reliable Submersible Level Transmitter for Industrial Applications
Order the Omega PX633 Submersible Level Transmitter online today and ensure precise, reliable level measurement in tough environments. Featuring advanced microprocessor technology, long-term stability, rugged stainless steel construction, and extensive certifications, this transmitter is ideal for demanding industrial applications. Its high accuracy, full submergibility, transient voltage protection, and comprehensive calibration support make it the perfect choice for professionals who require dependable, high-performance level sensing solutions. Purchase now to optimize your level measurement operations with confidence.
Buy Omega PX633 Level Transmitter now and experience unmatched reliability, high accuracy, and durability for demanding level measurement tasks.
