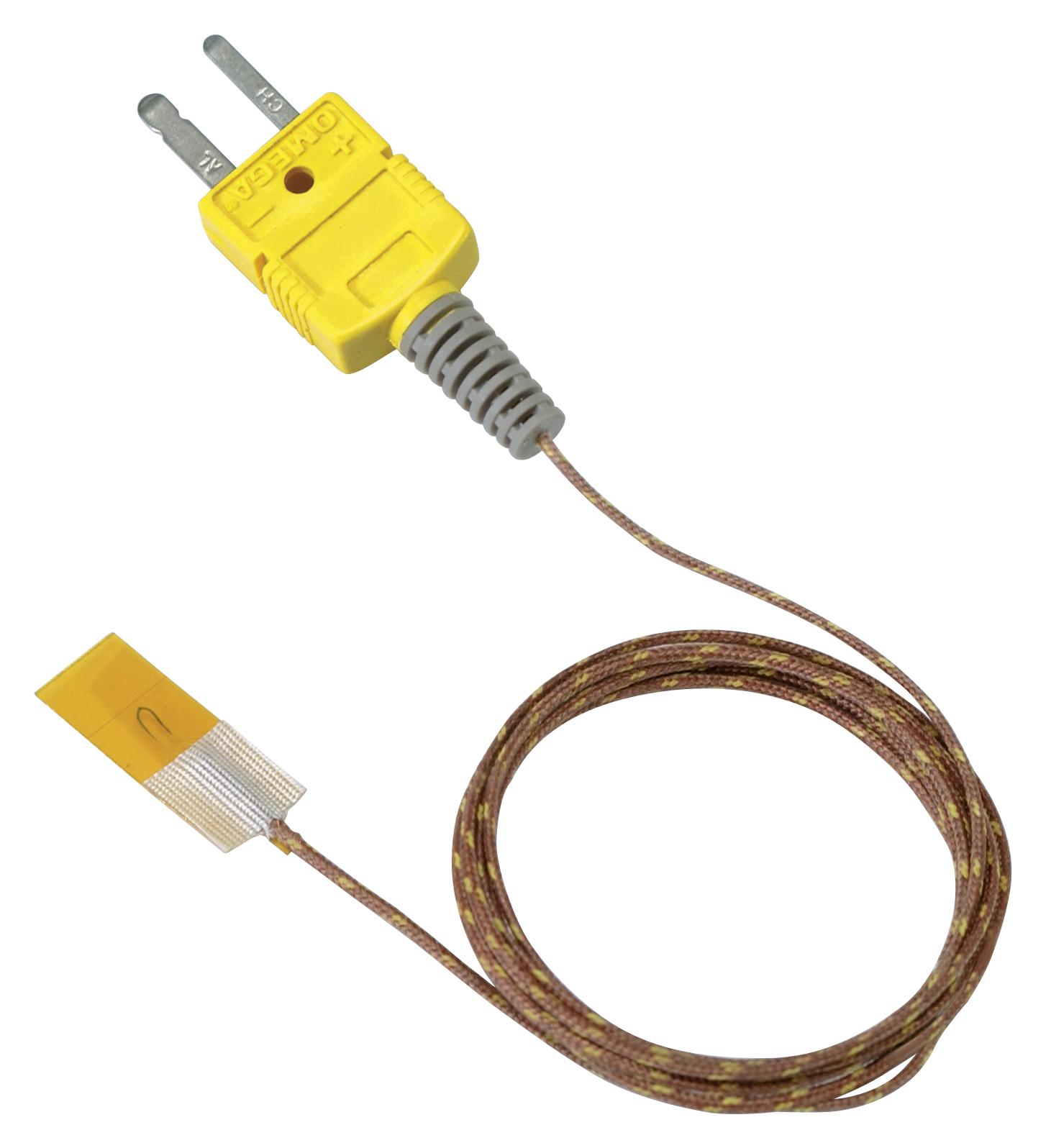

OMEGA SA1XLKSRTC Surface Thermocouple
The surface thermocouple features fiberglass-insulated leads with quick response times under 0.15 seconds, suitable for high or low temperatures. It offers self-adhesive and cement-on options, rated for temperatures up to 315°C when cemented. The thermocouple is available in various lengths (1, 2, 3 meters), calibrations (J, K, T, E), and with optional stainless steel overbraid for enhanced durability. It is ideal for electronic temperature monitoring, furnace fabrication, and industrial applications requiring fast, reliable temperature readings with easy installation.
OMEGA SA1XLKSRTC Surface Thermocouple Specifications:
- Model No.: SA1XL-K-SRTC
- Response Time: Less than 0.15 seconds
- Lead Wire: 30 AWG fiberglass rated to 482°C (900°F)
- Temperature Rating: Sensor up to 315°C (600°F), fiberglass leads up to 482°C
- Lengths Available: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches)
- Insulation: Polyimide/ fiberglass junction insulation
- Connector: Molded miniature connector with optional strain relief
- Material: Fiberglass-insulated, self-adhesive silicone-based backing rated to 260°C (500°F)
- Optional Overbraid: Stainless Steel overbraid (suffix -SB)
- Cements Available: OMEGABOND air-set and epoxy-based options (OB-100, OB-200, OB-400, OB-700)
- Applicable Temperatures: Up to 260°C (500°F) with adhesive, up to 315°C (600°F) when cemented
- Customization: Various lengths, calibration types, connector types, and overbraid options
Buy the Omega SA1XLKSRTC – Reliable Surface Thermocouple for Industrial Monitoring
Order the Omega Surface Thermocouple SA1XL-K-SRTC online today and experience fast response times and reliable temperature measurements. Ideal for furnace, electronic, or industrial applications, it features fiberglass-insulated leads rated to 482°C, with options for self-adhesive or cement-on mounting. Available in various lengths and calibrations, including stainless steel overbraid for enhanced durability. Easy to install with molded connectors, it’s perfect for temperature monitoring during fabrication, research, or process control, ensuring safety and accuracy in demanding environments.
Get Omega SA1XL-K-SRTC today—built for precision and long-lasting durability in high-temperature industrial environments.
