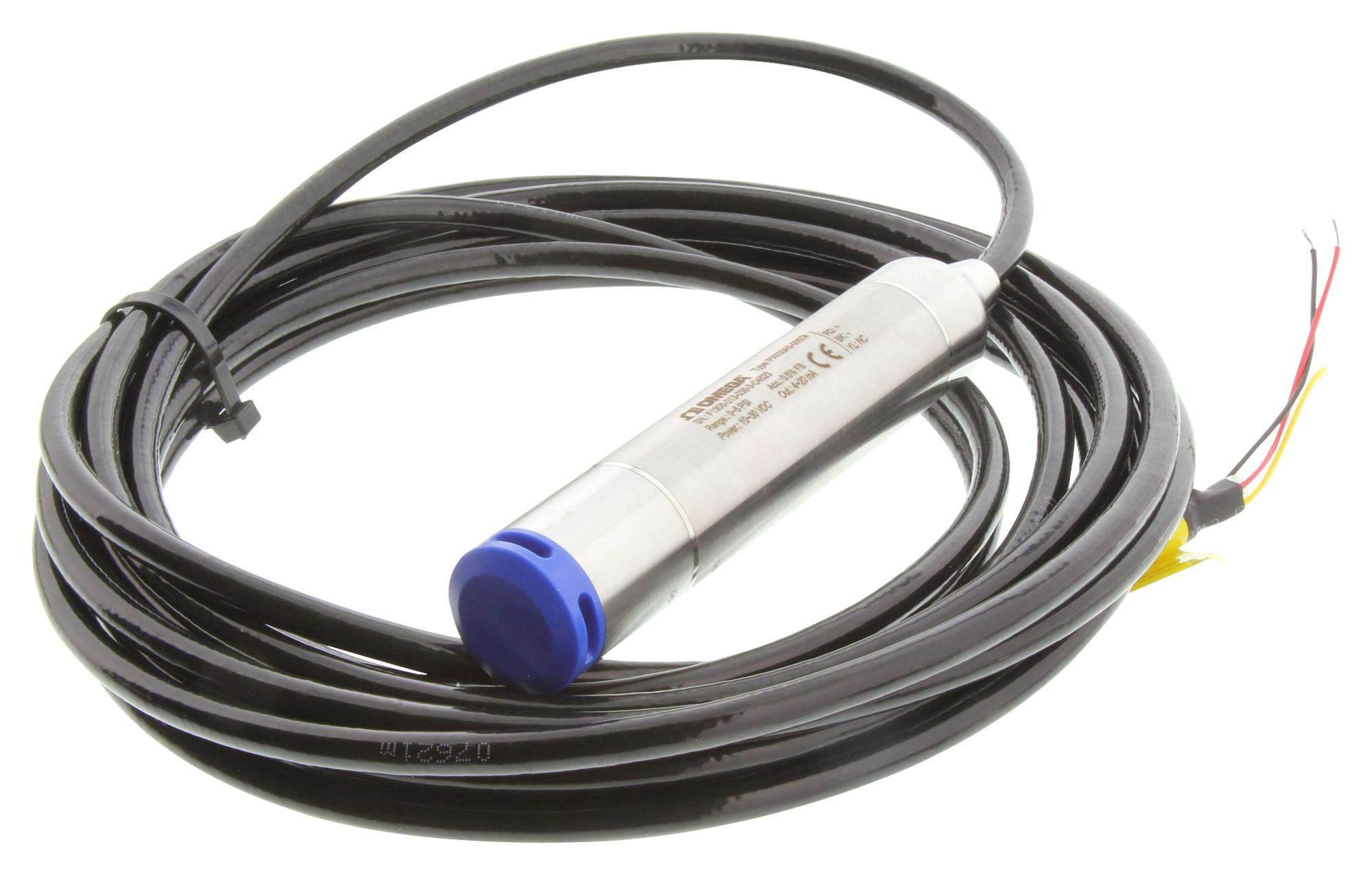

OMEGA PX633A5005GI Submersible Level Transmitter
The PX633 Submersible Level Transmitter by Omega provides high-accuracy and reliable level measurement for demanding environments. It features advanced microprocessor technology with comprehensive linear and temperature error compensation, ensuring precise readings. The rugged stainless steel body, dual seal design, and full potting protect against harsh conditions, including turbulence and vapor condensation. Transient voltage protection and specialized cable seals enhance durability, making it suitable for continuous submersion and challenging process conditions. Fully temperature compensated, tested, and calibrated, it is ideal for industrial level monitoring applications requiring high precision.
OMEGA PX633A5005GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS NLHR for PX633A1, 0.25% FS NLHR for PX633A2, 0.50% FS NLHR for PX633A5
- Long Term Stability: +0.2% FS per year
- Supply Voltage: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Maximum Current: 20.8mA
- Transmission Distance: < 1000m
- Protection Class: IP68
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Diaphragm Material: 316 Stainless Steel
- Fill Fluid: Silicon oil
- Electrical Connection: PUR cable, outer diameter approximately 7.5mm
- Vibration Resistance: 20g (5-2000Hz), <0.1% FS
- Power Consumption: 500mW @ 24VDC
- Sensor Seal: O-ring, FMK
- Side Cover Material: 316 SS, diameter 28mm
- Protection Standards: IEC 61298-3, GB/T 18271.3, and EMC standards
Buy the Buy Omega Submersible Level Transmitter Part Number PX633A5005GI Online
Purchase the Omega PX633A5005GI high-accuracy submersible level transmitter today to ensure reliable and precise level measurement in demanding environments. Designed with advanced microprocessor technology, it provides comprehensive linear and temperature error compensation. Its rugged stainless steel body, dual seal, and full potting ensure durability and stability in harsh conditions, including turbulent media. Fully temperature compensated, tested, and calibrated, this transmitter is ideal for industrial applications requiring high precision, long-term performance, and water-tight integrity, making it the best choice for demanding level monitoring tasks.
Get Omega PX633A5005GI today—engineered for high-precision, long-lasting submersion performance in challenging industrial environments.
