OMEGA CNI3233C24DC Industrial Process Controller
The CNi32 Series controller is a compact, highly accurate digital temperature, process, and strain control device designed for demanding industrial applications. It features programmable color displays, full autotune PID control, and universal inputs including thermocouples, RTDs, process voltage/current, and strain gauges. Built-in excitation for transducers, extensive communication options such as RS232 and RS485, and multiple output configurations like relays, analog, and DC pulses make it versatile. Its rugged design includes a NEMA 4 (IP65) front bezel, ensuring durability in harsh environments, with advanced linearization, programmable filters, and multiple control modes for precise management of various industrial processes.
OMEGA CNI3233C24DC Industrial Process Controller Specifications:
- Input Types: Thermocouple, RTD, analog voltage, current
- Accuracy: +0.5°C temperature; 0.03% reading
- Temperature Stability: RTD 0.04°C/°C, TC 0.05°C/°C @ 25°C
- Display: 4-digit 9-segment LED, programmable colors (Green, Amber, Red)
- Resolution: 1°/0.1°; 10 µV process
- Input Impedance: 10 MΩ (voltage), 100 Ω max (thermocouple lead resistance)
- Digital Filter: Programmable
- Control Action: Reverse or direct, PID, manual or auto with autotune
- Outputs: SPDT relays, SSR, DC pulse, Analog voltage/current
- Serial Communication: RS232, RS422/485, ASCII, MODBUS
- Power Supply: 90-240 Vac or low-voltage options (12-36 Vdc/Vac)
- Enclosure: NEMA 4/IP65 front bezel
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Dimensions: 25.4 H x 48 W x 127 mm D (1.0 x 1.89 x 5 inches)
- Panel Cutout: 22.5 H x 45 mm W (0.886 x 1.772 inches)

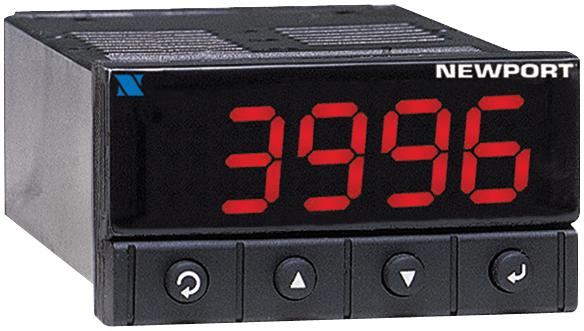

Buy the Omega Series CNi32 Thermocouple RTD Controller: CNI3233C24DC
Order the Omega Series CNi32 industrial process controller online today and experience unmatched precision with universal inputs, built-in excitation, and Programmable color displays. This durable NEMA 4/IP65 enclosure safeguards against harsh environments, providing reliable operation in temperature, strain, and process control applications. With multiple output options including relays, analog, and DC pulses, plus serial communication capabilities like RS232 and RS485, the CNi32 offers flexible integration into your automation system. Buy online now for quick delivery and professional support to optimize your manufacturing and control processes with ease and confidence.
Get Omega CNI3233C24DC today—built for precision and long-lasting durability in industrial control systems.
