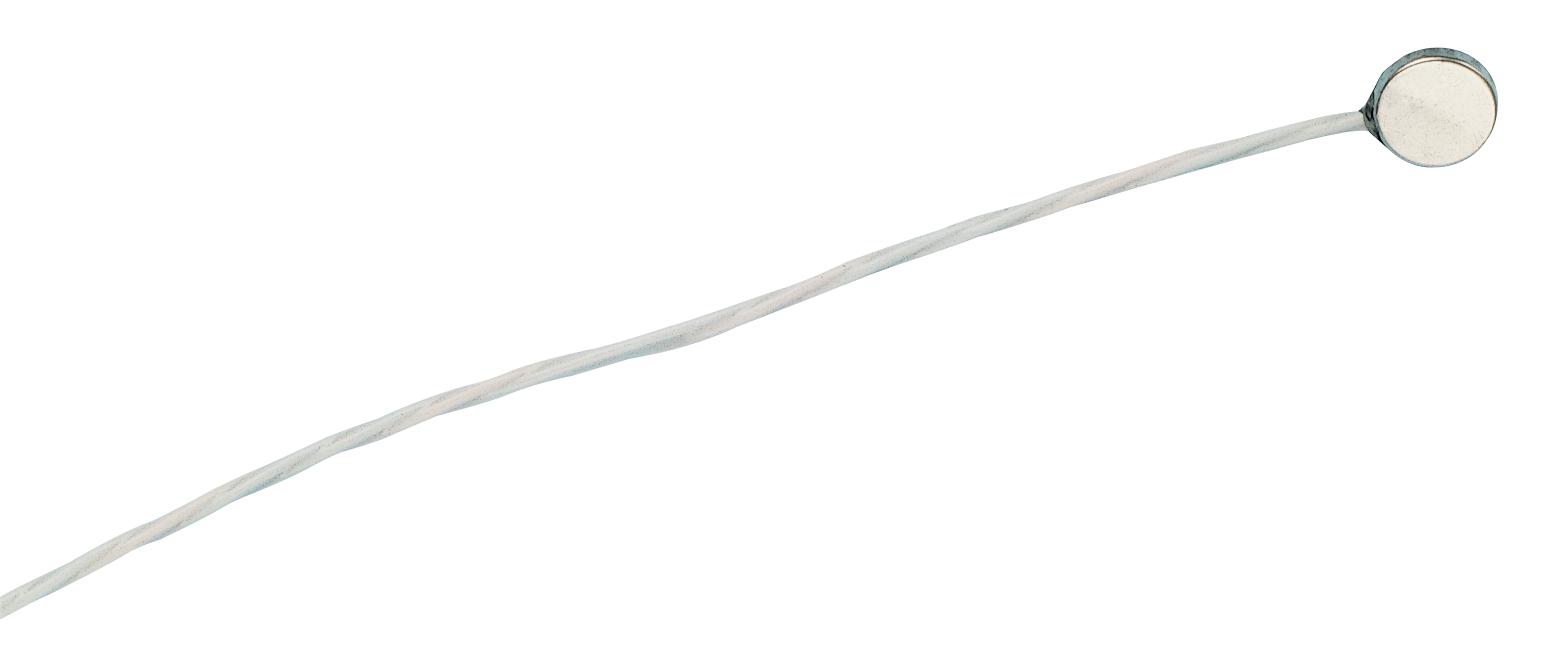

OMEGA RTD809 Industrial RTD Temperature Sensor
These industrial-grade RTD sensors offer reliable temperature measurement with Class B accuracy, suitable for HVAC, electronics, and process monitoring. Available in various models with stainless steel or plastic housings for surface, liquid, or pressurized system applications. These sensors feature platinum elements with 100.00 +0.12 Ohm resistance at 0°C, and come with 1 meter of PFA-insulated 3-conductor cable. Compatibility with heavy-duty and miniature connectors enhances their versatility for demanding industrial environments, providing precision and durability across a wide temperature range.
OMEGA RTD809 Industrial RTD Temperature Sensor Specifications:
- Sensing element: Platinum with 100.00 +0.12 Ohm resistance at 0°C
- Temperature Coefficient: 0.00385 242/°C
- Cable: 1 meter, 3-conductor, #26 AWG, nickel-plated copper, PFA-insulated
- Maximum Temperature: Up to 750°C for pressurized systems, 230°C for DIN Class A, 230°C for other models
- Housing Options: Stainless steel, plastic, epoxy encapsulation, or aluminum
- Threading/Mounting: NPT, BSPT, flat surface, hex body, or bolt-mounted
- Terminations: Stripped leads, heavy-duty connectors, miniature connectors, or specialized connectors
- Accuracy: Class B ±0.12%
- Temperature Range: -50°C to 750°C depending on model
- Construction: Surface mounting, bolt-mounted, or embedded designs
- Certifications: UL listed, DIN compliance for high-accuracy models
Buy the Omega Series RTD Temperature Sensors: RTD-809
Order Omega RTD-809 online today to secure a high-accuracy platinum RTD sensor with durable PFA-insulated cable and versatile mounting options. Designed for surface temperature measurement, this sensor offers reliable performance in demanding environments including HVAC, electronics, and process control settings. Featuring a 100 ohm platinum element with Class A DIN certification, it provides precise readings up to 230°C, ensuring your critical applications maintain optimal performance. Easy to install and with multiple termination options, this sensor is the perfect choice for professional use.
Buy Omega RTD-809 high-accuracy surface temperature sensor now and experience unmatched reliability and precise measurements for your industrial applications.
Frequently Asked Questions
Where can I buy OMEGA RTD809?
You can click on the BUY or RFQ button to purchase RTD809 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part RTD809?
You can download the RTD809 datasheet or visit the OMEGA website for support.
Who is the manufacturer of RTD809?
OMEGA
