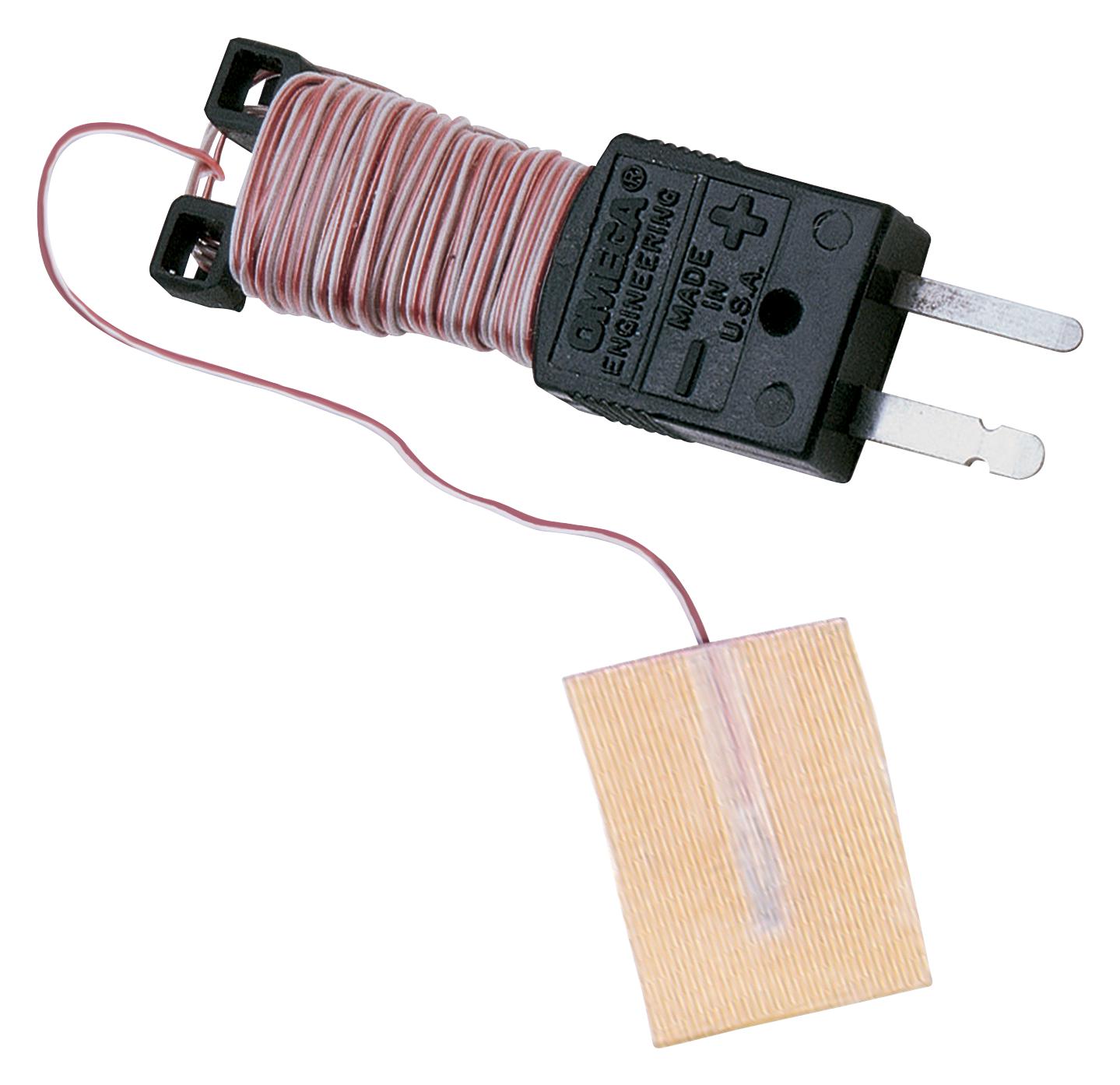

OMEGA SA1T72SC Self-Adhesive Thermocouple
The SA1 Series Thermocouples with Self-Adhesive Backing provide quick and easy temperature measurement with response times better than 0.3 seconds. Available lengths include 1 meter (40 inches), 2 meters (80 inches), and 3 meters (120 inches), and are color-coded for J, K, T, and E calibrations. Rated to 175°C (350°F), they feature PFA-insulated leads with self-adhesive backing for straightforward installation in various industrial and manufacturing applications. Optional molded strain relief and connectors enhance durability and connection reliability.
OMEGA SA1T72SC Self-Adhesive Thermocouple Specifications:
- Response Time: Better than 0.3 seconds
- Temperature Rating: 175°C (350°F)
- Lengths: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches)
- Insulation: PFA coated leads, 30 AWG
- Calibration Types: J, K, T, E
- Lead Color Coding: Correctly color-coded for calibration
- Rated Temperature: Long-term operation at 175°C
- Connector Options: Molded strain relief, SMP male connector, optional M8 or M12 plugs
- Installation: Self-adhesive backing for easy placement
- Size: Smaller than actual size shown in diagrams
Buy the Omega Series SA1 Thermocouple: SA1T72SC
Order the Omega SA1T72SC self-adhesive thermocouple online for superior temperature measurement with response times faster than 0.3 seconds. Designed for easy installation, these thermocouples feature PFA-insulated leads, a rated temperature of 175°C, and are available in lengths of 1, 2, or 3 meters. They are suitable for a variety of industrial applications requiring accurate and fast temperature sensing, with optional connectors and strain relief options for enhanced durability. Trust Omega's quality and reliability for your temperature measurement needs.
Get Omega SA1T72SC thermocouple today—built for fast response, easy installation, and reliable long-term temperature measurement in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA SA1T72SC?
You can click on the BUY or RFQ button to purchase SA1T72SC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA1T72SC?
You can download the SA1T72SC datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA1T72SC?
OMEGA
