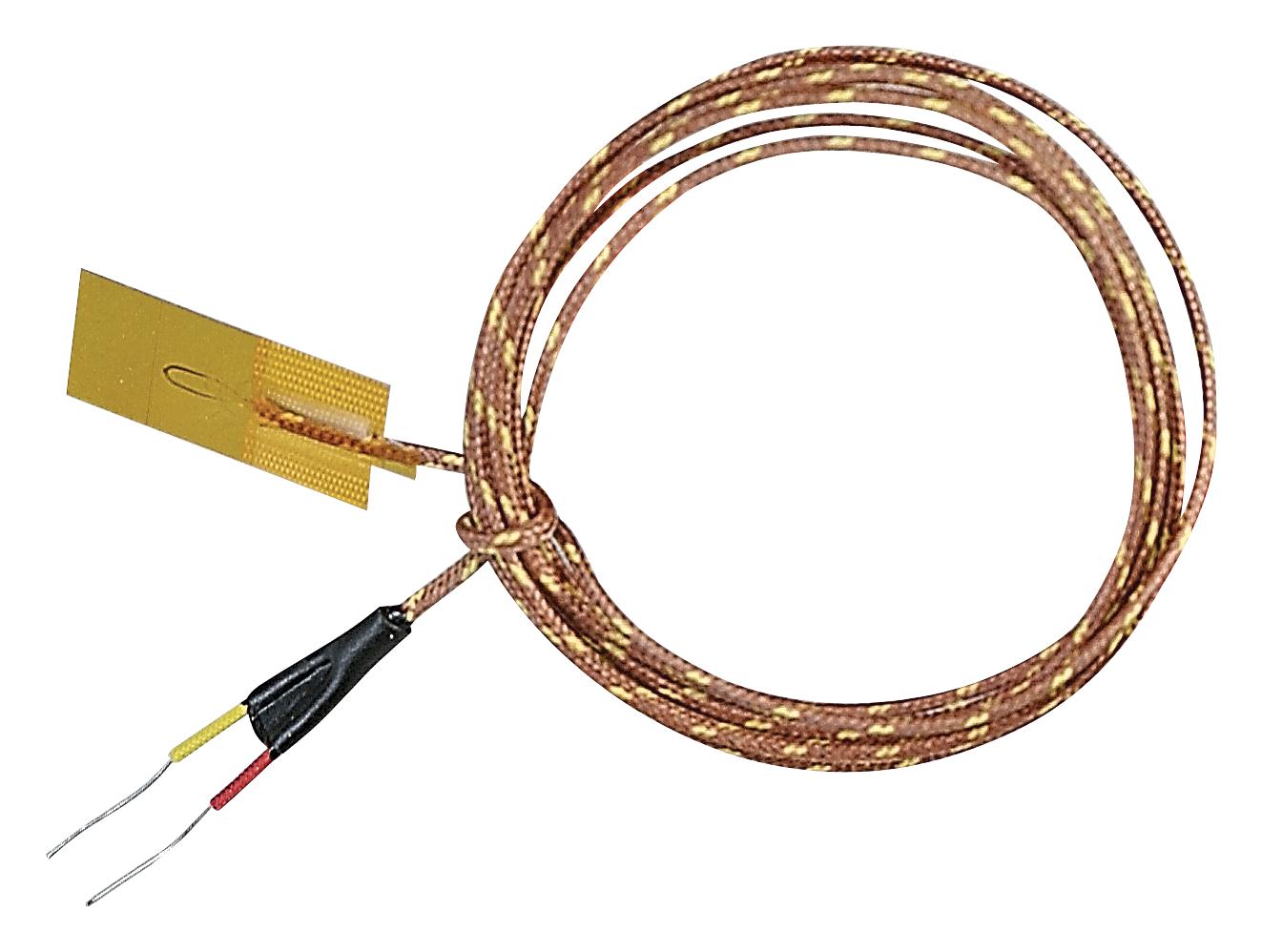

OMEGA SA1XLK72 Surface Thermocouple
The surface thermocouple offers fast response times and high temperature ratings, ideal for industrial temperature monitoring. It features fiberglass-insulated leads rated to 482°C (900°F), with options for self-adhesive mounting or cement-on installation up to 315°C (600°F). Available with molded miniature connectors and optional stainless steel overbraid for durability. The device operates with Type J, K, T, or E calibration elements and includes customizable lengths from 1 to 3 meters. Its quick response and versatile mounting make it suitable for precision temperature measurement in demanding industrial environments.
OMEGA SA1XLK72 Surface Thermocouple Specifications:
- Temperature Rating: Sensor rated to 315°C (600°F), fiberglass leads rated to 482°C (900°F)
- Lead Lengths: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches), custom lengths available
- Lead Insulation: Fiberglass-insulated, self-adhesive backing rated to 260°C (500°F)
- Response Time: Less than 0.15 seconds when properly installed
- Calibration Types: J, K, T, and E available
- Connector: Molded miniature connector with optional strain relief, various plug options including M8, M12
- Durability: Optional stainless steel overbraid for enhanced mechanical protection
- Set Cement: OMEGABOND® high-temperature air set cement, 8 fluid oz, high-temperature epoxy kits available
- Construction: Polyimide insulation with fiberglass junction, quick response time, fast-set epoxy options
- Application: Suitable for electronic component temperature measurement, fabrication, and industrial process control
Buy the Omega SA1XLK72 Series Surface Thermocouple for Industrial Temperature Monitoring
Purchase the Omega SA1XL surface thermocouple online now for fast, reliable temperature measurement in industrial settings. Featuring fiberglass-insulated leads rated to 482°C (900°F), with options for self-adhesive or cement-on mounting, and customizable lengths. Its quick response time of less than 0.15 seconds makes it ideal for high-temperature applications. The device includes miniature connectors, optional stainless steel overbraid for added durability, and is suitable for calibration types J, K, T, or E. Buy online to enjoy swift delivery and dependable performance.
Order your Omega SA1XL surface thermocouple today and ensure fast, accurate temperature monitoring in demanding industrial environments.
