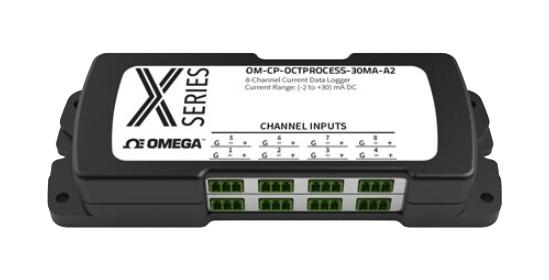

OMEGA OMCPOCTPROCESS30MAA2 Current Data Logger
The OM-CP-ProcessX series 8-channel, 30mA current data logger is a compact, battery-powered device ideal for high-resolution low-level DC current measurements. Capable of capturing data at up to 4Hz with 16-bit resolution, it features a large non-volatile memory for secure data retention and versatile operation, including programmable start times and channel naming. The device supports external power or a replaceable 9V lithium battery, measures 2.70 x 7.25 x 1.22 inches weighing 368 grams, and includes USB connectivity, calibration certificates, and robust black aluminum enclosure, making it suitable for diverse measurement applications.
OMEGA OMCPOCTPROCESS30MAA2 Current Data Logger Specifications:
- Channels: 8
- Input Range: 30 mA
- Resolution: 0.0005 mA
- Maximum Input Voltage: -0.3 V to +3.5 V
- Sampling Rate: Up to 4 Hz
- Memory: 524,032 readings per channel
- Battery: 9 V Lithium (included), 18 months typical life
- Operation Temperature: -20 °C to +60 °C
- Enclosure: Black anodized aluminum, Dimensions: 2.70 x 7.25 x 1.22 inches
- Connectivity: USB-A to Micro USB, 460,800 baud
- Compatibility: Windows XP SP3/7/8/10
- Calibration: Digital, date-stamped calibration
- Protection: Overload protection up to +6A
- Certifications: CE, ROHS
- Weight: 13 oz (368 g)
Buy the Omega Series Current Data Logger: OM-CP-ProcessX 8-Channel 30mA
Purchase the Omega Series OM-CP-ProcessX 8-channel 30mA current data logger online today. This advanced measurement instrument provides high-resolution, accurate low-level DC current readings at up to 4Hz. Equipped with a large non-volatile memory, programmable start times, and channel naming features, it can operate with external power or a user-replaceable 9V battery. Its durable black aluminum enclosure and USB connectivity make it ideal for laboratory and industrial environments, ensuring precise data collection and easy integration into your measurement systems.
Order your Omega Series OM-CP-ProcessX 8-Channel 30mA current data logger today and enhance your low-level DC current measurement projects with reliable, high-resolution data acquisition.
Frequently Asked Questions
Where can I buy OMEGA OMCPOCTPROCESS30MAA2?
You can click on the BUY or RFQ button to purchase OMCPOCTPROCESS30MAA2 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OMCPOCTPROCESS30MAA2?
You can download the OMCPOCTPROCESS30MAA2 datasheet or visit the OMEGA website for support.
Who is the manufacturer of OMCPOCTPROCESS30MAA2?
OMEGA
