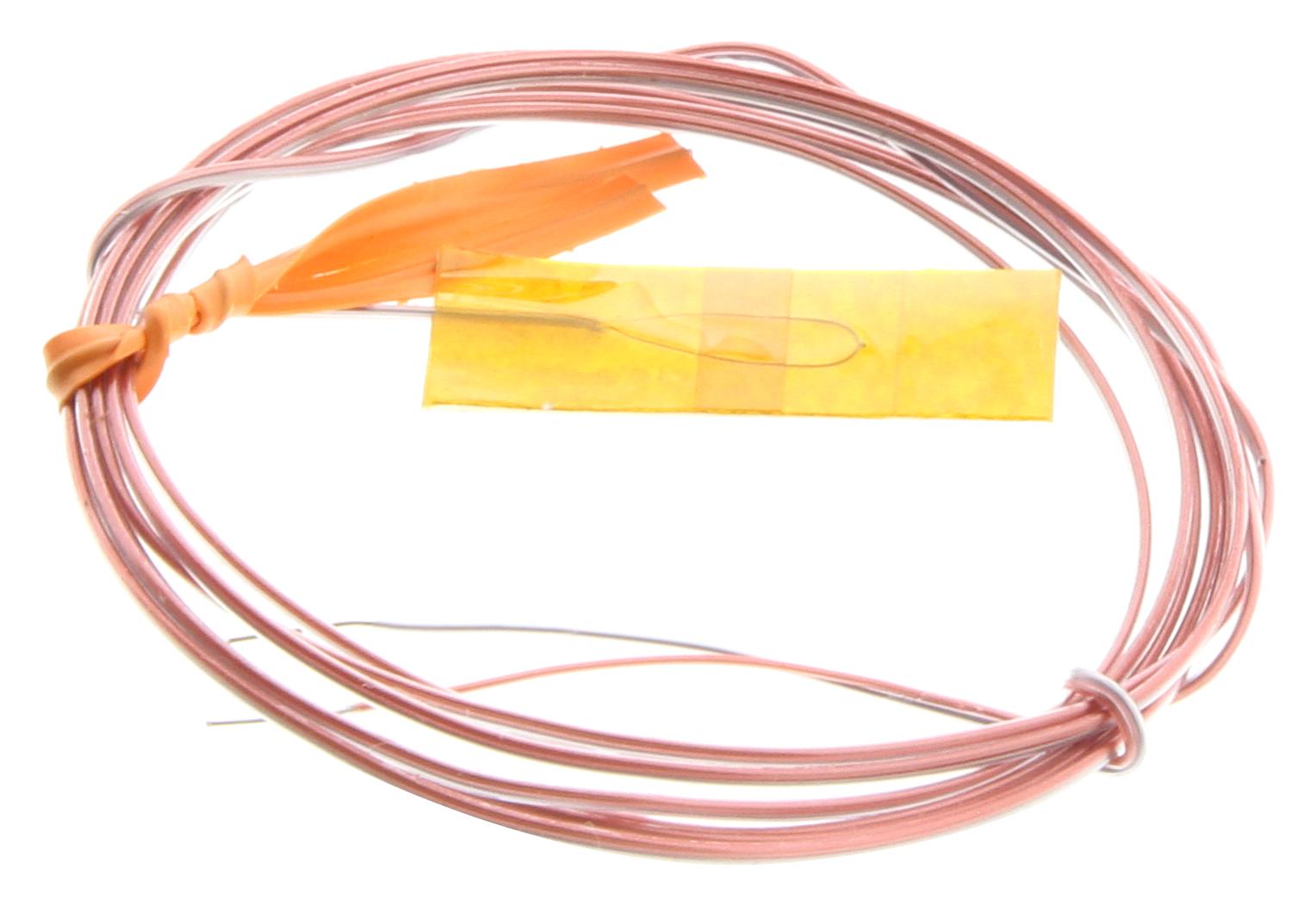

OMEGA SA3T Surface Thermocouple
The SA3 Series Fast Response Surface Thermocouples feature a polyimide carrier with self-adhesive backing, offering quick thermal response due to low mass junction. Designed for outdoor and wet environments, they resist chemicals and oils while maintaining accuracy over a temperature range of -40 to 260°C. Available with ANSI or IEC color coding in Type J, K, T, and E thermocouples, these flexible thermocouples include options with miniature color-coded connectors or stripped leads, suitable for precise surface temperature measurements in challenging conditions.
OMEGA SA3T Surface Thermocouple Specifications:
- Thermocouple Types: J, K, T, E (ANSI or IEC color codes)
- Temperature Range: -40 to 260°C (-40 to 500°F)
- Sensor Temperature: -17 to 260°C (0 to 500°F)
- Connector Temperature: -29 to 180°C (-20 to 356°F)
- Insulation Resistance: 100 MQ minimum at 100 Vde
- Construction: Polyimide tape base with silicone adhesive, paper peel sheet, PFA insulated cable
- Cable: 30 AWG glass-filled nylon or miniature color-coded connector options
- Accuracy: Special limits of error
- Surface Mount: Ungrounded sensor with flexible mounting pad
- Lead Options: Stripped #30AWG solid leads or molded miniature connector
- Dimensions: Length options 1m, 2m, 3m (40
- 80
- 120
Buy the Thermocouples Series SA3: Fast Response Surface Thermocouples
Acquire the SA3 Series fast response surface thermocouples online to ensure fast, accurate surface temperature measurement in outdoor, wet, or chemically challenging environments. Designed with a flexible polyimide carrier and self-adhesive backing, these thermocouples offer excellent chemical and oil resistance with quick thermal response due to their low mass junction. Available with various length options and connector types, they are ideal for precise monitoring in industrial and outdoor applications, providing consistent performance even under sunlight or moisture conditions.
Buy SA3 Series fast response self-adhesive thermocouples now and enjoy reliable, quick temperature detection in outdoor and harsh environments.
Frequently Asked Questions
Where can I buy OMEGA SA3T?
You can click on the BUY or RFQ button to purchase SA3T from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA3T?
You can download the SA3T datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA3T?
OMEGA
