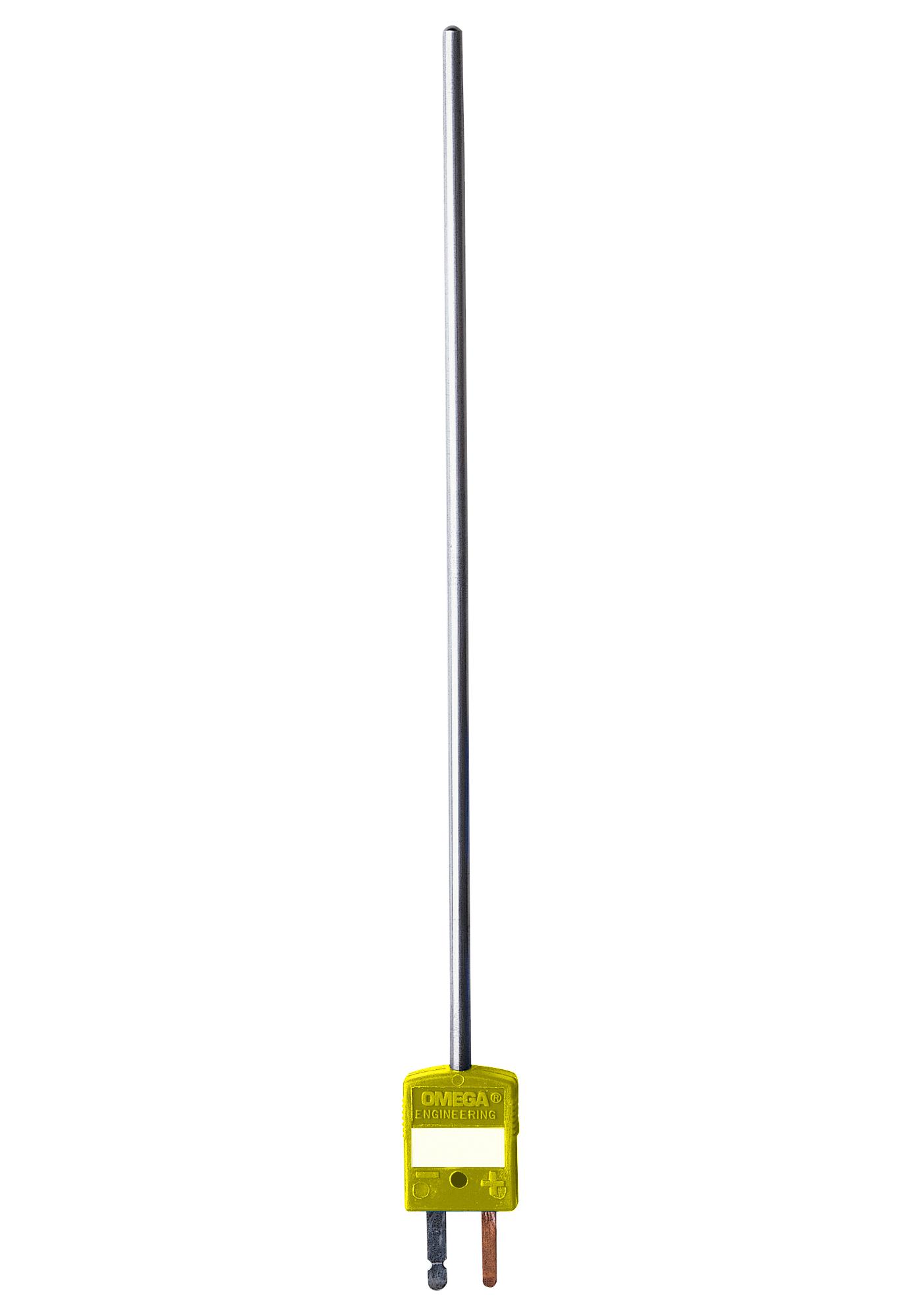

OMEGA KMQSS125G12 Miniature Thermocouple Probe
The KMQSS125G12 is a miniature quick-disconnect thermocouple probe featuring a Type K thermocouple with a 0.125-inch diameter stainless steel sheath, 12-inch length, and grounded junction. Designed for precise temperature measurement in industrial applications, it includes a glass-filled nylon miniature connector body, mating connector, cable clamp, and locking clip, all included free. Compatible with various sheath materials such as Inconel and 304, the probe operates up to 220°C (425°F) and can be ordered with custom lengths and configurations for versatile use in temperature sensing environments.
OMEGA KMQSS125G12 Miniature Thermocouple Probe Specifications:
- Thermocouple Type: K
- Sheath Material: Stainless steel, Inconel, or Super OMEGACLAD XL
- Sheath Diameter: 0.125 inches
- Length: 12 inches (custom lengths available)
- Junction Type: Grounded
- Connector Body: Glass filled nylon miniature connector
- Rated Temperature: Up to 220°C (425°F)
- Includes: Mating connector, cable clamp, locking clip
- Probe Diameter: 0.032 inches and larger supplied with molded connector
- Operating Environment: Industrial temperature sensing applications
Buy the Buy Omega Thermocouple Part Number KMQSS125G12 Online
Order the Omega Miniature Thermocouple Probe KMQSS125G12 online today. Featuring a 0.125-inch diameter stainless steel sheath, 12-inch length, and grounded junction, it ensures accurate temperature readings for industrial applications. The probe includes a glass-filled nylon connector body, mating connector, cable clamp, and locking clip at no extra cost. Built to operate up to 220°C (425°F), this reliable and easy-to-install thermocouple is perfect for temperature monitoring. Shop now for fast, secure delivery and quality assurance.
Get Omega KMQSS125G12 today—designed for precise temperature measurement with quick-disconnect and sturdy stainless steel sheath.
