OMEGA SHXNM Miniature Ceramic Thermocouple Connectors
The SHX series miniature ceramic connectors are designed for high-temperature applications, featuring a high purity alumina body and rated from -29 to 650°C. These connectors include permanently dot-coded versions conforming to ANSI standards and removable dot-coded models for contamination-sensitive environments. Their one-piece ceramic construction ensures durability, with oversized terminal screws allowing easy wiring of stranded or solid wires up to 20 AWG. Ideal for thermocouple wiring in high vacuum furnaces and other precision high-temperature environments, offering reliable, long-lasting performance.
OMEGA SHXNM Miniature Ceramic Thermocouple Connectors Specifications:
- Material: Alumina ceramic
- Temperature Range: -29°C to 650°C (-20°F to 1200°F)
- Construction: One-piece ceramic with removable cap
- Terminal Screws: Oversized, compatible with stranded or solid wire up to 20 AWG
- Color-Coded Dot: Conforms to ANSI standards, removable for contamination-sensitive applications
- Rated for high vacuum furnaces and high-temperature environments
- Rated Voltage: Not specified, suitable for thermocouple signals
- Connector Types: Male (M) and Female (F), glazed and unglazed options available
- Standards: ANSI and OEGA compliance
- Features: Removable cap, dot coding, oversized terminal screws, ceramic construction for durability

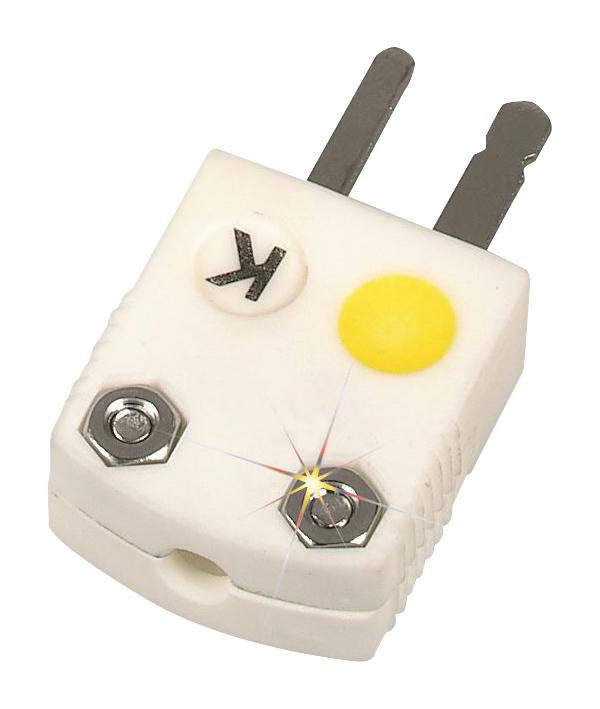

Buy the Omega Series SHX Ceramic Thermocouple Connectors: Part Number SHXNM
Purchase Omega SHX miniature ceramic thermocouple connectors online today. Designed for high temperatures up to 650°C, these durable, high-purity alumina connectors feature removable caps, oversized terminal screws, and ANSI compliance. Perfect for precision thermocouple wiring in high vacuum furnaces and other sensitive industrial environments. Easy to wire with stranded or solid wires up to 20 AWG, available in glazed or unglazed versions with color-coded dots for easy identification. Ensure reliable, long-lasting performance by ordering online now.
Buy Omega SHX connectors now and experience unmatched reliability and performance in high-temperature industrial thermocouple applications.
Frequently Asked Questions
Where can I buy OMEGA SHXNM?
You can click on the BUY or RFQ button to purchase SHXNM from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SHXNM?
You can download the SHXNM datasheet or visit the OMEGA website for support.
Who is the manufacturer of SHXNM?
OMEGA
