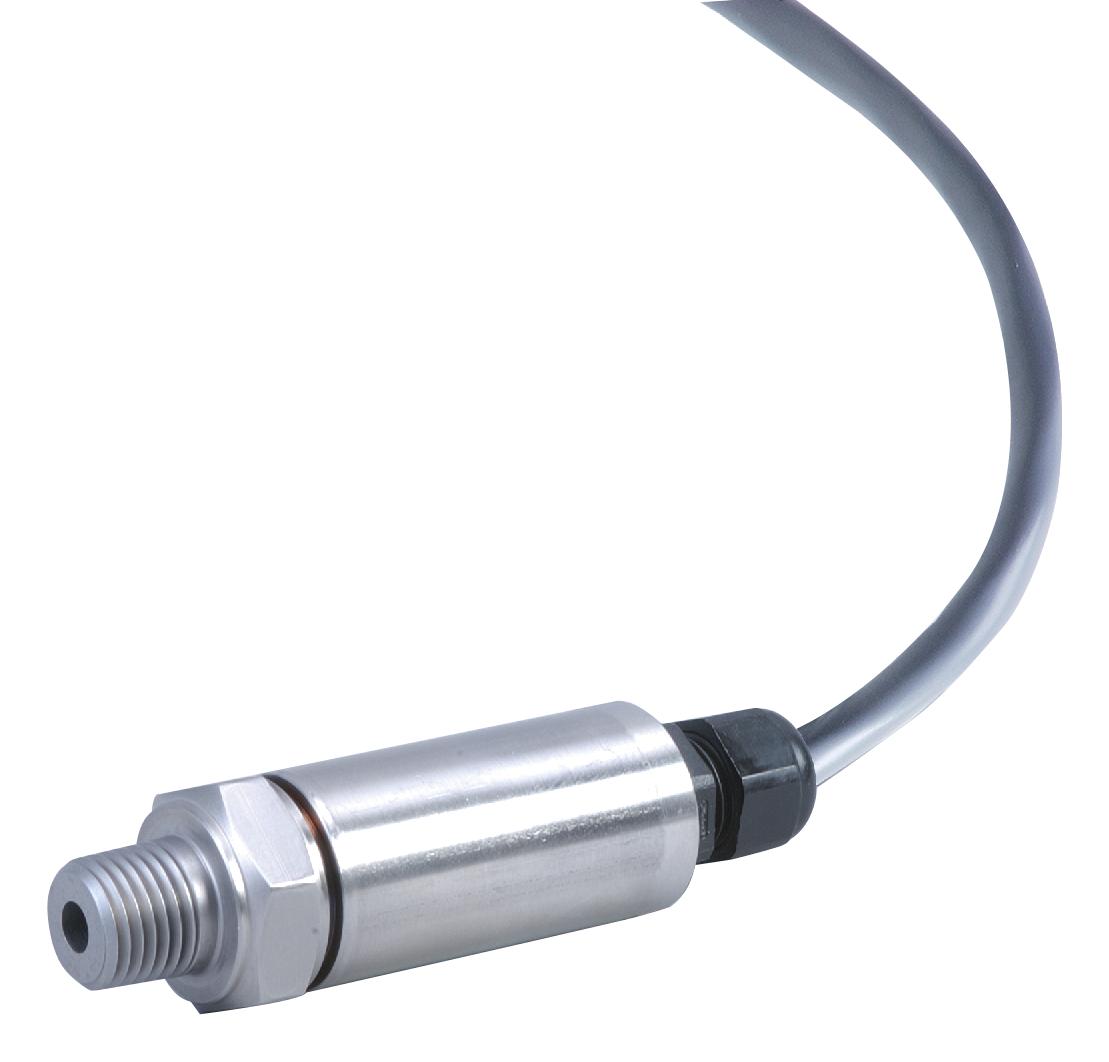

OMEGA PX309015A5V pressure transducer
The PX309-015A5V from Omega is a high-performance pressure transducer designed for accurate absolute pressure measurement in industrial applications. Using advanced silicon technology, it offers ±0.25% FS accuracy at 25°C, including linearity, hysteresis, and repeatability. Its all stainless steel construction ensures durability, supported by an IP65 rugged, solid-state design. It measures from 0 to 1 bar (0 to 15 psi) with a 0-5VDC output, operates on 9-30VDC, and provides excellent long-term stability. The device withstands shock and vibration, includes a 1.5-meter cable, and comes with a NIST-traceable calibration, making it ideal for sensing and instrumentation tasks.
OMEGA PX309015A5V pressure transducer Specifications:
- Excitation: 9 to 30 Vdc (<10 mA), reverse polarity and overvoltage protected
- Output: 0 to 5 Vde
- Accuracy: ±0.25% FS at 25°C, includes linearity, hysteresis, repeatability
- Zero Offset: +2% FSO; +4% for 1 and 2 psi ranges
- Span Setting: +2% FSO; +4% for 1 and 2 psi ranges
- Total Error Band: +2% FSO, includes various errors excluding 1 psi and 2 psi ranges
- Long-Term Stability: ±0.25% typical over 1 year
- Operating Temperature: -40 to 85°C
- Proof Pressure: 3x capacity for <50 psig, 2x for 2100 psi
- Burst Pressure: 5x capacity or 25 psi
- Response Time: <1 ms
- Shock: 50 g, 11 ms half-sine shock
- Vibration: +20 g
- Wetted Parts: 316 SS for ranges up to 50 psig, 17-4 PH SS for higher ranges
- Pressure Port: %-18 MNPT
- Electrical Connections: 1.5 m cable (for PX309), mini DIN (PX319), twist-lock connector (PX329)
- Weight: 155 g
- Response Time: <1 ms
Buy the Omega Series PX Pressure Transducer: PX309015A5V
Purchase the Omega PX309-015A5V pressure transducer online today for precise absolute pressure measurement with a rugged stainless steel design. It offers high stability, ±0.25% accuracy, and quick response time, making it ideal for industrial sensing, instrumentation, and automation projects. Comes with a 5-point NIST-traceable calibration, 1.5-meter cable, and supports operating temperatures from -40°C to 85°C. Ensure reliable data collection and long-term performance by ordering this durable and accurate pressure sensor online now.
Get Omega PX309-015A5V today—built for precision and long-lasting durability in pressure sensing and instrumentation.
