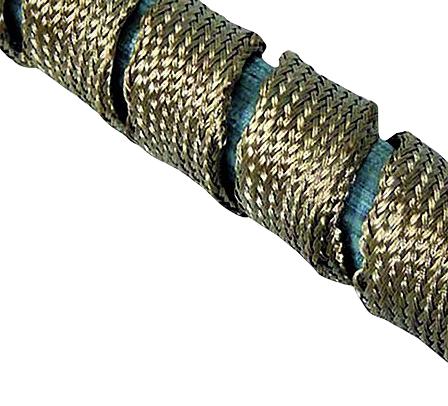

OMEGA STH051020 Resistance Heating Tape
Heavy insulated braided tape designed for high-temperature applications. Made by reinforcing standard tape with layers of Samox yarn for added durability. Dimensions are 1/2 inch width and 2 feet length. Capable of withstanding maximum exposure temperatures up to 760°C (1400°F), these tapes feature stranded resistance wires insulated with double braided Samox for superior insulation. Suitable for direct contact on conductive surfaces, especially in industrial heating processes. Available with leads, these tapes ensure high dielectric strength exceeding 2000V, making them ideal for demanding heating applications requiring reliability and durability.
OMEGA STH051020 Resistance Heating Tape Specifications:
- Heating Elements: 36-40 gage stranded resistance wire
- Heating Elements Insulated: Double braided Samox
- Dielectric Strength: In excess of 2000V
- Lead Wires: Emerge from opposite ends into separate sides of molded plug
- Maximum Temperature: 760°C (1400°F)
- Dimensions: 1/2 inch width, 2 feet length
- Material: Resistance wire with Samox insulation
- Suitable for direct contact on conductive surfaces
- Application: High-temperature industrial heating
- Insulation: Braided Samox yarn for durability and insulation
- Voltage Rating: Exceeds 2000V dielectric strength
- Construction: Resists high temperature and mechanical stress
- Usage: For industrial heating tapes and resistance heating elements
Buy the Samox 051020 – Reliable High-Temperature Resistance Tape for Industrial Applications
Order the resistance heating tape with Samox insulation online today. Designed for high-temperature environments, this durable tape withstands up to 760°C, ensuring reliable performance in industrial applications. Perfect for direct contact on conductive surfaces, its braided Samox insulation provides superior durability and electrical insulating properties. With available leads and dimensions of 1/2 inch width and 2 feet length, it is suitable for demanding heating systems. Purchase now to ensure your industrial heating solutions are efficient and long-lasting with our premium resistance tapes.
Buy Samox 051020 now and experience unmatched durability and high-temperature resistance for industrial heating needs.
Frequently Asked Questions
Where can I buy OMEGA STH051020?
You can click on the BUY or RFQ button to purchase STH051020 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part STH051020?
You can download the STH051020 datasheet or visit the OMEGA website for support.
Who is the manufacturer of STH051020?
OMEGA
