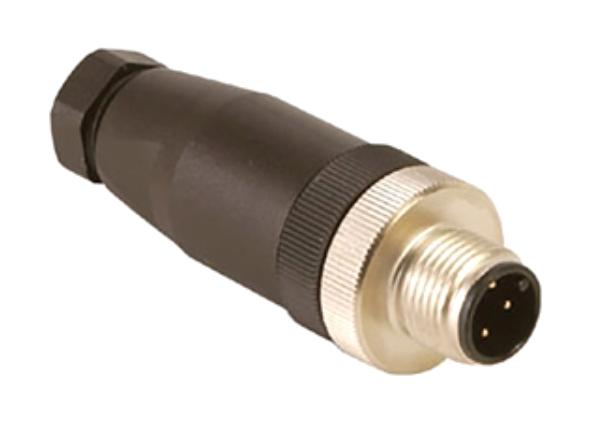

OMEGA M125SMFM Thermocouple Connectors
The M12-FM Series field mount thermocouple connectors are designed for accurate, reliable connections in industrial applications. Available as straight or right-angled connectors, they feature thermocouple pins and sockets, ensuring improved accuracy over standard connectors, especially under temperature gradients. Rated IP67, they withstand harsh environments and maximum temperatures of 85°C. These connectors easily attach to existing sensors or extension cables with #18 to #24 AWG conductors, offering versatile connection options with screw-type fastening for secure attachment. Suitable for various thermocouple types including K, J, T, and E, they ensure precise measurements across different industrial thermocouple setups.
OMEGA M125SMFM Thermocouple Connectors Specifications:
- Material: Metal with IP67 sealing
- Maximum Temperature: 85°C (185°F)
- Connection Type: Screw-type, quick attachment to existing sensors or cables
- Cable Diameter: 4-6 mm (0.16-0.24 inch)
- Conductor Range: #18 to #24 AWG
- Connector Styles: Straight and right angled
- Thermocouple Types Supported: K, J, T, E
- Pin and Socket Material: Chromel, Iron, Copper, Alumel, Constantan
- Environmental Resistance: IP67 rated, suitable for harsh environments
- Design: Both male and female connectors, including dual-element options
- Temperature Rating: Max 85°C (185°F)
Buy the Omega Series M12 Thermocouple Connectors: M125SMFM
Purchase Omega M125SMFM thermocouple connectors online today and upgrade your industrial temperature sensing systems. These high-quality M12 connectors are designed for durability and precision, ensuring accurate readings even in demanding environments. Available in straight and right-angled styles, they support various thermocouple types including K, J, T, and E, offering secure screw-type connections for easy installation. Rated IP67, they resist dust and water, making them ideal for harsh industrial conditions. Trust Omega’s proven quality for reliable, precision temperature measurement solutions suitable for diverse applications.
Buy Omega M125SMFM now and experience unmatched reliability and performance with versatile, IP67-rated thermocouple connectors for industrial temperature measurements.
Frequently Asked Questions
Where can I buy OMEGA M125SMFM?
You can click on the BUY or RFQ button to purchase M125SMFM from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part M125SMFM?
You can download the M125SMFM datasheet or visit the OMEGA website for support.
Who is the manufacturer of M125SMFM?
OMEGA
