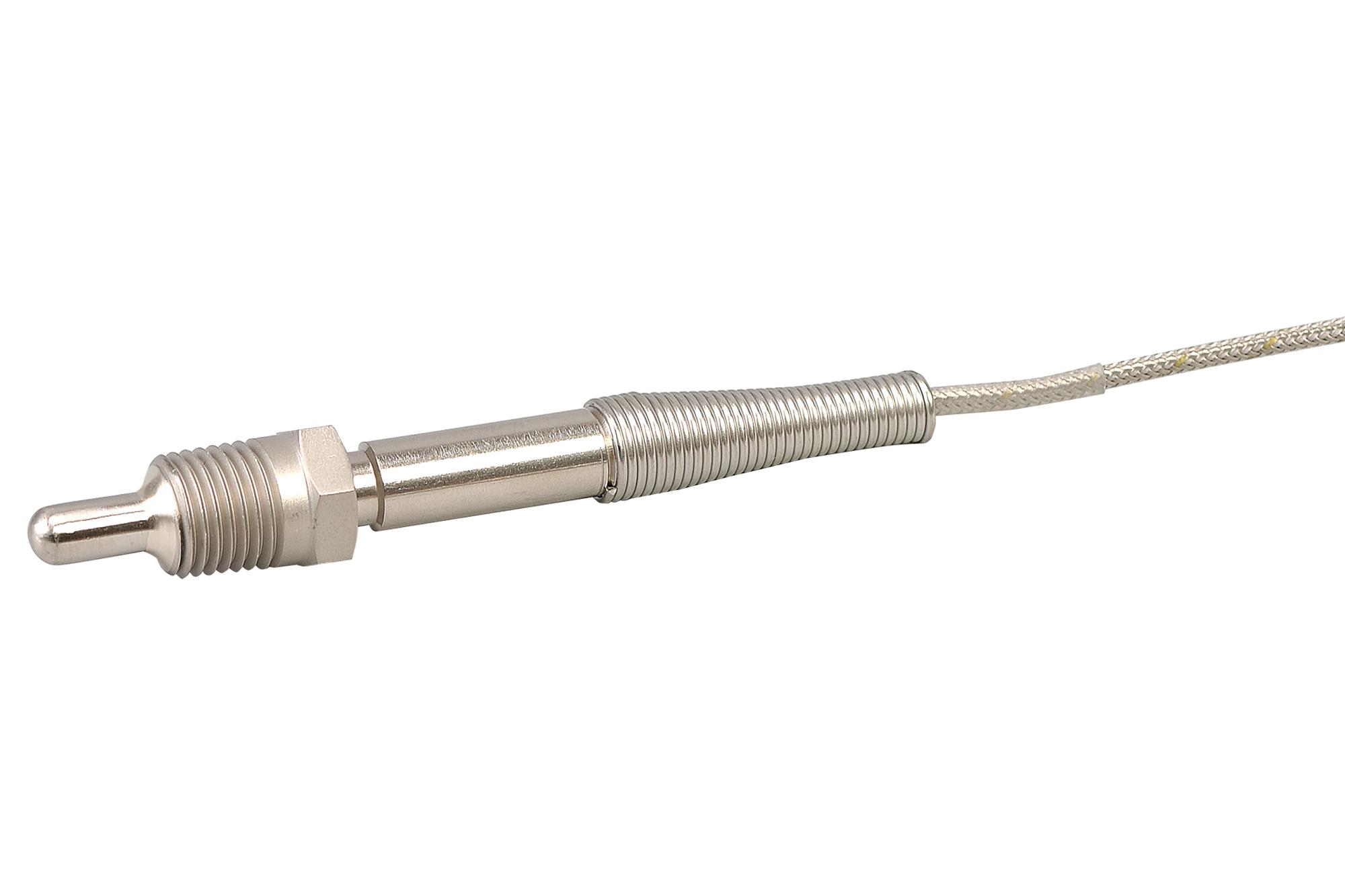

OMEGA TCJNPTU72 Industrial Thermocouple Probe
The rugged thermocouple probe features a 304 stainless steel design with strain relief spring, offering resistance to abrasion and cuts. It includes single and dual element options with NPT mounting threads, suitable for vessel applications, pressurized chambers, and pipelines. The probe withstands pressures up to 2500 psi at ambient temperatures and operates in temperatures up to 650°C (1200°F). It has a stainless steel braid over fiberglass lead wire, TTL connectors, and customizable features including tip diameters, lengths, and thread types for versatile industrial temperature measurement and monitoring.
OMEGA TCJNPTU72 Industrial Thermocouple Probe Specifications:
- Material: 304 stainless steel
- Lead Wire: 4 20 AWG, stranded, stainless steel overbraid
- Temperature Range: up to 650°C (1200°F)
- Transition Joint Temperature: up to 480°C (900°F)
- Pressure Rating: withstands pressures up to 2500 psi at ambient
- Mounting Thread: NPT (1/8, 1/4), customizable
- Junction Type: Grounded, Ungrounded, or Exposed
- Lead Length: Standard 72 inches, configurable
- Connector: SMPW standard, optional J, K, T, E types
- Design Features: strain relief spring, resistance to abrasion, flexible overbraid
Buy the OMEGA TCJNPTU72 – Reliable Temperature Sensor for Industrial Applications
Purchase the durable industrial thermocouple probe online to ensure precise temperature measurement in challenging environments. Featuring stainless steel construction, strain relief, and customizable options, this probe is ideal for vessel applications, pipelines, and pressurized chambers. It withstands pressures up to 2500 psi and operates effectively up to 650°C (1200°F). With flexible lead wires and various connector options, it offers reliable performance for temperature monitoring and control in industrial settings. Order now for fast, secure online delivery and seamless integration into your system.
Order your OMEGA Series TCJNPTU72 thermocouple probe today and ensure accurate temperature monitoring in harsh industrial environments with dependable quality.
