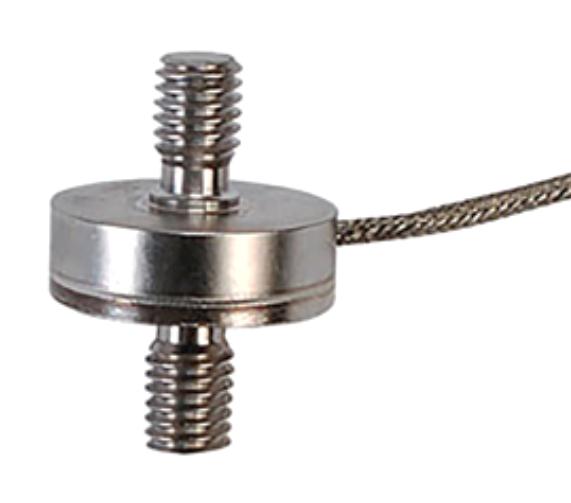

OMEGA LCM201300N Load Cell
The LCM201300N is a stainless steel subminiature load cell designed for industrial automation and robotic applications. With a 19 mm diameter and dual mounting studs, this compact sensor delivers precise tension and compression measurements from 0-300 N (0-67 lb). It features a 5-point calibration, IP54 protection, and a 2 mV/V nominal output. Suitable for demanding environments, it offers high accuracy (+1.0% FSO), long-term reliability, and operates within -54 to 121°C, making it ideal for small system integration and robotic control tasks.
OMEGA LCM201300N Load Cell Specifications:
- Diameter: 19 mm (0.75 inches)
- Material: Stainless steel
- Excitation Voltage: 10 Vdc, 15 Vdc max
- Output: 2 mV/V nominal
- Accuracy: +1.0% FSO (linearity, hysteresis, repeatability)
- Calibration: 5-point (0%, 50%, 100%, 50%, 0%) in tension
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Protection Class: IP54
- Zero Thermal Effect: 0.018% FSO/°C
- Span Thermal Effect: 0.018% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: ≥360Ω
- Output Resistance: 350Ω ±10Ω
- Electrical Connection: 4-conductor shielded cable, 5 ft long
- Dimensions: 14.28 mm (UNF) threading, 4.5 m cable length
- Includes calibration traceable to NIST and shunt data
Buy the Omega Series L€201/LEM201 Tension Compression Load Cell: LCM201300N
Enhance your industrial automation or robotic system with the high-precision stainless steel load cell. The LCM201300N offers a compact 19 mm design, delivering accurate tension and compression measurements from 0-300 N. Its durable construction and 5-point calibration ensure long-term reliability in demanding environments. With IP54 protection and an operating temperature range extending to -54°C, this load cell is perfect for small system integration, providing consistent performance and easy installation for precise load monitoring in modern automation and robotic applications.
Order your Omega Series L€201/LEM201 LCM201300N today and ensure reliable tension and compression measurements for your automation projects.
Frequently Asked Questions
Where can I buy OMEGA LCM201300N?
You can click on the BUY or RFQ button to purchase LCM201300N from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCM201300N?
You can download the LCM201300N datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCM201300N?
OMEGA
