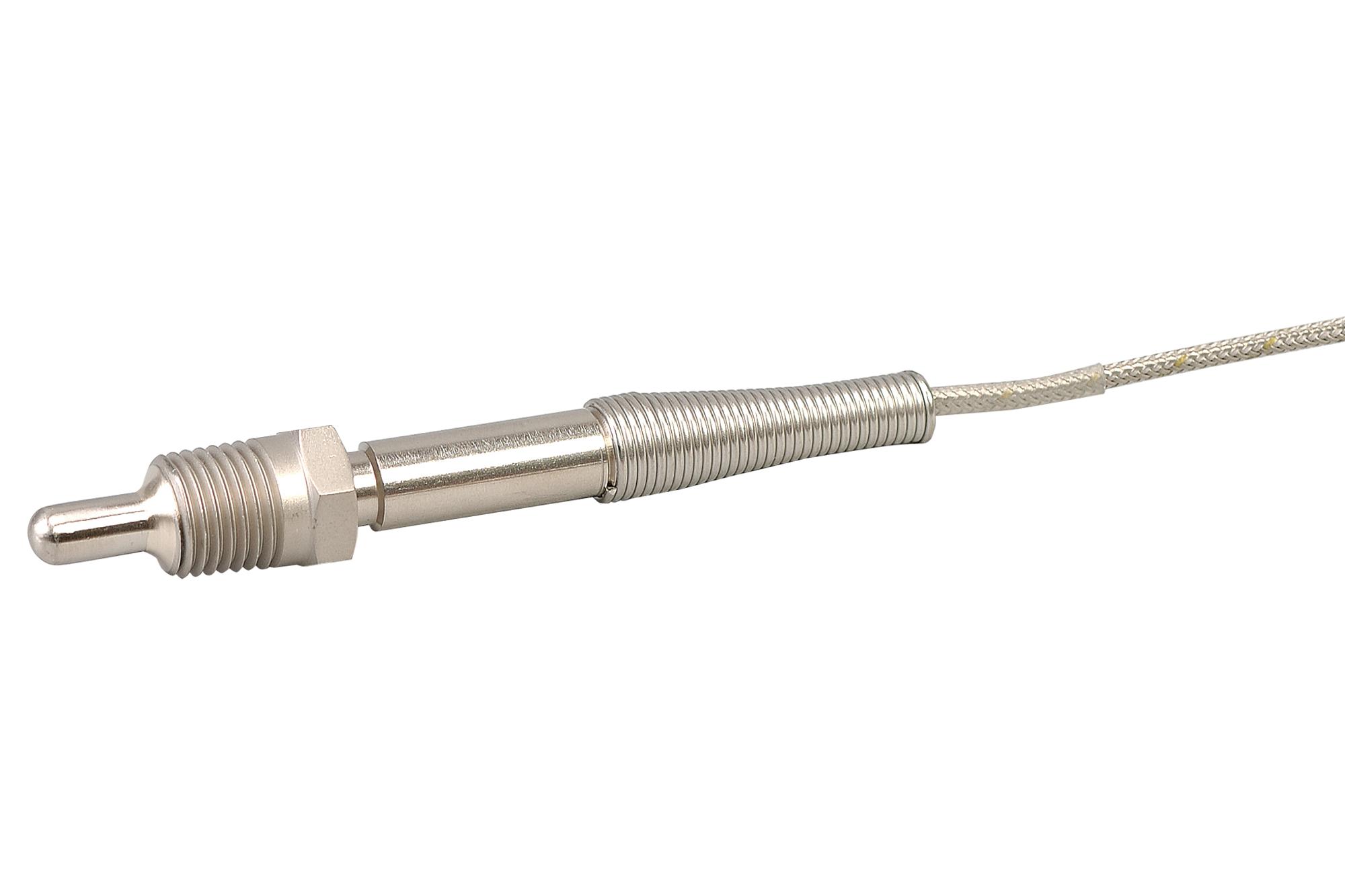

OMEGA TCKNPTG72 Industrial Thermocouple Probe
The Rugged Pipe Plug Thermocouple Probe series offers durable, corrosion-resistant stainless steel design with strain relief spring, suitable for high-pressure vessel and pipeline measurements. It features both grounded and ungrounded junction options, with single and dual element configurations, and customizable NPT threads, tip diameters, and lengths. With a temperature rating up to 650°C, these probes include optional overbraid protection, and stainless steel braid over fiberglass leads, resistant to abrasion and cuts. Ideal for gas streams, pressurized chambers, and industrial process monitoring, this series ensures precise, reliable temperature sensing in harsh environments.
OMEGA TCKNPTG72 Industrial Thermocouple Probe Specifications:
- Material: 304 stainless steel with stainless steel overbraid over fiberglass lead wire
- Lead Wire: 4 20 AWG, stranded for NPT 1/8 and 1/4 inch threads
- Temperature Range: to 650°C (1200°F)
- Transition Joint/Cable Temperature Range: to 480°C (900°F)
- Pressure Resistance: withstands pressures up to 2500 psi at ambient temperatures
- Junction Types: Grounded, Ungrounded, or Exposed
- Junction Design: Exposed for air temperature measurement and gas stream monitoring
- Mounting Thread: NPT 1/8, 1/4, Dual elements available
- Custom Options: Different NPT threads, tip diameters, tip lengths, flush tip available
- Connection: Standard stripped leads, optional SMPW connectors
- Probe Lengths: specify up to 80 inches, extra length available via additional charges
- Housing: single and dual element configurations, suitable for harsh environments
- Application: Vessel, pipeline, pressurized chambers, gas monitoring, industrial process control
Buy the Omega Series Thermocouple NPT: TCKNPTG72
Order the Omega thermocouple probe TCKNPTG72 online today for reliable high-temperature measurement in industrial applications. Designed with stainless steel and flexible leads, this probe withstands harsh environments and pressures up to 2500 psi. The dual and single element configurations, along with custom NPT threading options, ensure perfect fit and accuracy for vessel, pipeline, and gas stream monitoring. Its robust construction and temperature ratings up to 650°C make it suitable for demanding industrial processes. Enjoy fast shipping and expert support with your purchase.
Get Omega TCKNPTG72 today—built for precision and long-lasting durability in industrial temperature measurement.
