OMEGA SHXNIM Ceramic Thermocouple Connectors
The SHX series miniature ceramic connectors are designed for high-temperature applications up to 650°C, ideal for thermocouple wiring in vacuum furnaces and other extreme environments. Featuring a one-piece ceramic body with removable cap, oversized terminal screws for easy wiring, and code conforming to ANSI standards, these connectors ensure long service life and contamination-free operation. Available in glazed or unglazed versions with color-coded dots for quick identification, they support stranded or solid wires up to 20 AWG, making them versatile for precise temperature sensing and industrial processes.
OMEGA SHXNIM Ceramic Thermocouple Connectors Specifications:
- Temperature Rating: -29 to 650°C (-20 to 1200°F)
- Material: Ceramic construction with one-piece design
- Wire Compatibility: Stranded or solid wire up to 20 AWG
- Connector Type: Male and female options, glazed or unglazed versions
- Color Coding: Dot-coded to ANSI standards, removable for contamination-sensitive applications
- Construction: Extra heavy-duty with oversized terminal screws
- Design Features: Removable cap for easy wiring, compatible with fine gage thermocouple wires
- Standards Conformance: ANSI and OMEGA standards for high accuracy and safety
- Application: Suitable for high vacuum furnaces, industrial temperature measurement, and thermocouple wiring
- Additional Features: Two-piece ceramic, long-lasting with easy wiring access

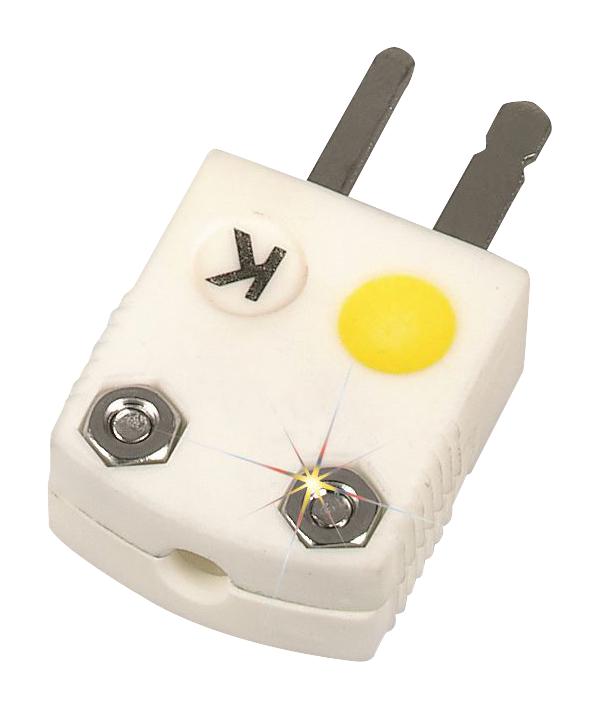

Buy the Omega Series SHX Ceramic Thermocouple Connectors: SHXNIM
Order Omega ceramic thermocouple connectors today and ensure high-temperature accuracy with durable, contamination-free, and easy-to-install solutions. These connectors support temperatures up to 650°C, feature oversized terminal screws for straightforward wiring, and are designed to meet ANSI standards for reliable industrial thermocouple connections. Available in glazed or unglazed versions with removable color-coded dots for quick identification, they are perfect for high vacuum furnaces, temperature monitoring, and extreme environments, providing long-lasting performance and precise temperature sensing for your critical applications.
Buy Omega series SHX ceramic miniature connectors now and experience unmatched reliability, high-temperature performance, and contamination-free operation.
