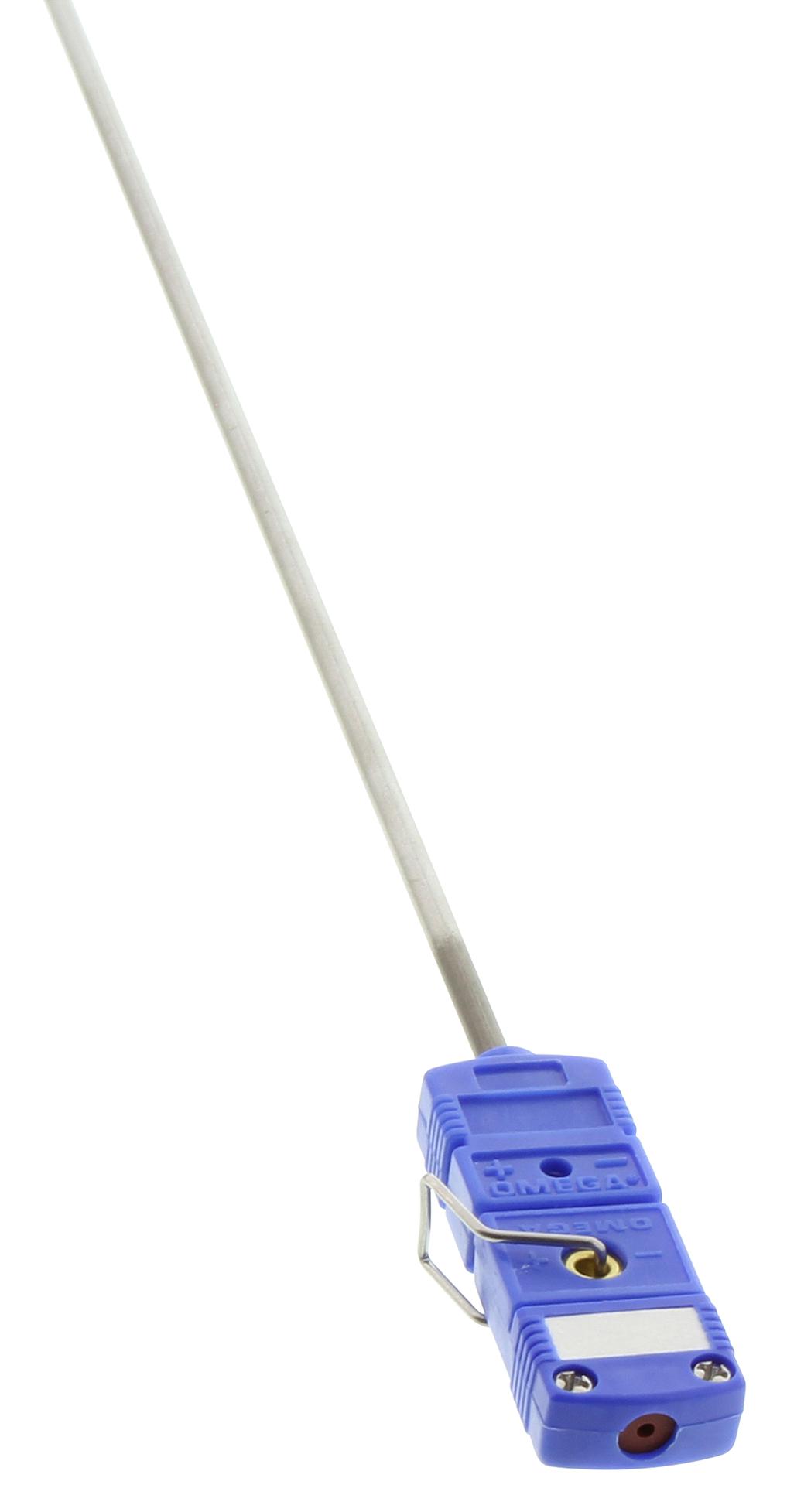

OMEGA TMQSS125U12 Miniature Thermocouple
The product consists of quick disconnect thermocouples with miniature connectors designed for industrial temperature measurement. These probes feature standard and metric sizes, with options for grounded, ungrounded, or exposed junctions. Constructed with stainless steel or Inconel sheaths, and with a glass-filled nylon connector body rated to 220°C (425°F), they offer reliable performance in challenging environments. Available in various lengths and diameters, including custom options, these thermocouples are suitable for precise temperature sensing across diverse industrial applications, ensuring durability and easy integration.
OMEGA TMQSS125U12 Miniature Thermocouple Specifications:
- Connector Body: Glass filled nylon
- Rated to 220°C (425°F)
- Material: 304, 310, 316, 321 stainless steel, Inconel
- Sheath Diameter: from 0.010 to 0.125 inches
- Sheath Lengths: standard 6 and 12 inches, custom lengths available
- Junction Types: grounded, ungrounded, or exposed
- Mating Connector: included with cable clamp and locking clip
- Probe Diameter: 0.032 inches and larger with molded connector; smaller probes with removable connector
- Temperature Resistance: suitable for high-temperature industrial environments
- Connection: Color-coded SMP miniature connector
- Additional Options: various sheath materials including Super OMEGACLAD XL
Buy the Omega Subminiature Thermocouple – Reliable Temperature Sensor for Industrial Applications
Purchase Omega miniature quick disconnect thermocouples today for precise and reliable temperature measurement in industrial environments. Featuring sturdy stainless steel or Inconel sheaths, these sensors offer excellent durability. They come with standard or custom lengths, grounded or ungrounded junctions, and easy-to-connect miniature connectors, ensuring seamless integration into your systems. Ideal for high-temperature applications up to 220°C, these thermocouples deliver accurate readings consistently. Order now to enhance your industrial process control with proven, high-quality temperature sensors from Omega.
Buy Omega subminiature quick disconnect thermocouples now and experience unmatched reliability and performance in industrial temperature sensing.
