OMEGA HTMG1CU616SC50 High-Temperature Heater Wire
High-temperature heater hook-up wire designed for industrial heating applications, including furnaces, kilns, and food service equipment. The HTMG series features stranded nickel-coated copper conductors rated for up to 450°C (842°F), CSA certified, NRTL, and UL listed. Available in various gauges, this mica-glass insulated wire resists high temperatures and offers excellent durability. Its construction includes treated glass braid, mica tapes, and overbraid for enhanced thermal and electrical performance. Suitable for flexible, high-temperature connections in demanding environments, ensuring safety and reliability.
OMEGA HTMG1CU616SC50 High-Temperature Heater Wire Specifications:
- Conductor Material: Nickel-coated copper
- Conductor Temperature Rating: 450°C (842°F)

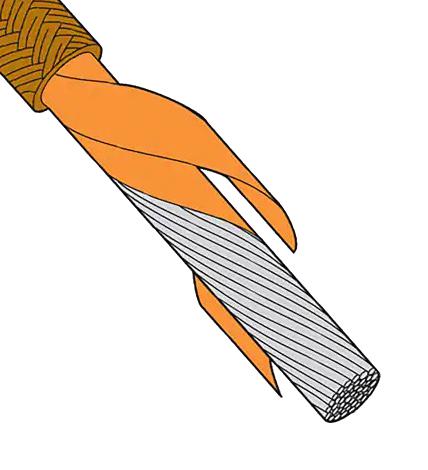

- Insulation: Treated glass braid and mica tapes with overbraid
- Gauges: 8, 10, 12, 14, 16, 18, 20, 22 AWG
- Voltage Ratings: 300V, 600V
- Nominal Outer Diameter: Ranges from 2.0 mm (0.08 inch) to 6.1 mm (0.26 inch)
- Stranded Configuration: 7x30, 10x30, 16x30, 26x30, 41x30, 65x30, 105x30, 133x429
- Weight per 300 meters: From 5.5 lbs to 75.5 lbs depending on gauge
- Certifications: CSA Certified, NRTL, UL Listed
- Application: Industrial heating, furnace element leads, kilns, food equipment
Buy the Buy Omega Heater Hook-Up Wire Part Number HTMG1CU616SC50 Online
Order Omega high-temperature heater wire online today for top-grade insulation and durability in industrial environments. Designed with mica-glass insulation, nickel-coated copper conductors, and CSA certification, this wire excels in high-temperature applications up to 450°C. Available in multiple gauges, it ensures safe, flexible, and reliable connections for furnaces, kilns, and food service equipment. Purchasing online guarantees quick delivery and the assurance of genuine Omega quality, making it an ideal choice for professional heating and industrial projects.
Buy Omega HTMG1CU616SC50 heater wire now and experience reliable high-temperature connections for industrial heating and furnace applications.
Frequently Asked Questions
Where can I buy OMEGA HTMG1CU616SC50?
You can click on the BUY or RFQ button to purchase HTMG1CU616SC50 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HTMG1CU616SC50?
You can download the HTMG1CU616SC50 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HTMG1CU616SC50?
OMEGA
