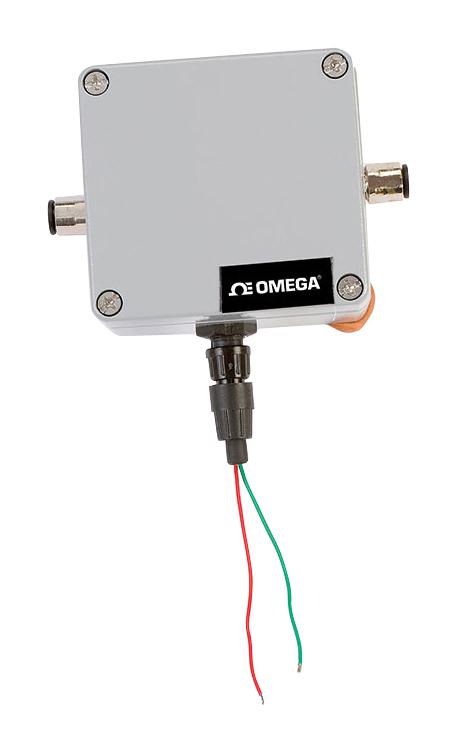

OMEGA TXCO50 CO Air Quality Transmitter
The TXCO-50 is an economical and compact carbon monoxide transmitter designed for industrial applications. Featuring a special electrochemical sensor, it measures CO levels from 0 to 50 ppm with an accuracy of +2% FSD. The device includes a NEMA 4 (IP65) enclosure, reverse voltage protection, and operational temperature range of 0 to 50°C. It provides a 4 to 20 mA output, requires minimal maintenance, and is ideal for gas manufacturing, medical breathing devices, and heat treating processes, offering long-term stability and reliability.
OMEGA TXCO50 CO Air Quality Transmitter Specifications:
- Measuring Range: 0 to 50 ppm CO
- Accuracy: +2% FSD, +5% FSD at temperatures above 50°C
- Response Time: < 30 seconds at 20°C
- Operating Temperature: 0 to 50°C
- Warm Up Time: 2 minutes
- Pressure Range: 0.1 to 1 bar
- Signal Output: 4 to 20 mA/DC
- Voltage: 24 Vdc
- Load Resistance: 470 Q at 18 Vdc, maximum 700 Q
- Housing: NEMA 4 (IP65), painted aluminum
- Dimensions: 80 x 75 x 55 mm
- Connection: 1" tubing
- Weight: 1.0 kg
Buy the Omega TXCO-50 U– Reliable Carbon Monoxide Transmitter for Industrial Applications
Order the Omega TXCO-50 carbon monoxide transmitter online today and ensure precise, long-lasting CO monitoring. Its NEMA 4 (IP65) enclosure guarantees durability, while its 4-20 mA output simplifies integration into control systems. With a calibration lifecycle of up to two years, this device needs minimal maintenance, making it ideal for applications like gas production, medical devices, and heat treatment plants. Enhance safety and efficiency with this cost-effective, reliable solution for CO measurement.
Buy Omega TXCO-50 now and experience unmatched reliability and performance in monitoring CO levels in industrial and medical environments.
Frequently Asked Questions
Where can I buy OMEGA TXCO50?
You can click on the BUY or RFQ button to purchase TXCO50 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part TXCO50?
You can download the TXCO50 datasheet or visit the OMEGA website for support.
Who is the manufacturer of TXCO50?
OMEGA
