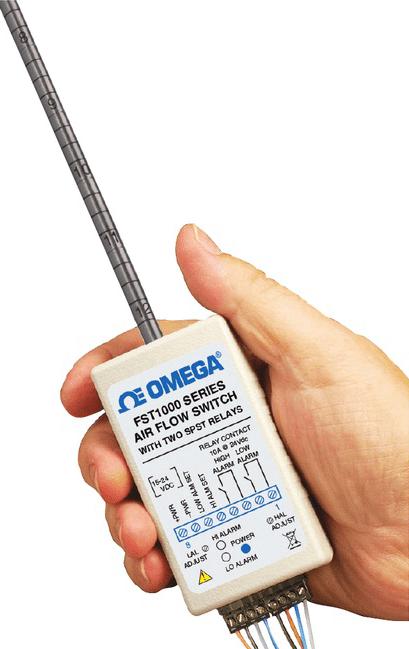

OMEGA FST1001A Air Velocity Sensor
The FST1000 Series air velocity sensors measure airflow using RTD-based sensors that detect heat loss from airflow cooling the sensor. They feature two SPST relay contacts that indicate high and low alarm conditions, with adjustable set points ranging from 0 to 100% of the airflow range. The units are equipped with a green power LED and two red LEDs for high and low alarm indications. Suitable for research labs, HVAC, exhaust hoods, and manufacturing, the probes are available in fixed and remote configurations for versatile airflow measurement.
OMEGA FST1001A Air Velocity Sensor Specifications:
- Air Velocity Range: 0 to 10,000 FPM
- Accuracy: 2% Full Scale (F.S.)
- Air Velocity Probe: 1% OD stainless steel, 305 mm length or remote with 4.6 m shield cable
- Alarm Set Points: Adjustable from 0 to 100%
- Alarm Deadband: 5% of FS
- Built-In Relays: Two 12V SPST NO relays, 10A @ 24 Vdc or 250 Vac
- Operating Temperature: Sensor -40 to 93°C; Electronic Case 0 to 50°C
- Power Supply: 15 to 24 Vdc, 200 mA
- Dimensions: 89mm x 51mm x 31.8mm (3.5 x 2 x 1.25 inches)
- Weight: 160 g (5.6 oz)
Buy the FST1000 Series Air Velocity Sensor: FST1001A
Secure your FST1000 Series Air Velocity Sensor online today and experience precise airflow measurement with RTD sensing, dual relay alarms, and versatile probe options. Perfect for HVAC, ventilation, research labs, and manufacturing processes, this sensor provides real-time airflow data with adjustable alarm set points from 0 to 100%. The unit includes a durable stainless steel probe, LED indicators, and comes with a comprehensive manual for easy installation. Ensure optimal environmental control and safety by ordering this reliable airflow sensor now.
Order your FST1000 Series FST1001A air velocity sensor today and enhance your airflow monitoring with reliable RTD technology and adjustable alarm set points.
Frequently Asked Questions
Where can I buy OMEGA FST1001A?
You can click on the BUY or RFQ button to purchase FST1001A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FST1001A?
You can download the FST1001A datasheet or visit the OMEGA website for support.
Who is the manufacturer of FST1001A?
OMEGA
