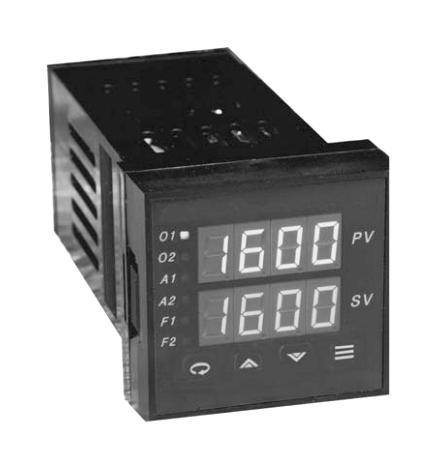

OMEGA CN8201DC1 Process Controller
The CN8200 Series DIN rail temperature and process controllers offer versatile, user-friendly functionality with 8-segment ramp/soak control, universal inputs, and dual digital displays. Designed for precision, they include features like autotuning, user-selectable ramp to setpoint, and optional RS232/485 communications. The controllers feature a NEMA 4X front panel, accept various input types, and have configurable control outputs like relay, 4-20 mA, and SSRs. Power options include 100-250 Vac or 24 Vac, making them suitable for diverse industrial applications and ensuring reliable, accurate process control.
OMEGA CN8201DC1 Process Controller Specifications:
- Accuracy: +0.2% FS, +1 digit
- Setpoint Resolution: 1 count/0.1 count
- Repeatability: +1 count
- Temperature Stability: 5 µV/°C maximum
- Display: Dual LED, 4 digits with process and menu views
- Power Supply: 100-250 Vac, optional 24 Vac/24 Vdc
- Front Panel: NEMA 4X (IP65), 45 mm square cutout
- Dimensions: 53.3 mm H x 53.3 mm W x 8.21 mm D
- Operating Ambient: 0 to 55°C, 90% RH, non-condensing
- Input Types: Thermocouples, RTDs, voltage, current, resistance
- Outputs: Mechanical relay 5 A @120 Vac, 3 A @240 Vac; 4-20 mA, SSR switches
- Control Algorithms: P, PI, PD, PID, or on/off
- Ramp/Soak Intervals: 8 loops, 0-99 events, 0-9999 mins per segment
- Alarms: 1 to 8 configurable alarms, relay or SSR
- Memory: Solid state non-volatile
- Connections: Screw terminals
- Optional Communications: RS232, RS485, MODBUS
- Additional Options: Transducer excitation, remote setpoint input
Buy the Omega Series CN8200 Temperature Process Controller: CN8201DC1
Order the Omega CN8201DC1 online today to ensure accurate temperature and process control with advanced ramp/soak features, universal inputs, and durable NEMA 4X front panel. Designed for industrial environments, this controller offers easy setup, optional digital communications, and reliable relay or analog outputs. Enhance your automation system by purchasing this high-performance control device online and enjoy fast delivery, professional support, and the confidence of Omega's quality and precision in managing your temperature processes.
Buy Omega CN8201DC1 now and experience unmatched reliability, precise ramp/soak control, and versatile inputs for your industrial temperature applications.
Frequently Asked Questions
Where can I buy OMEGA CN8201DC1?
You can click on the BUY or RFQ button to purchase CN8201DC1 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN8201DC1?
You can download the CN8201DC1 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN8201DC1?
OMEGA
