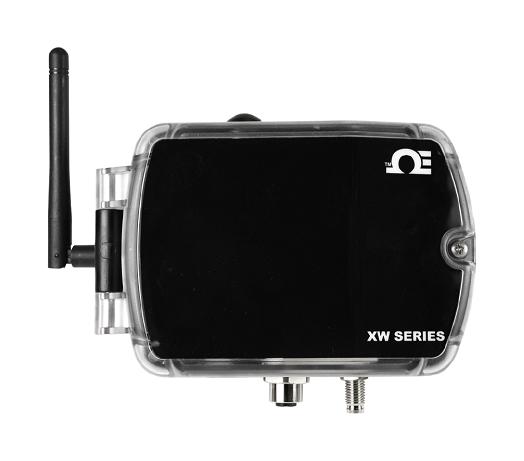

OMEGA XWEDA Wireless Transmitter
The XWEDA wireless transmitter offers industrial-grade long-range wireless communication support with IEEE 802.15.4 standard at 2.4 GHz, transmitting signals up to 1000 meters outdoors and 100 meters indoors. It supports various analog signals including 4-20 mA, 0-10 V, mV, thermocouples, RTDs, and process inputs, making it ideal for demanding industrial environments. Features include rugged weatherproof housing, discrete I/O, data logging up to 4096 readings, and USB configuration, with operation temperatures from 0°C to 40°C and battery life up to 5 years.
OMEGA XWEDA Wireless Transmitter Specifications:
- Wireless Standard: IEEE 802.15.4, DSSS
- Frequency: 2.4 GHz (2400 to 2483.5 MHz), 16 channels
- Network Topology: Star
- Transmit Power: 9.5 dBm
- Receiver Sensitivity: -96 dBm
- Range: Up to 1000 m outdoor, 100 m indoor
- Input Voltage: 5 to 36 Vdc, 24 Vac +10%
- Input Power: 0.8 W maximum
- Battery: Two C-cell 1.5Vdc (included), up to 5 years lifespan
- Back-up Battery: CR2032 for RTC, included
- Operating Temperature: 0 to 40°C
- Enclosure Material: Polycarbonate
- Enclosure Protection: NEMA 4 (IP65)
- Dimensions: 135.9 mm L x 82 mm W x 39 mm D
- Approval: EMC, LVD, RED, ECCN
- Compatible with: SYNC by Omega and OEG
- Supported Sensors: Thermocouple, RTD, digital and process signals
Buy the Omega Series XW-EDA Wireless Transmitter: XWEDA
Purchase the Omega XWEDA wireless transmitter online today to enjoy seamless industrial connectivity with up to 1000 meters range, versatile analog and digital inputs, rugged IP65 rated housing, and a battery lifespan of up to 5 years. Perfect for demanding outdoor and indoor applications, this device ensures reliable data transmission, easy USB setup, and compatibility with various sensors including thermocouples and RTDs, making it a vital component for modern industrial automation and remote monitoring systems.
Buy Omega XW-EDA wireless transmitter now and experience reliable industrial communication with long-range and robust IP65 protection.
Frequently Asked Questions
Where can I buy OMEGA XWEDA?
You can click on the BUY or RFQ button to purchase XWEDA from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part XWEDA?
You can download the XWEDA datasheet or visit the OMEGA website for support.
Who is the manufacturer of XWEDA?
OMEGA
