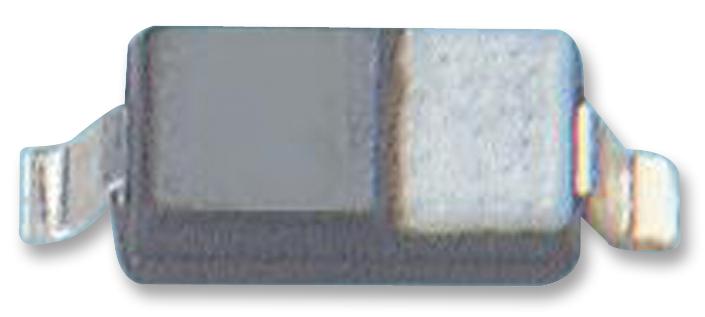

ONSEMI 1N914BWS Small Signal Diode
The ONSEMI 1N914BWS is a versatile small signal diode ideal for various electronic applications requiring fast switching capabilities. Encased in a compact SOD-323F 2L package, it minimizes board space while maintaining excellent performance. This diode is Pb-free and RoHS compliant, aligning with environmental standards. Its fast reverse recovery time and low forward voltage drop contribute to efficient circuit operation. Commonly used in consumer electronics, power supplies, and signal processing circuits, the 1N914BWS offers a reliable and space-saving solution for designers.
ONSEMI 1N914BWS Small Signal Diode Specifications:
- Non−Repetitive Peak Reverse Voltage: 100 V
- Repetitive Peak Reverse Voltage: 75 V
- Repetitive Peak Forward Current: 300 mA
- Continuous Forward Current: 150 mA
- Non−repetitive Peak Forward Surge Current: 1.0 A (Pulse Width = 1.0 s)
- Operating Junction Temperature: +150 °C
- Storage Temperature Range: -55 to +150 °C
- Breakdown Voltage: 75 V (IR= 5 A)
- Reverse Current: 25 nA (VR= 20 V)
- Forward Voltage (1N4448WS / 1N914BWS): 0.62-0.72 V (IF= 5 mA)
- Forward Voltage (1N4148WS): 1 V (IF= 10 mA)
- Diode Capacitance: 4 pF (VR= 0, f = 1.0 MHz)
- Reverse Recovery Time: 4 ns (IF= 10 mA, IR= 60 mA, IRR= 1 mA, RL= 100 Ω)
- Power Dissipation: 200 mW (TC= 25°C)
- Thermal Resistance, Junction−to−Ambient: 500 °C/W
