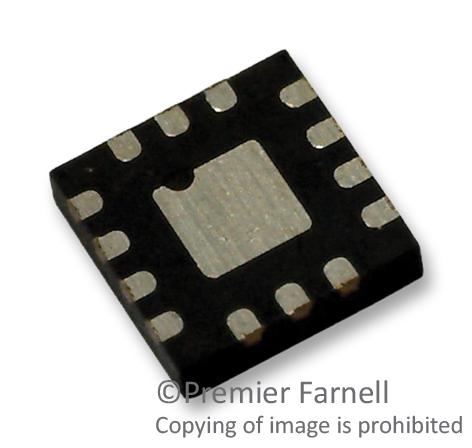

ONSEMI USB1T1103MPX Universal Serial Bus Transceiver
The USB1T1103 is a full-speed USB 2.0 transceiver with integrated 5V to 3.3V voltage regulation, supporting data rates up to 12 Mbps. It complies with USB Specification 2.0, providing differential D+ and D- output with high ESD protection of 15 kV on bus terminals. Designed for portable devices such as PDAs, MP3 players, and digital cameras, it features a compact MLP package with excellent performance in USB communication, monitoring Vbus line, and supporting digital data transmission via robust inputs and outputs.
ONSEMI USB1T1103MPX Universal Serial Bus Transceiver Specifications:
- Supports full speed (12Mbits/s) data rate
- Integrated 5V to 3.3V voltage regulator
- Complies with USB Specification 2.0
- Differential D+ and D- signal transmission with digital inputs/outputs
- High ESD protection: 15kV contact on bus terminals
- Package: MLP14D (14-terminal) or MLP16HB (16-terminal), Pb-Free JEDEC MO-217
- Operating temperature: -40°C to +85°C
- Power supply voltage: 4.0V to 5.5V (Vcc); exceeds USB voltage ranges
- Input impedance: 10 MΩ; Switch resistance: 10Ω
- Propagation delay: approximately 15-18 ns
- Includes Vbus monitoring and supports cable detection
- Small form factor with robust electrical specifications, suitable for portable USB peripheral devices
Buy the Buy ON Semiconductor USB1T1103 Part Number USB1T1103MPX Online
Order the ON Semiconductor USB1T1103MPX now to benefit from reliable full-speed USB 2.0 transceiver technology with integrated voltage regulation, high ESD protection, and compact MLP package. Perfect for portable devices like PDAs, MP3 players, and digital cameras, this device ensures high data integrity and robust electrical performance, supporting 12 Mbps data rates. Purchase online today and enhance your USB device design with proven, premium components that guarantee compatibility, durability, and efficiency.
Buy ON Semiconductor USB1T1103MPX now and experience unmatched reliability and full-speed USB data transfer in portable electronic applications.
Frequently Asked Questions
Where can I buy ONSEMI USB1T1103MPX?
You can click on the BUY or RFQ button to purchase USB1T1103MPX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part USB1T1103MPX?
You can download the USB1T1103MPX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of USB1T1103MPX?
ONSEMI
