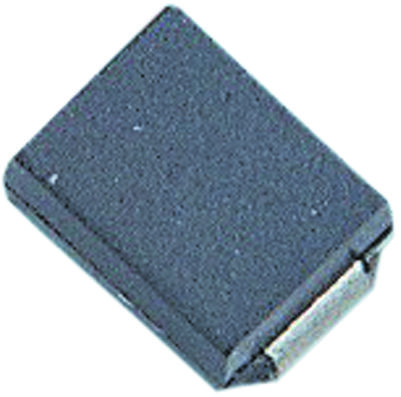

ONSEMI 1SMB5930BT3G Zener Diode
The 1SMB59xxBT3G series surface mount Zener diodes are designed for voltage regulation applications. They feature a void-free, transfer-molded plastic package that is corrosion-resistant, with easily solderable leads. The series covers a Zener voltage range from 3.3V to 200V, and they are rated for ESD protection of Class 3 (>16kV) according to the human body model. The package includes a flat handling surface for precise placement and supports both top slide and bottom mounting on printed circuit boards. These diodes are AEC-Q101 qualified and PPAP capable, with optional lead-free versions suitable for industrial applications.
ONSEMI 1SMB5930BT3G Zener Diode Specifications:
- Case: Void-free, transfer-molded plastic
- Finish: Corrosion resistant, solderable leads
- Maximum Lead Temperature: 260°C for 10 seconds
- Leads: Modified L-bend for better contact
- Polarity: Cathode indicated by polarity band
- Flammability Rating: UL 94 V-0
- Power Dissipation @ T=25°C: 3.0 W
- Derate Above 75°C: 40 mW/°C
- Thermal Resistance Junction-to-Lead: 25 °C/W
- Thermal Resistance Junction-to-Ambient: 226 °C/W
- Operating & Storage Temp: -65°C to +150°C
Buy the ON Semiconductor Series 3W Zener Voltage Regulator Diodes: 1SMB5930BT3G
Purchase the ON Semiconductor Series 3W Zener Diodes online today and benefit from their wide voltage range, high power dissipation, and robust packaging. These surface mount devices provide precise voltage regulation from 3.3V to 200V, featuring corrosion-resistant, transfer-molded plastic cases with solderable leads. Rated for high ESD protection (>16kV), they are ideal for automotive, industrial, and general electronic applications. Order now to ensure your projects incorporate reliable, high-quality Zener diodes with PPAP capability, quick delivery, and excellent performance.
Order your ON Semiconductor Series 3W Zener Diodes today and ensure reliable voltage regulation with high ESD protection for industrial and automotive circuits.
Frequently Asked Questions
Where can I buy ONSEMI 1SMB5930BT3G?
You can click on the BUY or RFQ button to purchase 1SMB5930BT3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 1SMB5930BT3G?
You can download the 1SMB5930BT3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 1SMB5930BT3G?
ONSEMI
